Woods S15CD - Page 57

Parts 57
MAN0506 (Rev. 9/7/2011)
WEASLER
®

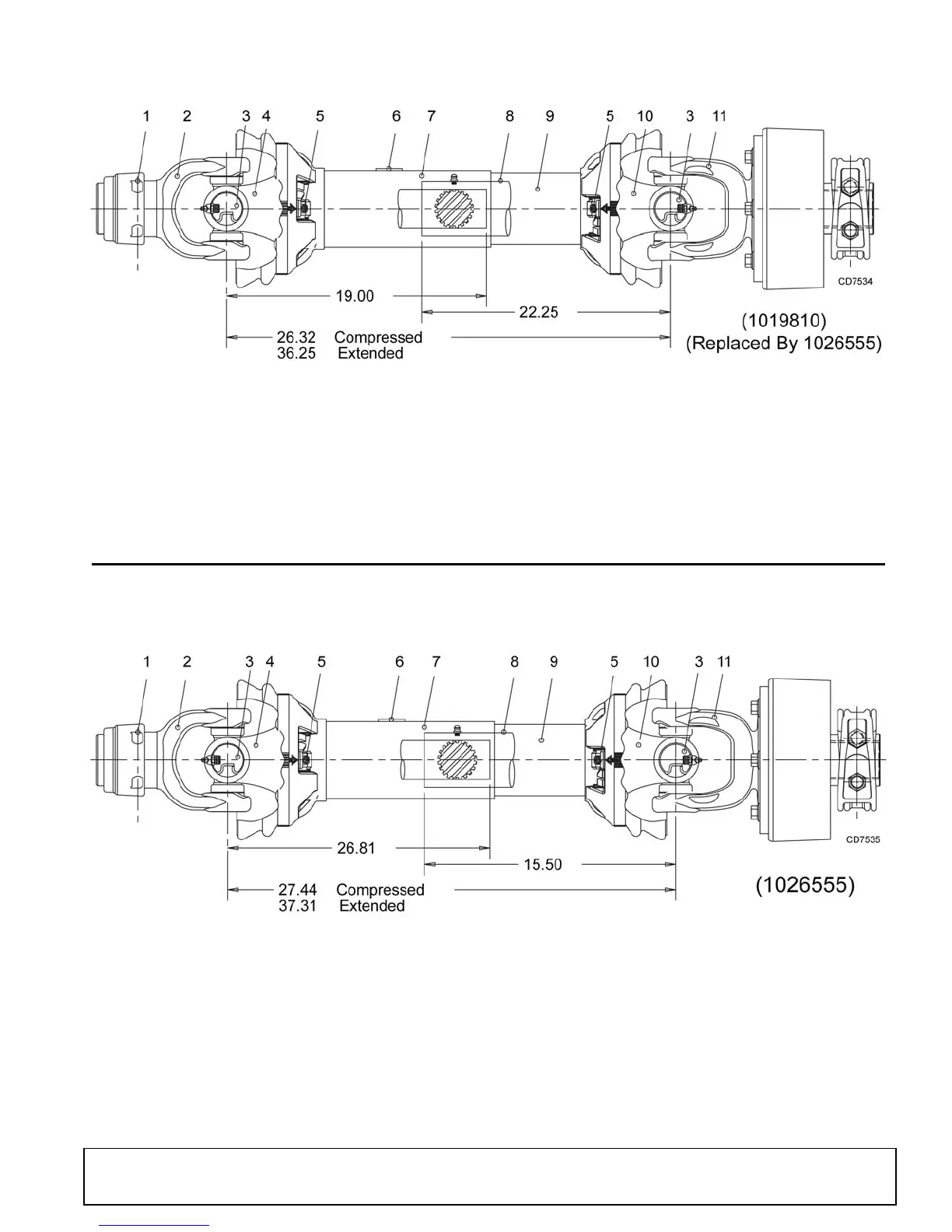

30K 3-POINT PTO SHAFT WITH AUTOMATIC CLUTCH (OPTIONAL)
WEASLER
®
30K 3-POINT PTO SHAFT WITH AUTOMATIC CLUTCH (OPTIONAL)
REF PART QTY DESCRIPTION
A 1019810 - PTO Shaft complete 1-3/4 20-spline
30K 3-point with automatic clutch
1 19837 1 Slide lock repair kit 1.75 ID
2 90317418 1 1-3/4 20-Spline yoke
3 58765 2 U-Joint cross & bearing kit 55E
4 1022637 1 Yoke & shaft, (1.69 - 20 spline)
5 1009065 2 Drive shield bearing kit
REF PART QTY DESCRIPTION
6 90317455 1 Safety sign
7 1022638 1 Outer guard & bearing
8 1022639 1 Inner guard & bearing
9 33347 1 Danger decal, guard missing
10 1022640 1 Yoke, tube & slip sleeve
11 1019811 1 Automatic clutch assembly 30K (see
page 56 for breakdown)
REF PART QTY DESCRIPTION
A 1026555 - PTO Shaft complete 1-3/4 20-spline
30K 3-point with automatic clutch
1 19837 1 Slide lock repair kit 1.75 ID
2 90317418 1 1-3/4 20-Spline yoke
3 58765 2 U-Joint cross & bearing kit 55E
4 90317613 1 Yoke & shaft, 1.69 20-spline, 30.6 long
-OR- -OR-
4 90318183 1 Yoke & shaft, 1.69 20-spline, 26.8 long
5 1009065 2 Drive shield bearing kit
REF PART QTY DESCRIPTION
6 90317455 1 Safety sign
7 1010803 1 Outer guard & bearing
8 1010804 1 Inner guard & bearing
9 33347 1 Danger decal, guard missing
10 90317724 1 Yoke, tube & slip sleeve
11 1019811 1 Automatic clutch assembly 30K (see
page 56 for breakdown)
(Rev. 11/8/2011)
