Woods S15CD - Page 58

58 Parts
MAN0506 (Rev. 9/5/2008)

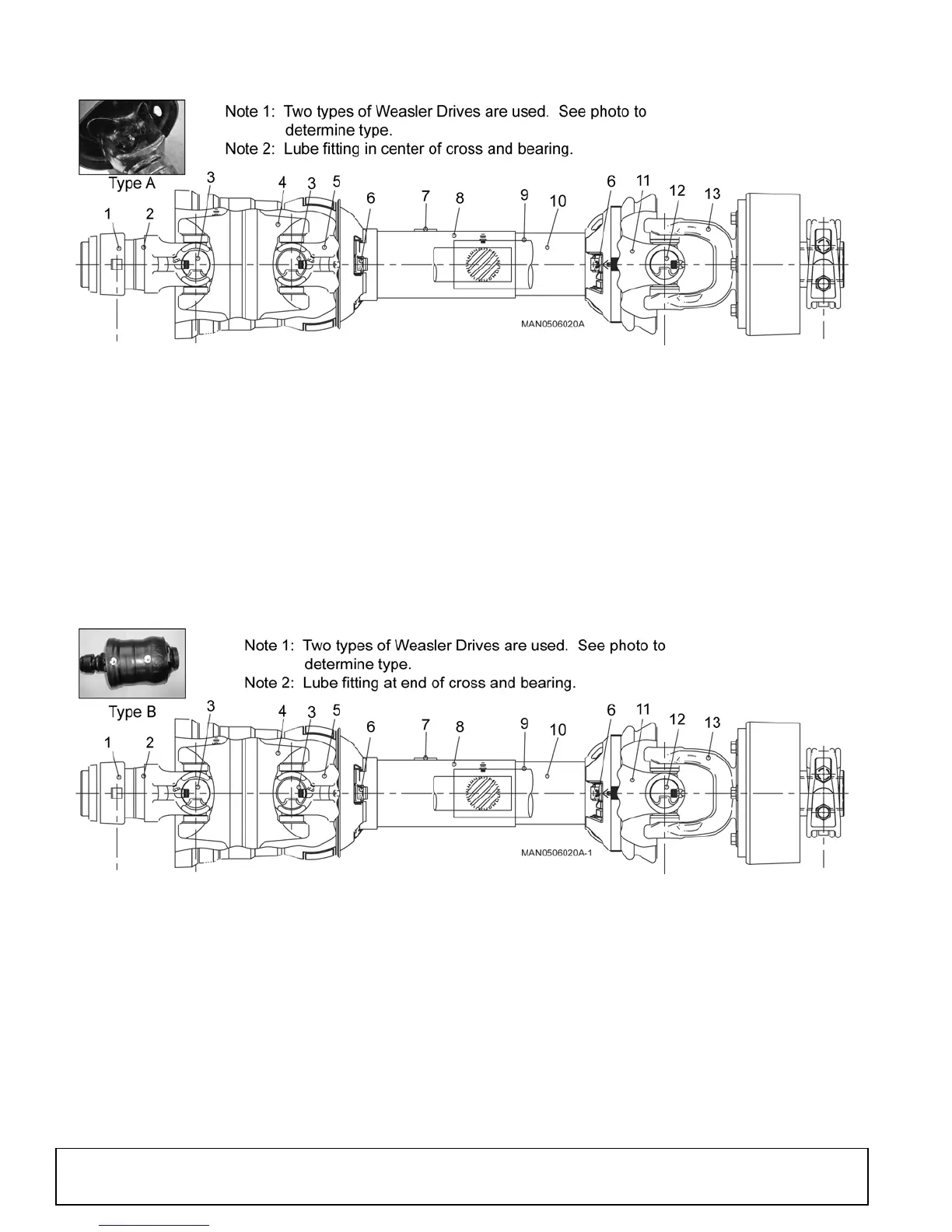

TYPE A - WEASLER
®
30K PULL-TYPE PTO SHAFT WITH AUTOMATIC CLUTCH (OPTIONAL)
TYPE B - WEASLER
®
30K PULL-TYPE PTO SHAFT WITH AUTOMATIC CLUTCH (OPTIONAL)
REF PART QTY DESCRIPTION
A 1019820 - PTO Shaft complete 1-3/4 20-spline
30K pull-type with automatic clutch
1 19837 1 Slide lock repair kit 1.75 ID
2 90318121 1 Slide lock yoke assembly
3 58759 2 CV U-Joint repair kit 55E
4 58760 1 CV Body with fitting
5 1022641 1 Yoke & shaft (1.69 - 20 spline)
6 1009065 2 Drive shield bearing kit
REF PART QTY DESCRIPTION
7 18864 1 Safety sign
8 1022642 1 Outer guard & bearing
9 1022643 1 Inner guard & bearing
10 33347 1 Danger decal, guard missing
11 1022644 1 Yoke, tube & slip sleeve
12 58765 2 U-Joint cross & bearing kit 55E
13 1019811 1 Automatic clutch assembly 30K (see
page 56 for breakdown)
REF PART QTY DESCRIPTION
A 1019820 - PTO Shaft complete 1-3/4 20-spline
30K pull-type with automatic clutch
1 19837 1 Slide lock repair kit 1.75 ID
2 1033105 1 Slide lock yoke assembly
3 1033107 2 CV U-Joint repair kit 55E
4 1033106 1 CV Body with fitting
5 1033109 1 Yoke & shaft (1.69 - 20 spline)
6 1009065 2 Drive shield bearing kit
REF PART QTY DESCRIPTION
7 18864 1 Safety sign
8 1022642 1 Outer guard & bearing
9 1022643 1 Inner guard & bearing
10 33347 1 Danger decal, guard missing
11 1022644 1 Yoke, tube & slip sleeve
12 58765 2 U-Joint cross & bearing kit 55E
13 1019811 1 Automatic clutch assembly 30K (see
page 56 for breakdown)
(Rev 10/13/2010)
