Woods S15CD - Page 59

Parts 59
MAN0506 (Rev. 9/7/2011)

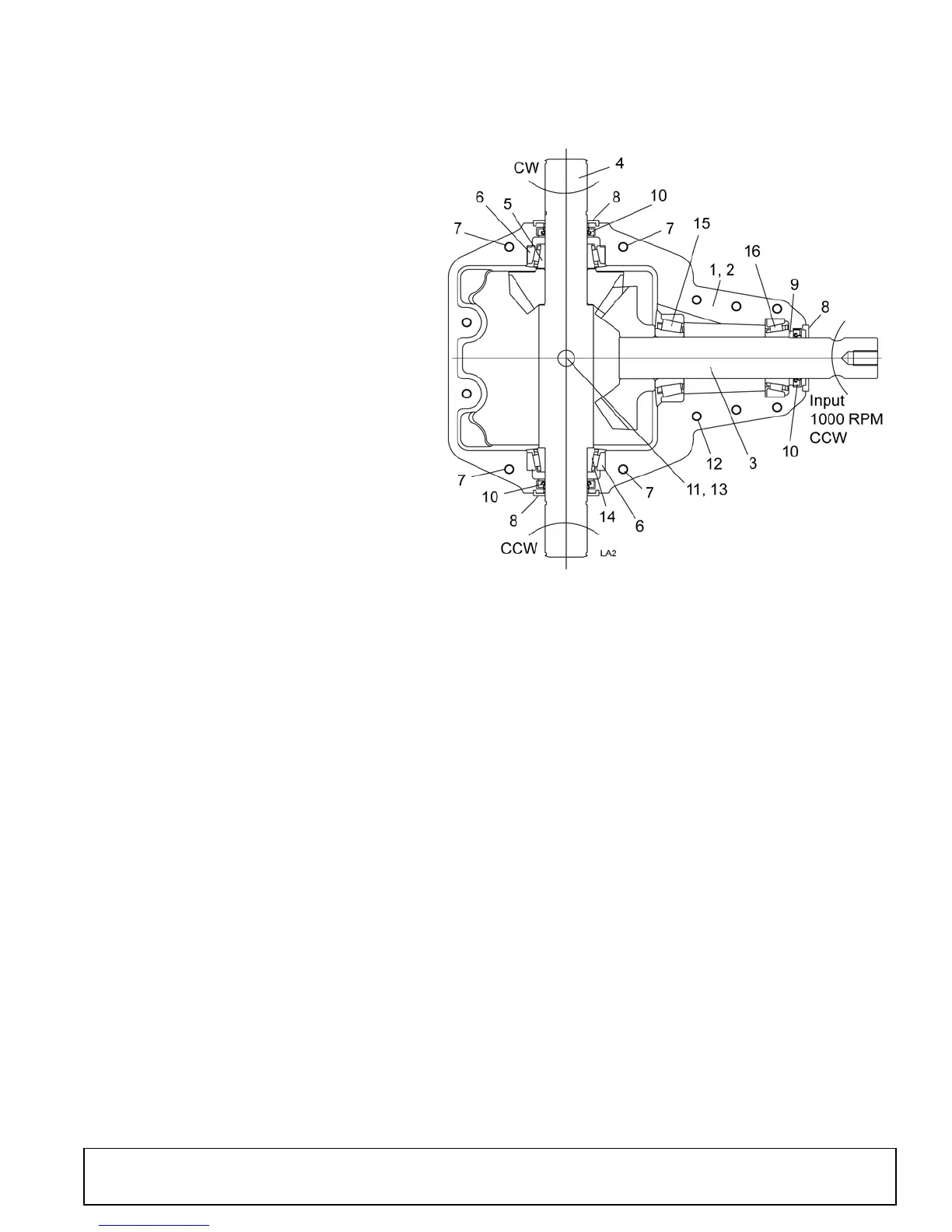

CENTER DRIVE GEARBOX
NOTE: To separate gearbox halves for servicing, seal guards (8) must be removed first otherwise damage to gearbox
housings will occur. Seal guards can be removed by gently prying out of housing with a flat blade screwdriver using the
cutout areas machined in the housing to get behind the guards. Use care not to bend guards during removal so they
can be reused for reassembly. Replace guards if they are damaged.
REF PART QTY DESCRIPTION
A 1013049 1 Complete gearbox, Series 800
1 1019782 1 Casting, Threaded holes
2 1019783 1 Casting, Non-threaded holes
3 1019784 1 Pinion shaft/gear asy 27T with bearing
cones & bearing cups
4 90315546 1 Cross shaft/gear asy 20T
5 90101150 1 Bearing cone
6 90101152 2 Bearing cup
7 1019785 4 Bolt, 3/8-16 x 2.75 SHCS
8 1019787 3 Guard, seal
9 90039030 1 Snap ring 1.750
10 90109125 3 Seal TC-1.750-2.437-.312
11 90503078 2 Plug, 1/2-14 NPT SCHD W/3M
12 90003033 8 Bolt, 3/8-16 x 2.25 SHCS
13 90501159 1 Bushing, 1/2 NPT to 1/8 NPT
14 90101328 1 Bearing cone
15 NSS - Bearing cone (included in item 3)
16 NSS - Bearing cone (included in item 3)
NSS Not Serviced Separately
(Rev. 1/3/2013)
