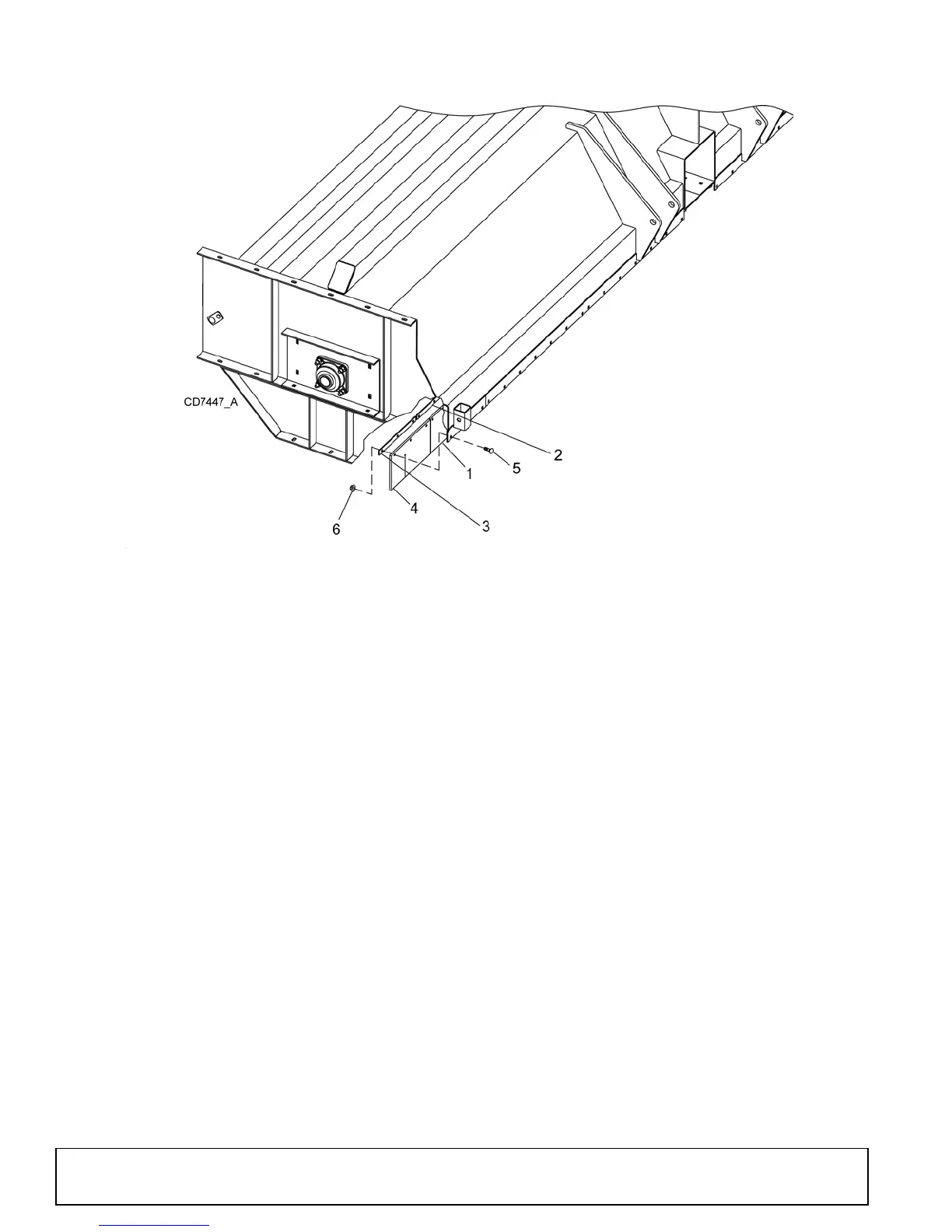

RUBBER BELTING
REF PART QTY DESCRIPTION
1 1012202 4 Rubber belting (15 ft)
1 1012202 6 Rubber belting (20 ft & 22 ft)
1 1012202 8 Rubber belting (25 ft & 27 ft)
2 1022647 4 Belt bar (15ft)
2 1022647 6 Belt bar (20 ft & 22 ft)
2 1022647 8 Belt bar (25 ft & 27 ft)
3 1022649 2 Belt bar (15 ft & 27 ft)
3 1022648 2 Belt bar (20 ft)
3 1022650 2 Belt bar (22 ft)
4 1016188 2 Rubber belting (15 ft & 27 ft)
4 1016195 2 Rubber belting (20 ft)
4 1019763 2 Rubber belting (22 ft)
REF PART QTY DESCRIPTION
5 64824 * 34 3/8 NC x 1-1/2 Carriage bolt (15 ft)
5 64824 * 46 3/8 NC x 1-1/2 Carriage bolt (20 ft)
5 64824 * 50 3/8 NC x 1-1/2 Carriage bolt (22 ft)
5 64824 * 62 3/8 NC x 1-1/2 Carriage bolt (25 ft)
5 64824 * 34 3/8 NC x 1-1/2 Carriage bolt (27 ft)
6 14350 * 34 3/8 NC flange lock nut (15 ft)
6 14350 * 46 3/8 NC flange lock nut (20 ft)
6 14350 * 50 3/8 NC flange lock nut (22 ft)
6 14350 * 26 3/8 NC flange lock nut (25 ft)
6 14350 * 62 3/8 NC flange lock nut (27 ft)
* Standard hardware, obtain locally
