Woods S15CD - Page 61

Parts 61
MAN0506 (Rev. 9/7/2011)

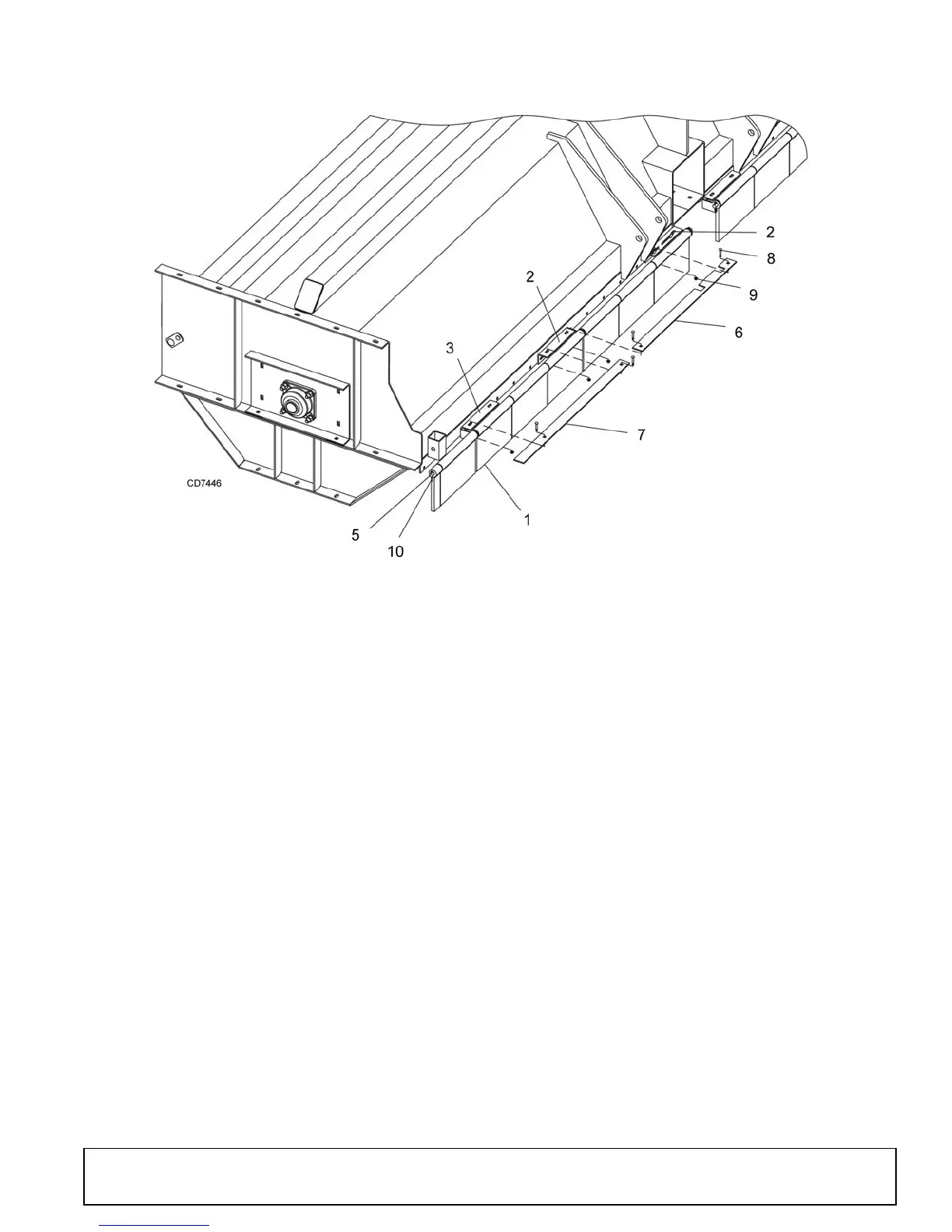

RUBBER FLAP
REF PART QTY DESCRIPTION
1 50531089 14 Rubber flap (12" - 15 ft)
1 50531089 18 Rubber flap (12" - 20 ft)
1 50531089 20 Rubber flap (12" - 22 ft)
1 50531089 24 Rubber flap (12" - 25 ft)
1 50531089 26 Rubber flap (12" - 27 ft)
2 1022659 3 Flap bracket, right (15 ft)
2 1022659 4 Flap bracket, right (20 ft)
2 1022659 5 Flap bracket, right (22 ft & 25 ft)
2 1022659 6 Flap bracket, right (27 ft)
3 1022660 3 Flap bracket, left (15 ft)
3 1022660 4 Flap bracket, left (20 ft)
3 1022660 5 Flap bracket, left (22 ft & 25 ft)
3 1022660 6 Flap bracket, left (27 ft)
4 1022661 2 Rubber flap (2", 15 ft & 27 ft)
4 1022662 2 Rubber flap (8.5", 20 ft & 22 ft)
5 1022654 2 Flap rod (15 ft)
5 1022655 2 Flap rod (20 ft)
REF PART QTY DESCRIPTION
5 1022656 2 Flap rod (22 ft)
5 1022657 2 Flap rod (25 ft)
5 1022658 2 Flap rod (27 ft)
6 1026528 2 Swing flap bar, mast plate (32" all)
7 1026529 2 Swing flap bar (32", 20 ft, 25 ft, 27 ft)
8 15028 * 20 3/8 NC x 1 Carriage bolt (15 ft)
8 15028 * 28 3/8 NC x 1 Carriage bolt (20 ft)
8 15028 * 32 3/8 NC x 1 Carriage bolt (22 ft)
8 15028 * 36 3/8 NC x 1 Carriage bolt (25 ft)
8 15028 * 40 3/8 NC x 1 Carriage bolt (27 ft)
9 14350 * 20 3/8 NC Flange lock nut (15 ft)
9 14350 * 28 3/8 NC Flange lock nut (20 ft)
9 14350 * 32 3/8 NC Flange lock nut (22 ft)
9 14350 * 36 3/8 NC Flange lock nut (25 ft)
9 14350 * 40 3/8 NC Flange lock nut (27 ft)
10 90023043 * 4 3/16 x 1-1/2 cotter pin
* Standard hardware, obtain locally
