30 Service & Maintenance
MAN0943 (11/1/2013)

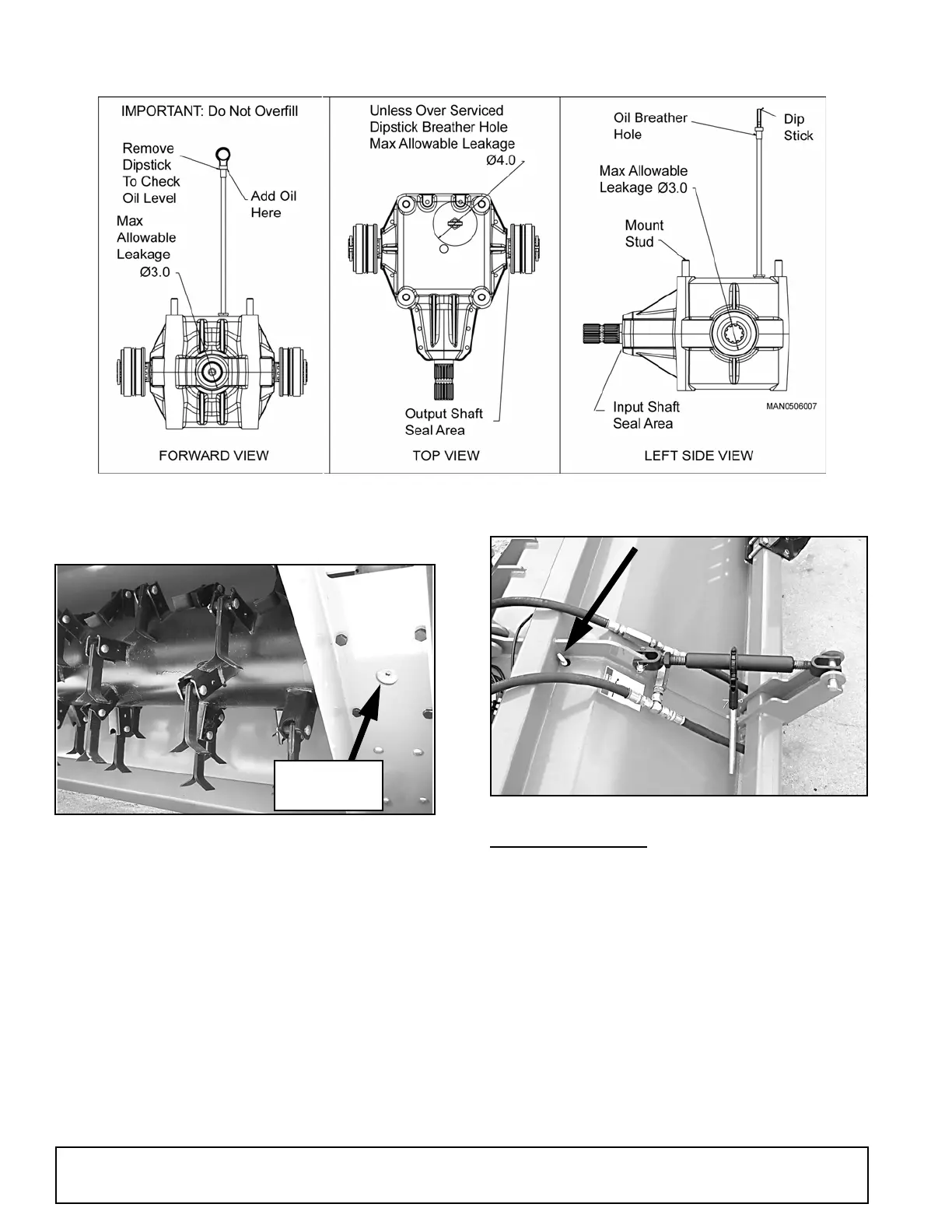

Figure 34. Acceptable Oil Leakage
Figure 35. Drain Plug (Underside of Unit)
7. Re-install and tighten drain plug.
8. Dispose of used oil in an approved container.
9. Add SAE 85W90 gear oil through the dipstick
cover. Use the dipstick to check the oil level (Figure
36) and add oil accordingly.
10. Re-install and tighten fill plug.
11. Reconnect PTO driveline and hydraulic lines.
12. Remove blocks or safety stands.
Figure 36. Dipstick Location
WHEEL SPACING
The wheels can be adjusted for alignment with crop
rows.
1. Clear the area of bystanders, especially children.
2. Shut off tractor, place all controls in neutral, set
parking brake, remove key, and wait for all moving
parts to stop.
3. Use a jack with sufficient capacity to lift the frame.
4. To determine wheel spacing, measure from the
center line of the unit. Mark positions on the frame.
5. Lift frame until wheels have cleared the ground.
6. Place safety stands or large blocks under the
frame.
