Operation 19
MAN0943 (11/1/2013)

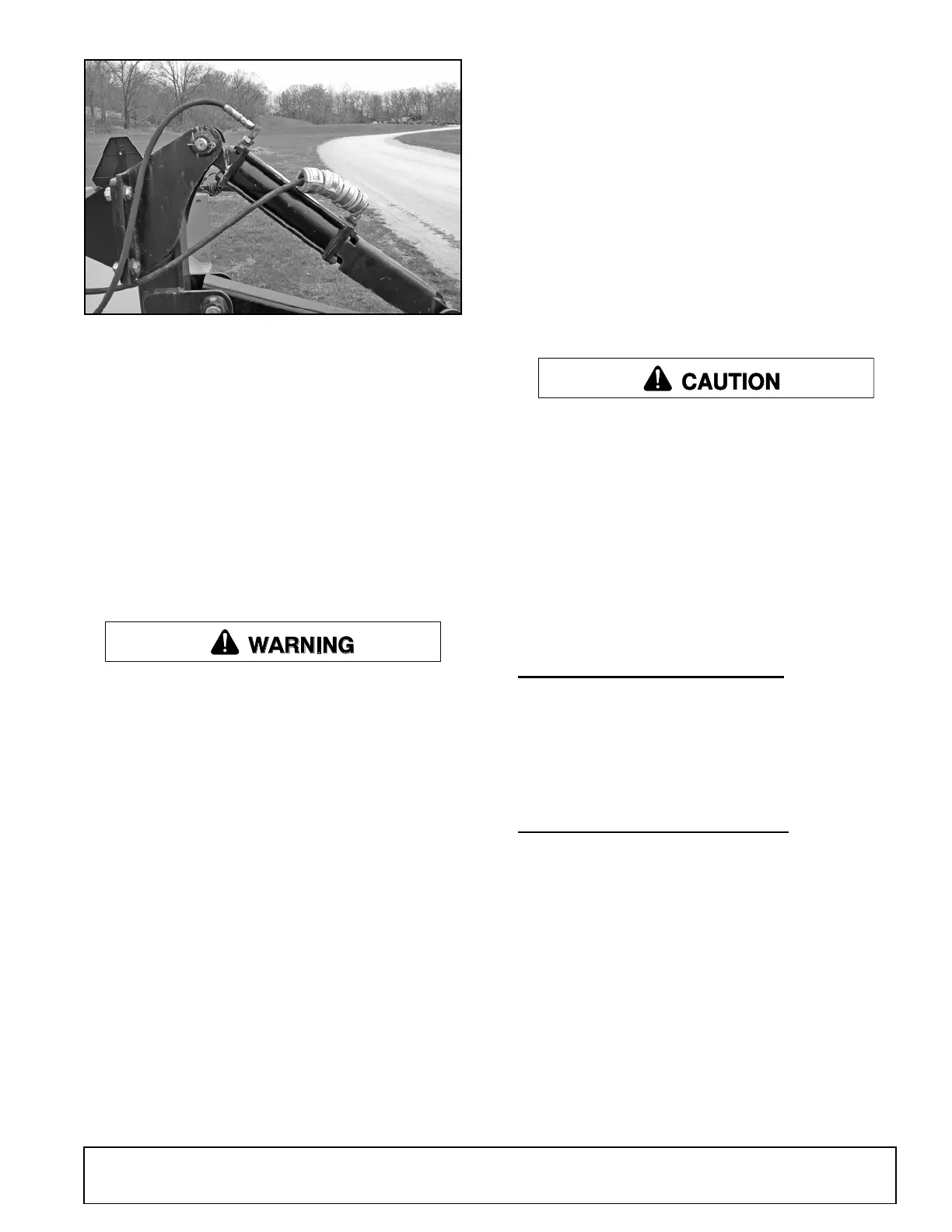

Figure 9. Transport Lock
FIELD OPERATION
The Woods Flail Shredder is designed with the flexibil-
ity to operate well in almost any kind of crop and terrain
conditions. However, the operator is responsible for
being familiar with all operating and safety procedures
and following them. Each operator should review this
Field Operation section at the start of the season and
as often as required to be familiar with the unit.
Operators should also review the PRE-OPERATION
CHECK LIST, page 15, and Attaching Shredder to
Tractor, page 17.
Safety instructions are important! Read all
attachment and power unit manuals; follow all
safety rules and safety decal information. (Replace-
ment manuals and safety decals are available from
your dealer. To locate your nearest dealer, check
the Dealer Locator at www.WoodsEquipment.com,
or in the United States and Canada call 1-800-319-
6637.) Failure to follow instructions or safety rules
can result in serious injury or death.
Never allow children or untrained persons to
operate equipment.
Make sure shields and guards are properly
installed and in good condition. Replace if damaged.
Keep hands, feet, hair, and clothing away from
equipment while engine is running. Stay clear of all
moving parts.
Before dismounting power unit or performing
any service or maintenance, follow these steps:
disengage power to equipment, lower the 3-point
hitch and all raised components to the ground,
operate valve levers to release any hydraulic pres-
sure, set parking brake, stop engine, remove key,
and unfasten seat belt.
Never allow riders on power unit or attachment.
Do not allow bystanders in the area when oper-
ating, attaching, removing, assembling, or servic-
ing equipment.
Inspect and clear area of stones, branches, or
other hard objects that might be thrown, causing
injury or damage.
Operators must be instructed in and be capable
of the safe operation of the equipment, its attach-
ments, and all controls. Do not allow anyone to
operate this equipment without proper instructions.
Keep bystanders away from equipment.
Operate tractor PTO at the rpm speed stated in
“Specifications” section.
Always sit in power unit seat when operating
controls or starting engine. Securely fasten seat
belt, place transmission in neutral, engage brake,
and ensure all other controls are disengaged
before starting power unit engine.
Always comply with all state and local lighting
and marking requirements.
Always wear relatively tight and belted clothing
to avoid getting caught in moving parts. Wear
sturdy, rough-soled work shoes and protective
equipment for eyes, hair, hands, hearing, and head;
and respirator or filter mask where appropriate.
RUBBER FLAPS OR BELTING
All units are equipped with front shield flaps or belting
along the front of the frame. The shield flaps stop or
deflect trash, stones, or other debris picked up by the
flails.
Be sure the shield flaps or belting are in good condition
for operation. Replace if damaged, torn, or missing.
PREPARING FOR OPERATION
1. Pull into the field and position the unit in a level
area.
2. Lower into operating position.
3. Set the 3-point so the quick hitch is vertical and the
floating upper mast is forward.
4. Use stroke control spacer on four cylinders to set
cutting height.
Flail Height
Set the unit to give a flail height of at least 3 to 6
inches (75 to 150 mm) above the ground. This will
minimize the amount of stones and dirt picked up by
the flails under all operating conditions. (See Balance
Statement, page 5.)
