58 Parts
MAN0943 (11/1/2013)
WEASLER
®

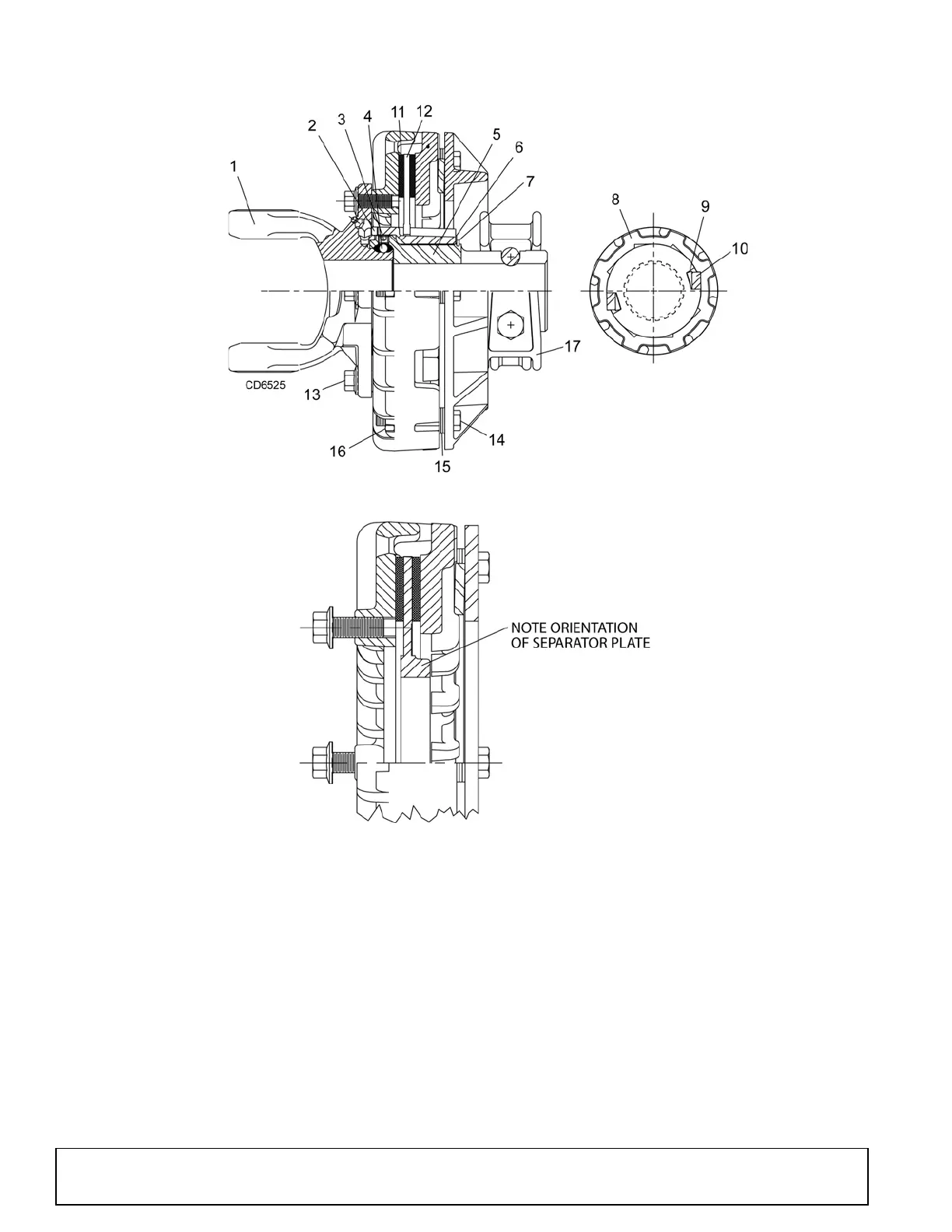

24 K T ORQ MA ST ER C LUT CH AS SEM BL Y
S20CD, S22CD, S25CD, S27CD MODELS
REF PART QTY DESCRIPTION
1 1010831 1 Yoke, Clamp style with overrunning
clutch & hub asy (10 mm bolts)
(includes Items 2 - 10)
1A 1019629 1 Overrunning clutch repair kit
(includes Items 2, 6, 7, 9 & 10)
2 90318165 1 Wave spring
3 90318154 1 Set screw, .312-18 x .25 long
4 90317541 31 Ball, 1/4" dia.
5 1019630 1 OR Inner hub assembly
6 90318167 1 Washer
7 90318168 1 Retaining ring
8 90318169 1 Overrunning hub
9 90318170 1 Leaf spring
10 90318171 1 Overrunning key
REF PART QTY DESCRIPTION
11 90318175 2 Friction disk
12 90318174 1 Separator plate
13 90003055 4 M10 x 1.50 x 25 Serrated
hex head cap screw
14 90003053 6 M8 x 1.25 x 60 Hex bolt, CL 10.9
15 90011236 A/R Washer, 8 mm x 1.6 thick
16 90006548 6 Nut, M8 x 1.25 Hex, ZP
17 1010833 1 Hub clamp asy, 1.75
A 1010833 1 Friction pack, overrunning
(10 mm bolts, 24K)
B 1010805 1 Complete clutch asy, 55 clamp
(10 mm bolts, 24K)
