Externally Switched Solenoid Terminations
Externally switched solenoids are available with the standard leads termination.
They are also available with switch caps and either screw or blade type terminals.
See Figure 3.
1. Pigtail (leaded) termination: designed for leads to be fitted to a connector
2. Switch cap with spade type terminals: designed for harness leads to be
connected without soldering
3. Switch cap with screw type terminals: designed for harness leads to be be
screwed on

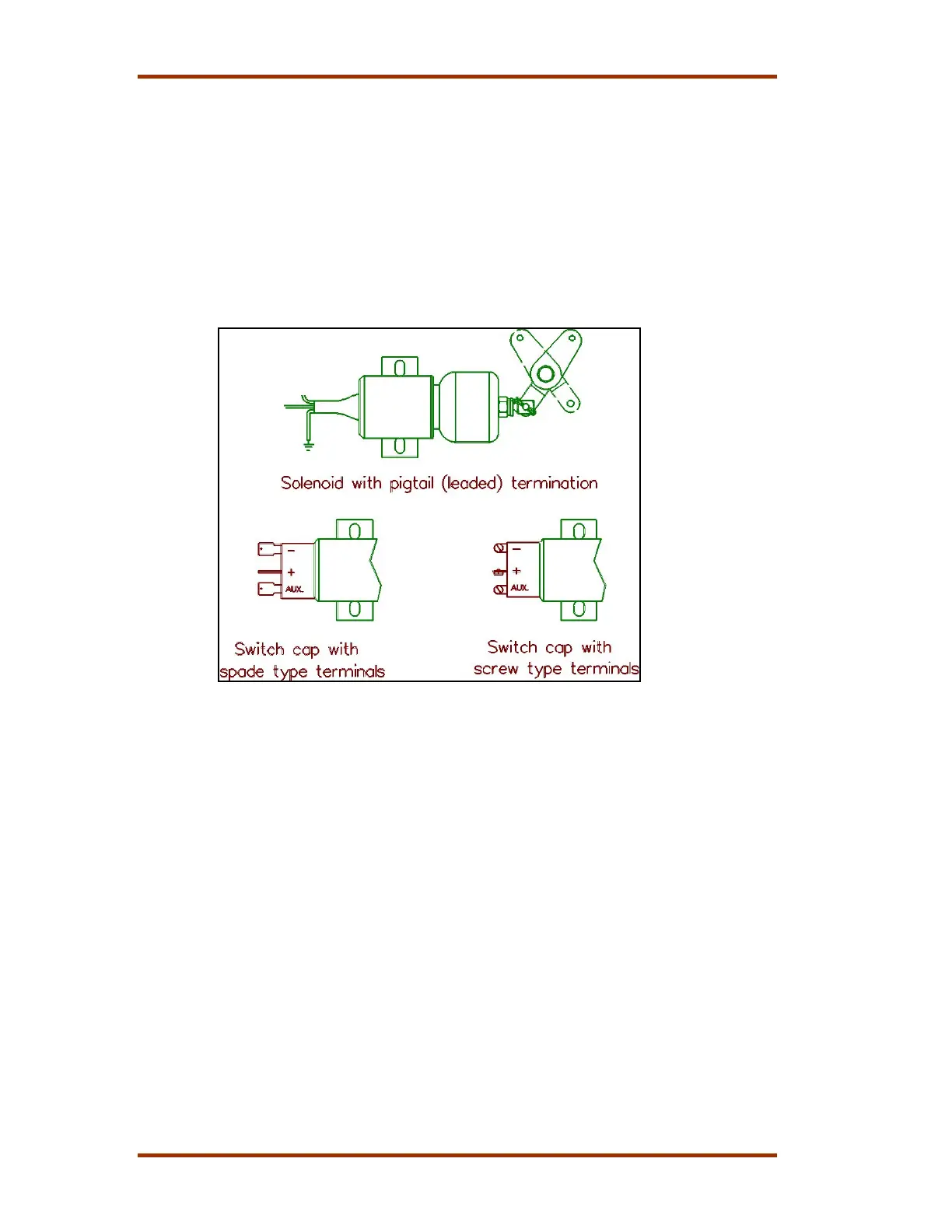

Figure 3. Terminations on Externally Switched Solenoids
