12
USER INSTRUCTIONS
8 716 115 752 (2009/07)
5 USER INSTRUCTIONS

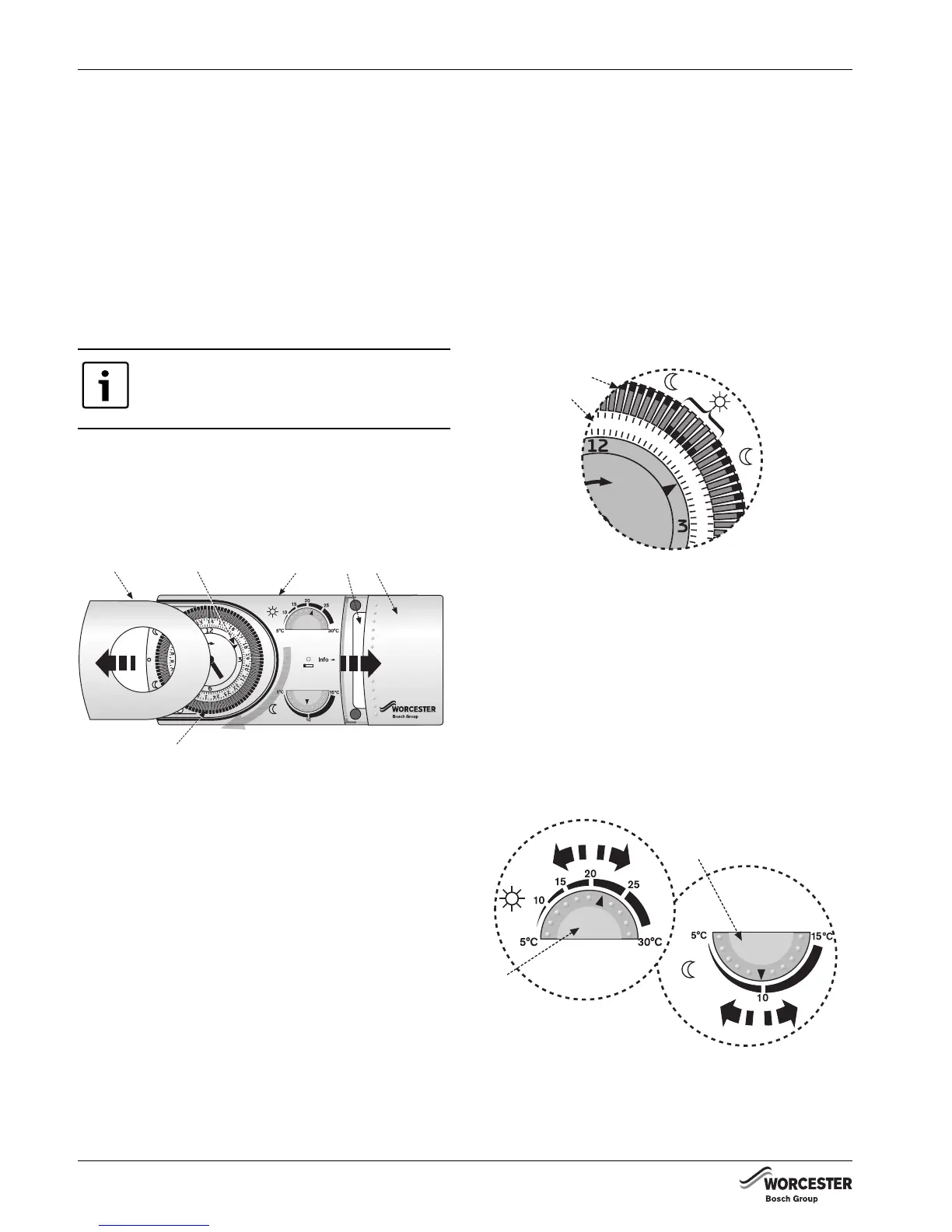

5.1 TRANSMITTER CONTROLS
INFORMATION:
Slide open panel [A] to reveal details of setting
Comfort and Economy [B].
SETTING THE 24 HOUR CLOCK:
1. Slide cover [D] off the Transmitter [C].
2. Rotate outer ring [E] in direction of arrow
(clockwise) until the clock hands and the 24
hour pointer [F] display the correct time.
Fig. 18 Transmitter features
SETTING HEATING TIMES:
3. Using the 1 to 24 hour marks on the outer ring
[G] move the tappets [H - each tappet
represents 15 minutes]:
– in for comfort settings
– out for economy setting
Fig. 19 Setting times
SETTING HEATING TEMPERATURES:
4. Rotate the dials [J] or [K] to set the desired
room temperature:
– 5 - 30 °C for Comfort
– 5 - 15 °C for Economy
Typical Comfort and Economy temperature
settings are shown below.
Fig. 20 Setting temperatures
Frost protection is automatically set at 5 °C.
The unit may be damaged if you
rotate the outer ring anticlockwise.
1
2
Comfort
Economy
Low Batter y
DF
C
B
A
E
8716115752-20.1 Wo
3
G
H
8716115752-21.1 Wo
4
J
K
8716115752-22.1 Wo
