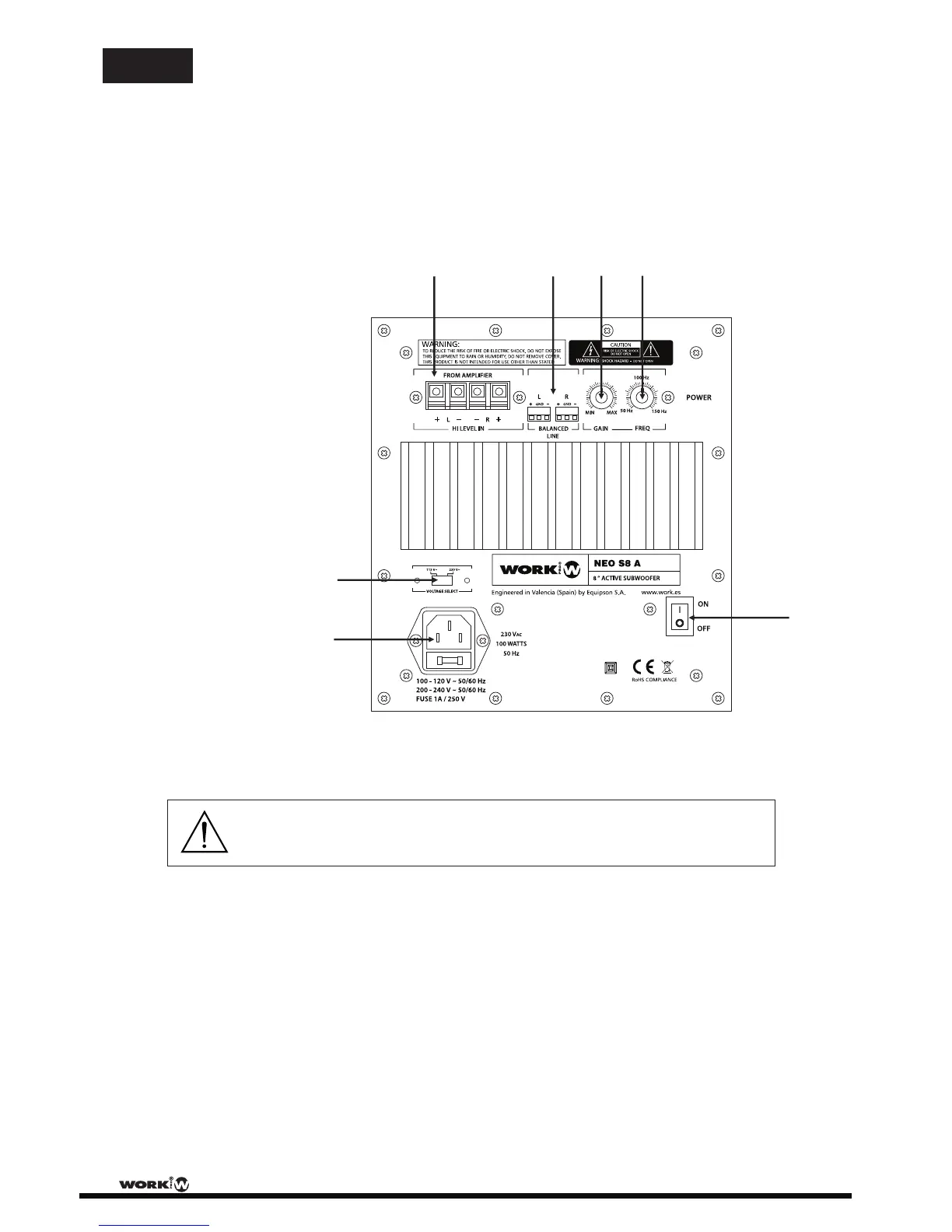

1. HIGH LEVEL INPUT: These terminals for speaker wire, accept a stereo speaker level, full range signal
from a power amplifier. This signal is processed and amplified to power the subwoofer.
2. BALANCED LINE INPUT: These Euroblock 3-pin connectors accept a balanced line full range signal from
pre-amplifier output, mixer, etc. This full range signal is processed and amplified to power the subwoofer.
3. GAIN CONTROL: This rotary control adjusts the level of the subwoofer and is used to balance its volume
with that of the main stereo speakers.
4. SUBWOOFER CROSSFADER: This rotary control adjusts a variable low pass filter to set the upper
frequency (from 50 Hz to 150 Hz) at which the output of the subwoofer begins to roll-off.
5.MAINS SUPPLY: AC 10-120 /220-240V, 50/60Hz, 1A. Connect the included Schucko-IEC cable.
6. POWER SWITCH: This two position switch controls the power status of the subwoofer.
7. MAIN VOLTAGE SELECTOR: Its possible to select the mains input supply ( 115/230 V AC)
NEO S8 A is the perfect complement for the loudspeakers from the NEO S 8A. This self-powered
subwoofer with balanced inputs can be used as an element of decoration in an installation. It can
hung to walls vertically or horizontally.
1
User Manual/Manual de Uso NEO S 8A
EN
WARNING. Please, check the correct cable polarity connecting NEO S 8A
with an external amplifier. If the cable have wrong polarity, it can cause a
shortcircuit and to damage NEO S 8A and the external amplifier.
