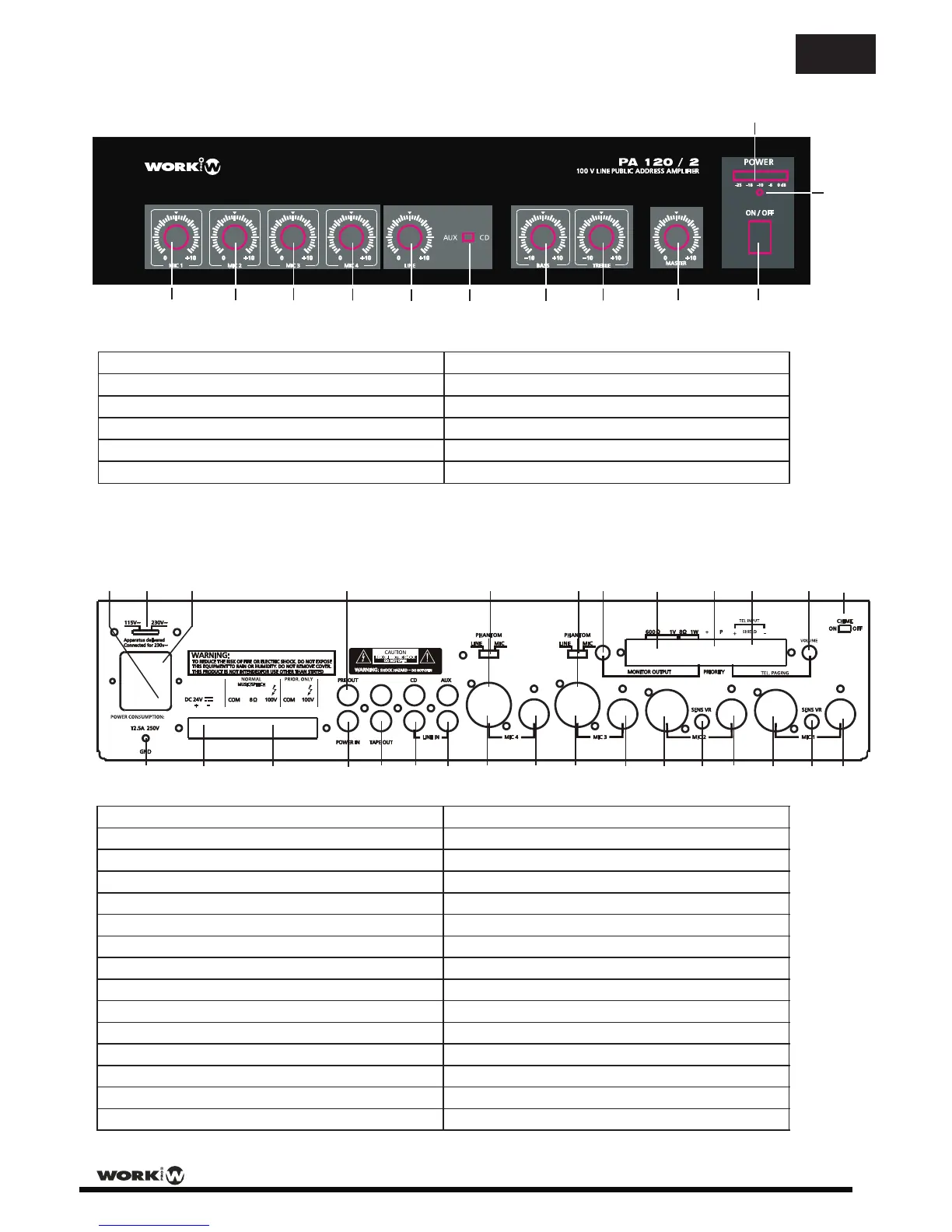

Work Pro PA 120/2 - Front Panel Layout; Front Panel Controls; Rear Panel Layout; Rear Panel Connections and Controls

EN
32
33
31
16
15
35
36
41
17
18
19
20
21
22
23
24
25
27
26
28
29
30
38
40
14
34
37
39
42
14. Earth Connection Screw
17. Power amp input (RCA)
18. Tape output (2 x RCA)
19. CD input (2 x RCA)
20. Aux input (2 x RCA)
21. Input 4 (COMBI(XLR3P-Jack)/balanced)
23. Input 3 (COMBI(XLR3P-Jack)/balanced)
25. Mic 2 input (XLR3P/balanced)
28. Mic 1 input (XLR3P/balanced)
22. Mic 4 input (DIN 5P/balanced)
24. Mic 3 input (DIN 5P/balanced)
27. Mic 2 input (DIN 5P/balanced)
30. Mic 1 input (DIN 5P/balanced)
26. Mic 2 Sensitivity control
29. Mic 1 controlSensitivity
PANEL
7. Master Tone Control (Bass)
1. Mic 1 Volume Control
8. Master Tone Control (Treble)
2. Mic 2 Volume Control
9. Master Volume Control
3. Input 3 Volume Control
4. Input 4 Volume Control
10. Power On / Off switch
5. Line Volume Control
12. Power On / Off Indicator LED
11. Output level indicator LED
15. DC power supply terminals
16. Loudspeaker output terminals
31. AC fuse holder
32. Mains voltage (115/230V) selector switch
33. Mains input socket
35. Mic 4 (Line/Phantom/Mic) selector switch
37. Mic 3 (Line/Phantom/Mic) selector switch
41. TEL/EMER input terminals
42. TEL/EMER input level control
6. Aux/CD Switch
34. Pre output (RCA)
38. Monitor output level control
39. Monitor output terminals
40. Priority switch terminals
36. Chime on/off switch
FRONT PANEL
REAR
8 A
50 Hz
FUSE
360 W
RR
1
2
3
4
5
6
7
8
9
10
11
12
