WD 616D KMT USER MANUAL / MANUAL DE USO PAG. 1
1
Circuit Breaker(X6)
This circuit breaker will cut off power supply automatically when load current exceed 16A
DipSwitches
These switches are used to select initial channel setting mode.
2
Channel Sliders
These sliders are used to control the intensities of channels of 1 to 6.
3
4
Channel LEDs
Show current intensity of the relevant channel numbered from 1 to 6.
DMX LED
5
Power indicator
This indicator is turned on when power is ON
6

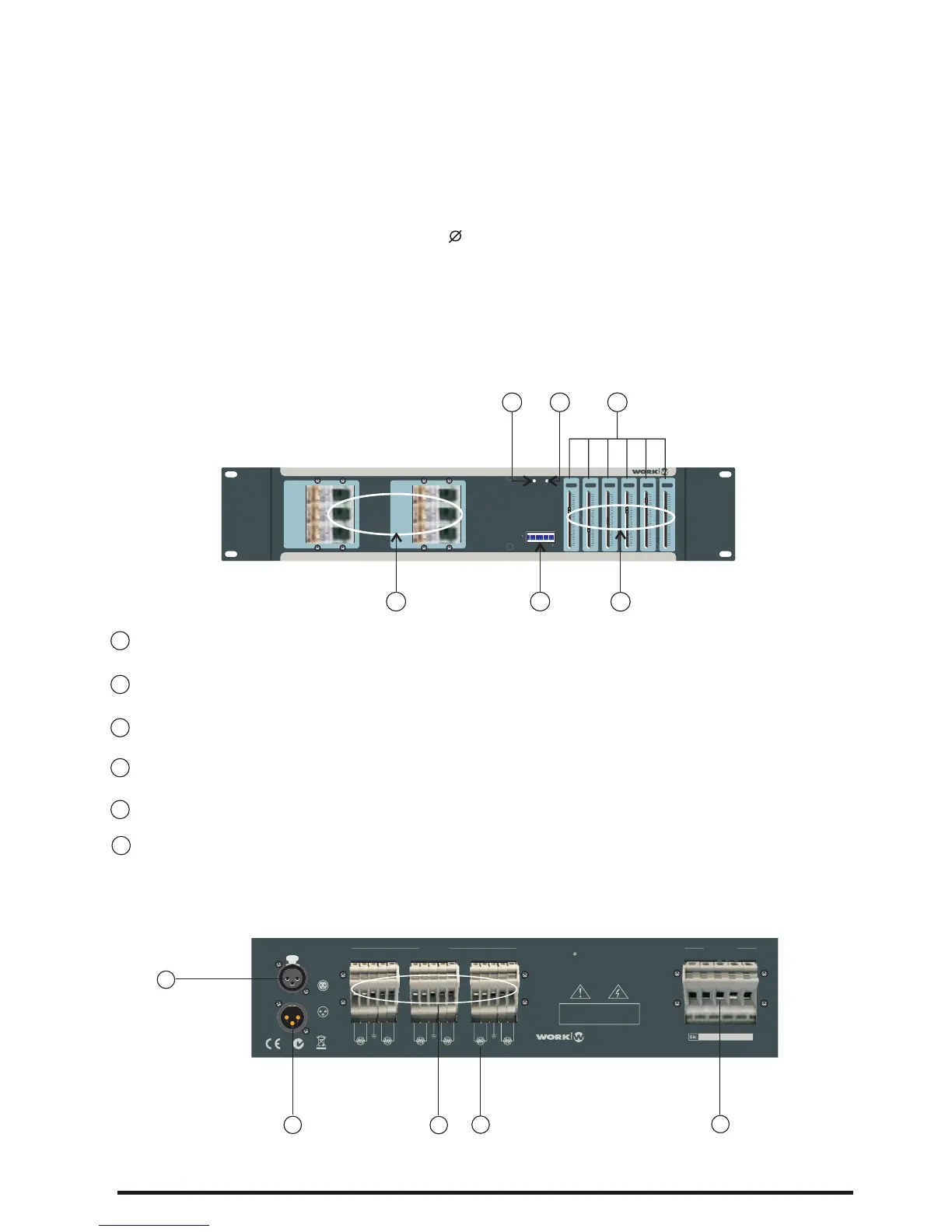

CONTROL & FUNCTIONS
FRONT PANEL
Thanks for your purchasing of our product. The WD-616D-KMT is a 6 channel dimmerpack,
with a variety of functions, including DMX and MANUA control modes, Dimming, overheat
and overload protection, digital dimmer control and DMX 512 address, allowing to simulta-
neously control 6 channel output. In addition, it is compatible with any DMX-512 transmitter.
TECHNICALSPECIFICATIONS
1.Powerinput:
2.Poweroutput:
3.Fuse:
4.Dimensions:
5.Weight:
100-230VAC Single-phase+N+E 50/60Hz,75A max
100-230VAC3 +N+E 50/60Hz,32A per Phase
16A per channel
16A circuit breaker
8.38Kg
483x88x381mm
CH1 CH2 CH3 CH4 CH5 CH6
POWER
DMX
ON
STARTADDRESS
Square,On
Linear,Off
Dimming
Curve
:
10
8
6
4
2
0
10
8
6
4
2
0
10
8
6
4
2
0
10
8
6
4
2
0
10
8
6
4
2
0
10
8
6
4
2
0
CH2 CH5
CH3 CH6
CH1 CH4
SERIES 2
WD-616D KMT
109876
5
4
3
21
MDON
5
1
2
3
4
6
REAR PANEL
PUSH
PUSH
PUSH
DMXOUT
E
LO D
CH5
ALO D
CH6
A
OUTPUT
E
LO D
CH3
A
LO D
CH4
A
E
LO D
CH1
ALO D
CH2
A
E N
5
6
N E N
3
4
N E N
12
N
CAUTION
RISKOFELECTRICALSHOCK
DONOTOPEN
DMXIN
1=Ground
2=Data-
3=Data+
POWERIN
L3
L2 L1
NE
WD-616D KMT
POWERIN:
100-230VAC3 +N+E 50/60Hz,32AperPhase
100-230VACSinglePhase+N+E50/60Hz,75Amax.
OUTPUT:16Aperchannel
1
2
5
3
4
