Operating Instructions–VAG 1761/1
Compressed air gun
For processing Spray-on seam sealant D 476 KD7 A3 and other 310 ml cartridges

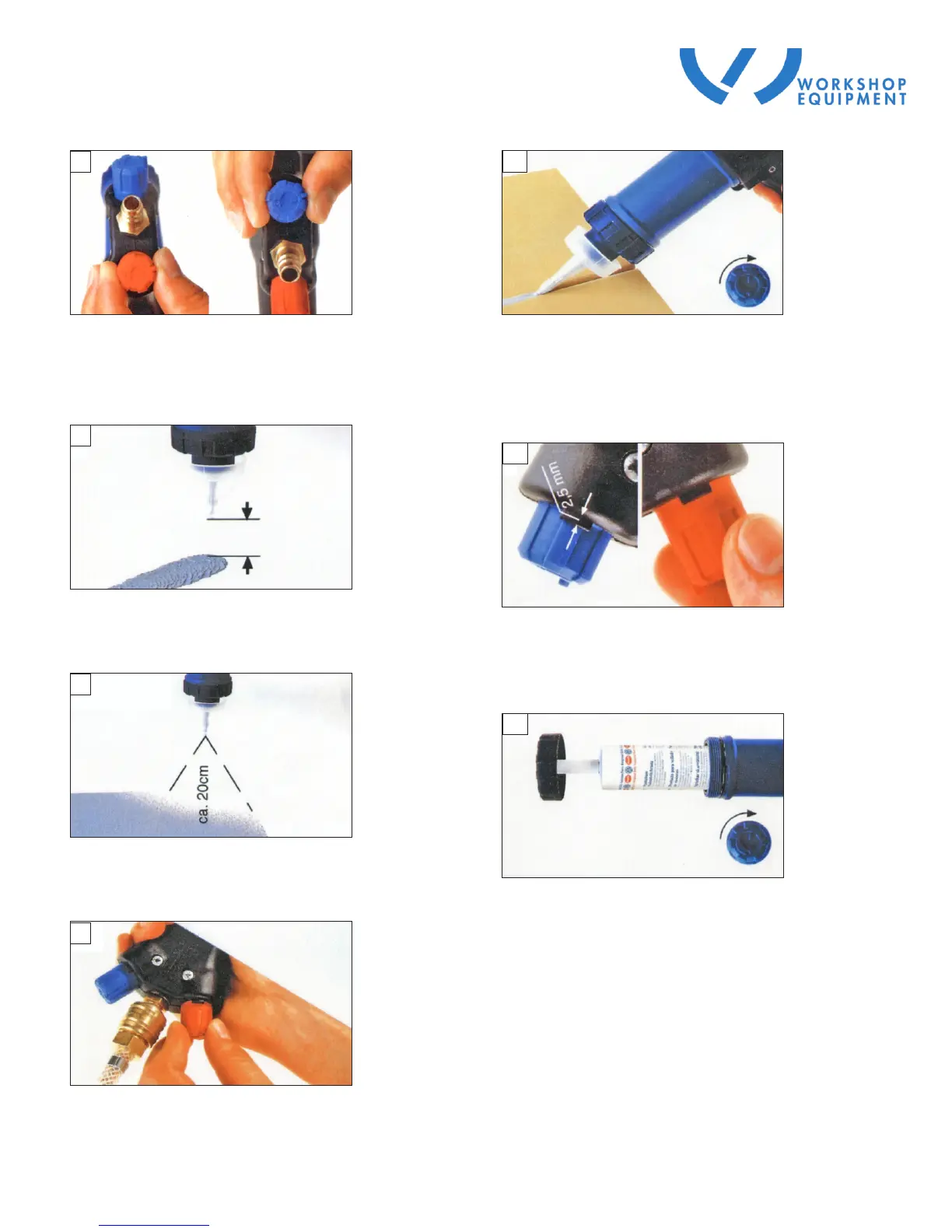

6. Spray function
The gun sprays when both adjusting screws are open.
Red adjusting screw = Turn screw completely towards (+)
Blue adjusting screw = Turn screw completely towards (+)
7. Seam sealant
The jet is guided vertically with a separation of
approx. 4 cm and at a right angle to the seam.
8. Coating
The jet is guided vertically with a separation of
appro
x. 20
cm
and at a right angle to the sur
face.
9. Fine spraying
The flow of material must be reduced for coating large
areas with a fine coat.
Red adjusting screw = Turn screw completely towards ( – )
10. Applying beading without spraying
The spray air is to be turned off if a bead of material
needs to be applied.
Close blue adjusting screw!
Turn screw towards ( – ) to stop.
11. Reducing flow of material
The flow of material can be reduced using the red adjusting
screw.
Red adjusting screw = Turn screw towards ( – )
12. How can the position of the adjusting screw be
recognized?
Black studs with a height of 2.5 mm, corresponding
exactly to the height of one thread, are molded on the
shells of the handle.
• The grooves of the adjusting screws indicate the position.
• When the screw is open, the groove sits above the stud.
• When the screw is closed, the groove sits below the stud.
13. Multi-functional application
Conventional 310 ml car
tridges can be tensioned using
the black DK union nut.
The blue adjusting screw remains closed when processing.
The red adjusting scre
w regulates t
he flo
w of material.
(continued on next page)
6
9
10
11
12
7
8
ca. 4cm
