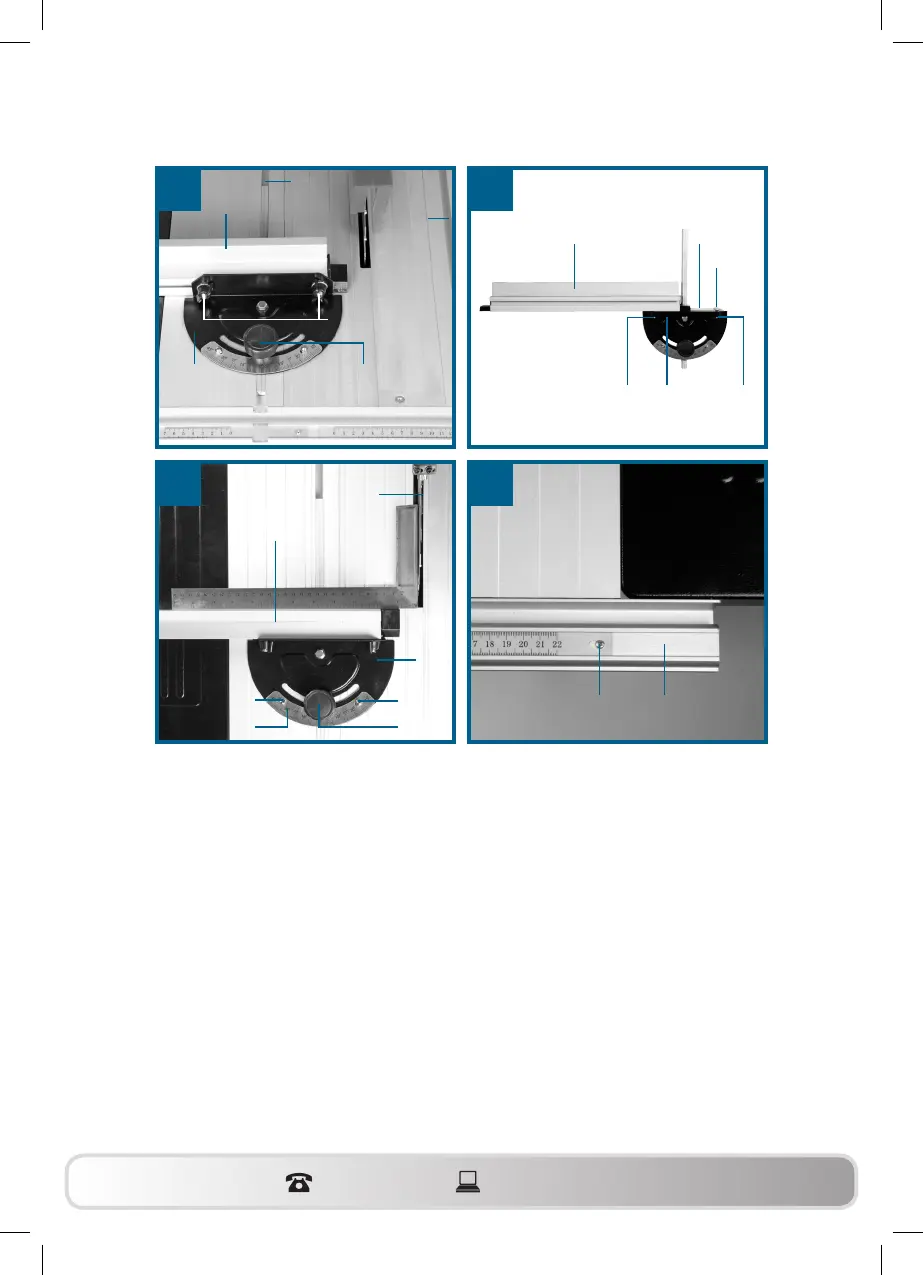

6.8 Adjusting the scale on the saw table (Fig. 28; 34)
• Ensure that the parallel stop (7) is in line with the saw blade (5) (refer
to point 6.5).
• Set the parallel stop (7) so that it touches the saw blade (setting for
thick material refer to point 6.4).
• Undo the screw (q) holding the scale (j/k) to the chain bar (12) by
approximately 2 turns.
• Set the scale (j/k) so that the line in the inspection window (I) of the
parallel stop (7) aligns with the zero line of the scale (j).
• Retighten the screw (q).
