CS200 Control Systems
44
Replacement Parts
Controller Assembly

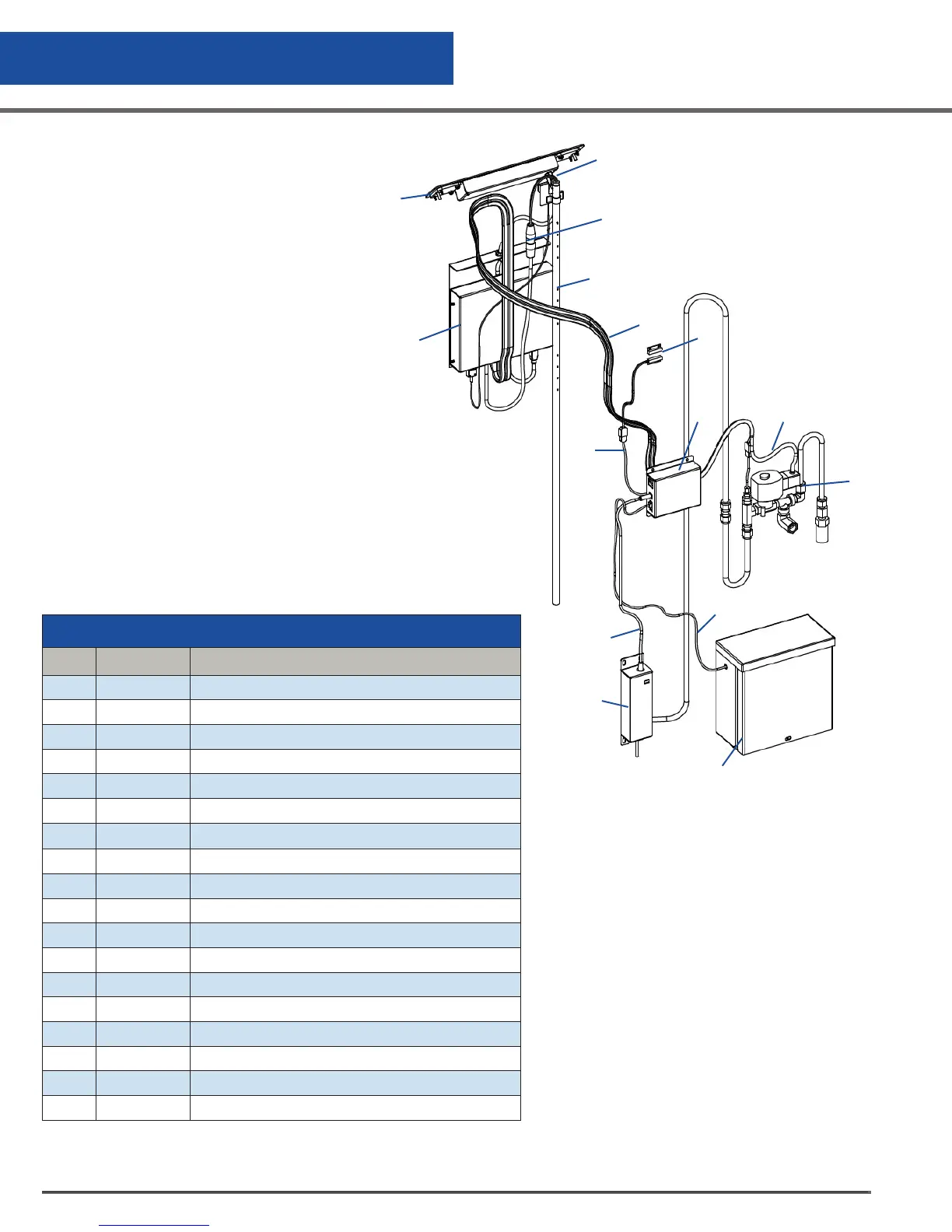

Figure 16.4 K Series Controller
Assembly Parts
1
2
3
4
5
6
(2x) Connect (ITEM 7)
and (ITEM 8)
Sensor Tube
7
8, 9, 10
11, 12, 13
14
15
16
17
Controller Assembly Parts
Item Part No. Description
1 366903 Plumbing Assembly, CS200 Controller
2 367909 Solenoid Valve Harness, K-CS-Series, 36”
3 367823 12 VDC Transformer No Plug
4 367824 Transformer Cover, LABS CS
5 367913 Junction Box, With No T Plate, CS200
6 367908 Controller Module, 10K/24K CS200
7 367911 Harness Assembly 10K-CS, 74” Cable
367912 Harness Assembly 24K-CS, 104” Cable
8 367788 Level Sensor, 8-Thermistor CS200 Control
9 366891 Thermocouple Assembly
10 367859 Plug, Sensor Tube
11 367907 CS200 Display Module With Mounting Wings
12 367509 Display Module, Bezel
13 367205 Screw, Flat HD, 8-32 UNC X 3/4” LG
14 367795 Lid Switch Assembly
15 367796 Lid Switch Extension Wire
16 367910 Battery Extension Wire
17 367793 Battery
