EN
2 in 1: Portable Power
Cleaner/Water Sprayer
12

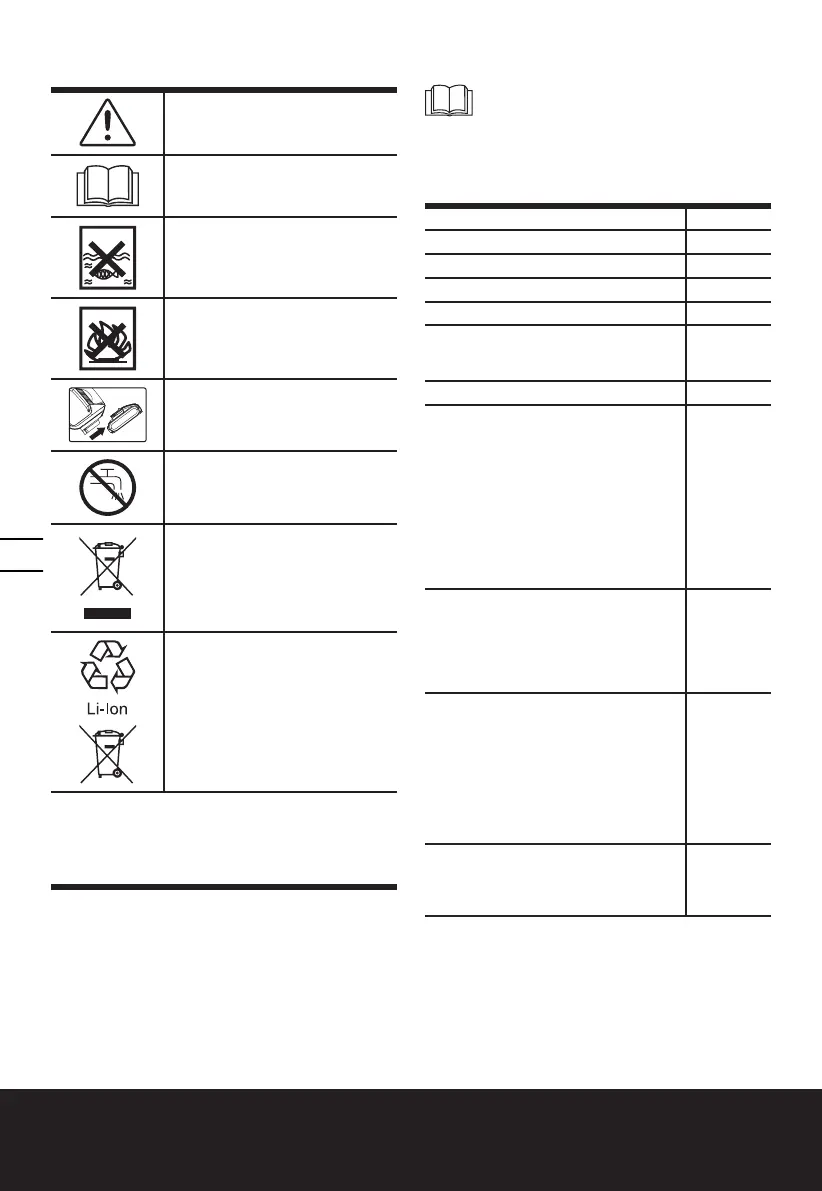

SYMBOLS
Warning
Read operator’s manual
Do not expose to rain or water
Do not burn
Remove battery from the socket
before carrying out any adjust-
ment, servicing or maintenance.
Machine not suitable for
connection to the potable water
mains.
Waste electrical products
must not be disposed of with
household waste. Please recycle
where facilities exist. Check with
your local authorities or retailer
for recycling advice.
Do not dispose of batteries.
Return exhausted batteries to
your local collection or recycling
point.
xINR18/65-y:
Cylindrical lithium Ion battery
cells with max diameter of 18mm and max height
of 65mm; “x” represents a number cells serial
connected, blank if 1; “-y” represents a number of
cells paralleled connected, blank if 1.
OPERATING INSTRUCTIONS
NOTE: Before using the tool, read the
instruction book carefully.
INTENDED USE
This tool is intended for cleaning and watering.
ASSEMBLY & OPERATION
ACTION FIGURE
BEFORE OPERATION
Installing the battery pack See Fig. A1
Removing the battery pack See Fig. A2
Checking the battery condition See Fig. A3
Charging the battery pack
More details can be found in chargers
manual
See Fig. A4
ASSEMBLY
NOTE: The power nozzle has two
working modes: short lance only and
short lance used together with
extension lance.
Working mode 1
Attaching short lance to the power nozzle
NOTE: When attaching, align the
two projections on the lance with the
grooves of the power nozzle as shown
in Fig. B.
See Fig. B
Attaching the Multi-spray nozzle
NOTE: When attaching, rotating the
nozzle left and right to make sure the
nozzle fully seated into position and
gently pulling it to make sure it is
locked into position securely.
See Fig. C
Working mode 2
Attaching extension lance to the power
nozzle
Attaching short lance to the extension
lance
NOTE: When attaching, align the
two projections on the lance with the
grooves of the power nozzle as shown
in Fig. D, E.
See Fig.
D, E
Attaching the hose to the power nozzle
NOTE: After the hose is attached, check
the connection by gently pulling upon
the hose. It should not be pulled off.
See Fig.
F1, F2
