Angle grinder EN
12
SYMBOLS OpERATION INSTRUCTIONS
NOTE: Before using the tool, read the
instruction book carefully.
INTENDED USE
The machine is intended for cutting,
roughing and brushing metal and stone
materials without using water. For cutting
metal, a special protection guard for cutting
(accessory) must be used.
1. INSTALLING AUXILIARY HANDLE (See
Fig. A)
You have the option of two working positions
to provide the safest and most comfortable
control of your angle grinder. The handle is
screwed clockwise into either hole on the
sides of the gear case.
2. HAND GRIP AREAS
Always hold your angle grinder firmly with
both hands when operating.
3. GUARD ADJUSTMENT (See Fig. B, C)
Before any work on the machine itself,
pull the mains plug.
For work with grinding or cutting discs,
the wheel guard must be mounted.
Wheel Guard for Grinding
The coded projection on the wheel guard (5)
ensures that only a guard that fits the machine
type can be mounted.
Open the clamping lever. Place the wheel
guard (5) with coded projection into the coded
groove on the spindle of the machine head
and rotate to the required position (working
position).
To fasten the wheel guard (5), close the
clamping lever.
The closed side of the wheel guard (5) must
always point to the operator.
NOTE: With the clamping lever open the
clamp adjusting nut can be adjusted to ensure
the guard is securely clamped after the
clamping lever is finally closed.
Wheel guard for cutting
WARNING! For cutting metal,
always work with the wheel guard for
cutting(10).
The wheel guard for cutting (10) is mounted
To reduce the risk of injury, user
must read instruction manual

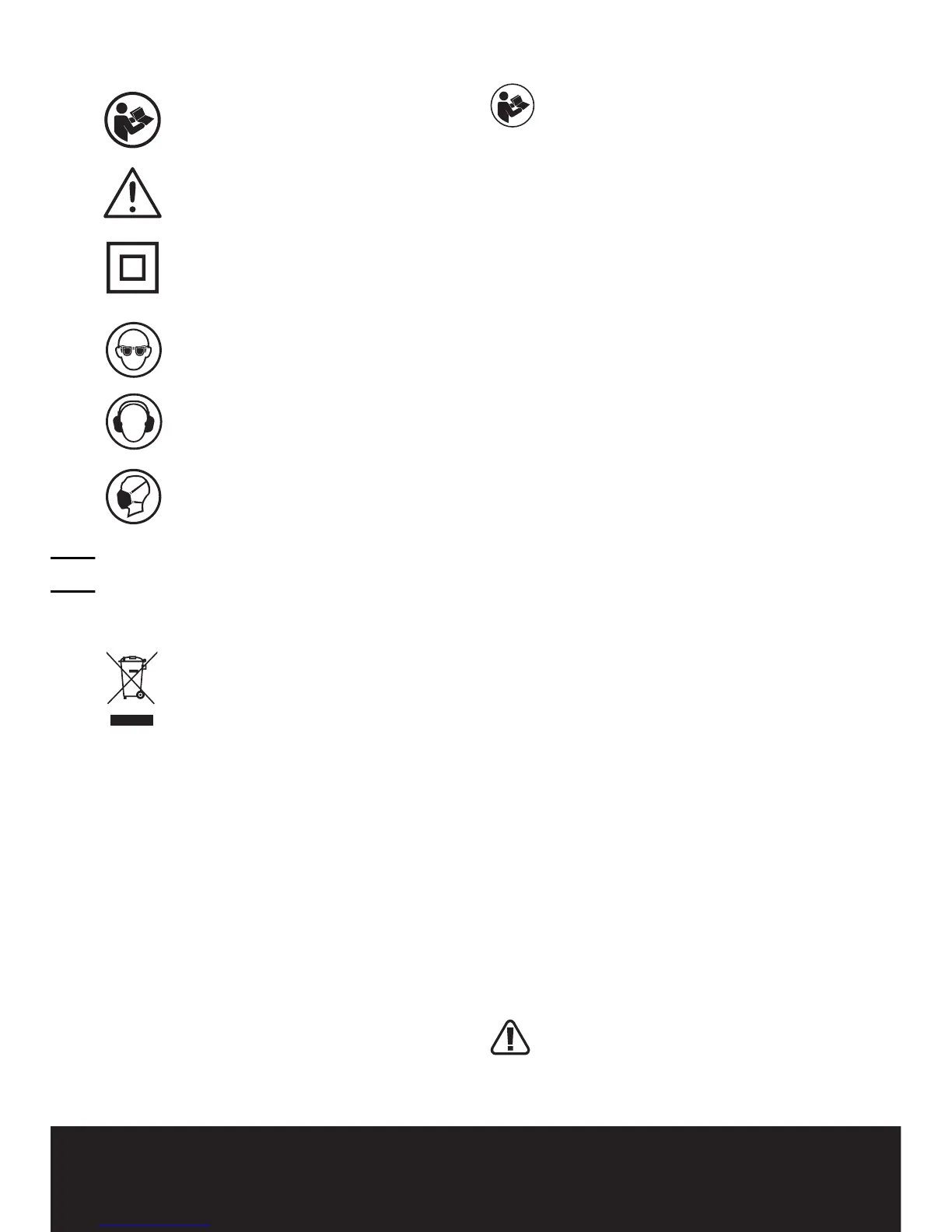

Warning
Double insulation
Wear eye protection
Wear ear protection
Wear dust mask
This product has been marked
with a symbol relating to removing
electric and electronic waste. This
means that this product shall not
be discarded with household waste
but that it shall be returned to a
collection system which conforms
to the European Directive 2002/96/
CE. It will then be recycled or
dismantled in order to reduce the
impact on the environment. Electric
and electronic equipment can be
hazardous for the environment
and for human health since they
contain hazardous substances.
