RCK54-75B'
RCK54/60-24B'
RCK60/RC72-27B WSM, 17031
GENERAL

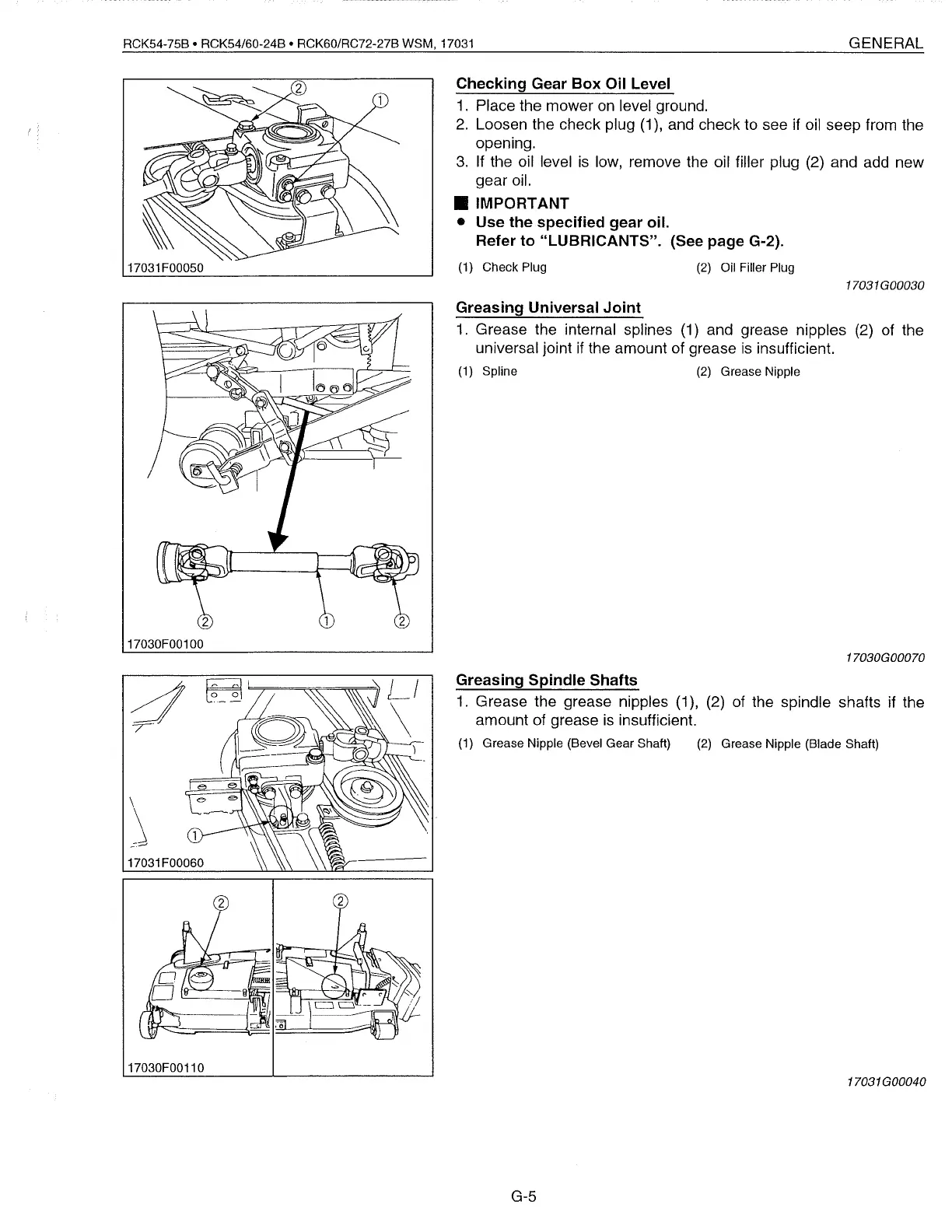

Checking Gear Box Oil Level
1.
Place the mower
on
level ground.
2.
Loosen the check plug
(1),
and check to see
if
oil seep from the
opening.
3.
If
the oil level
is
low, remove the oil filler plug
(2)
and add new
gear oil.
• IMPORTANT
• Use the specified gear oil.
Refer to "LUBRICANTS". (See page G-2).
17031 F00050
(1)
Check Plug
(2)
Oil Filler Plug
17031G00030
17031F00060
17030F00100
17030F00110
Greasing Universal Joint
1.
Grease the internal splines
(1)
and grease nipples
(2)
of
the
universal joint
if
the amount of grease
is
insufficient.
(1)
Spline
(2)
Grease Nipple
17030G00070
Greasing Spindle Shafts
1.
Grease the grease nipples (1),
(2)
of
the spindle shafts if the
amount of grease
is
insufficient.
(1)
Grease Nipple (Bevel Gear Shaft)
(2)
Grease Nipple (Blade Shaft)
17031G00040
G-5
To Next Page
