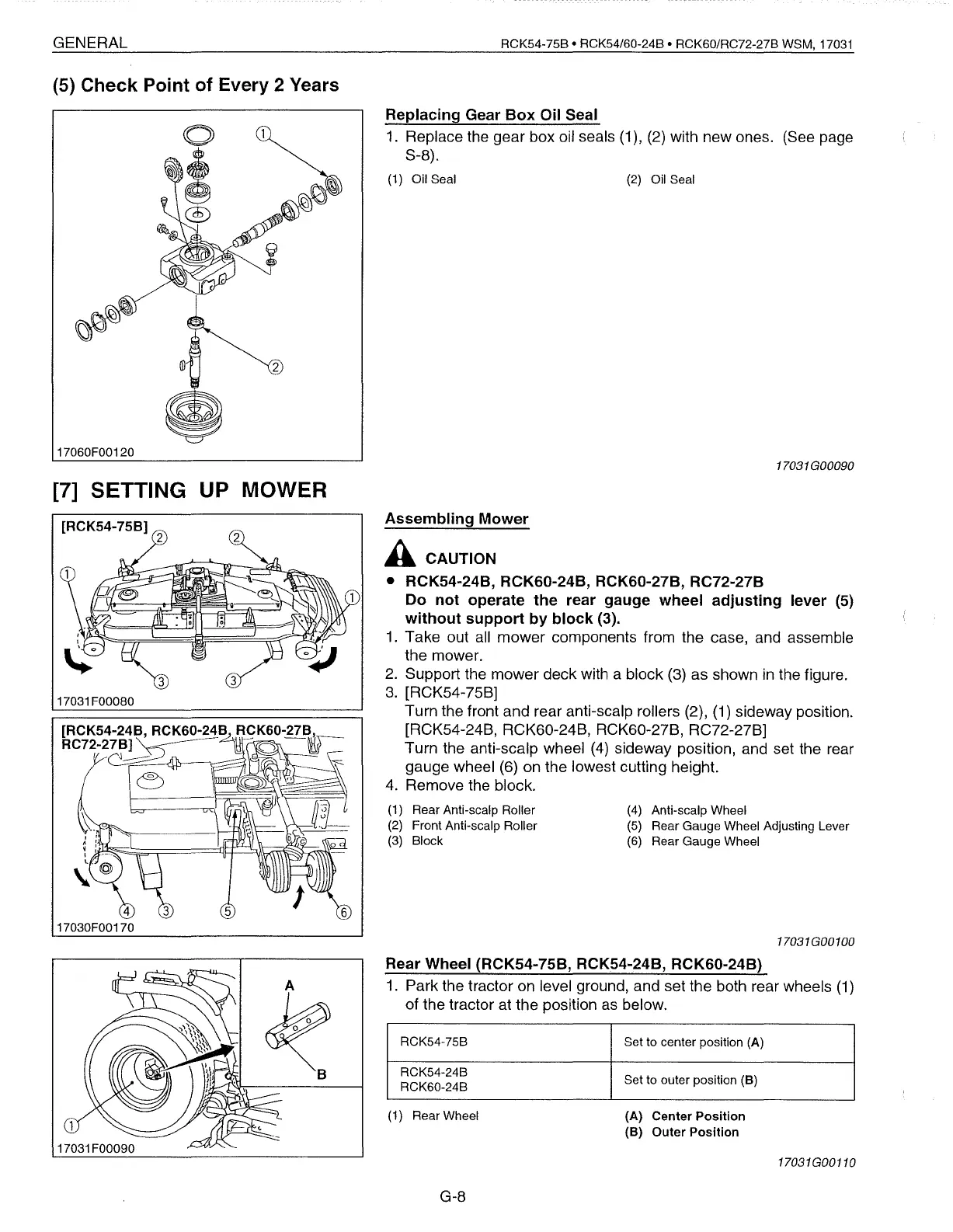

GENERAL
RCK54-75B'
RCK54/60-24B' RCK60/RC72-27B WSM,
17031
(5)
Check
Point
of
Every 2 Years
Replacing
Gear
Box
Oil Seal
1.
Replace the gear box oil seals (1), (2) with new ones. (See page
S-8).
17060F00120
(1) Oil Seal
(2)
Oil
Seal
17031G00090
[7] SETTING UP MOWER
(4) Anti-scalp Wheel
(5) Rear Gauge Wheel Adjusting Lever
(6) Rear Gauge Wheel
(1) Rear Anti-scalp Roller
(2) Front Anti-scalp Roller
(3) Block
Assembling
Mower
A.
CAUTION
• RCK54-24B, RCK60-24B, RCK60-27B, RC72-27B
Do
not
operate
the
rear
gauge
wheel
adjusting
lever (5)
without
support
by
block
(3).
1.
Take out all mower components from the case, and assemble
the mower.
2.
Support the mower deck with a block (3) as shown in the figure.
3.
[RCK54-75B]
Turn the front and rear anti-scalp rollers (2), (1) sideway position.
[RCK54-24B, RCK60-24B, RCK60-27B, RC72-27B]
Turn the anti-scalp wheel (4) sideway position, and set the rear
gauge wheel (6) on the lowest cutting height.
4.
Remove the block.
2
3
[RCK54-75B]
2
17031
F00080
4
17030F00170
17031G00100
Rear Wheel (RCK54-75B, RCK54-24B, RCK60-24B)
1.
Park the tractor on level ground, and set the both rear wheels
(1)
of the tractor at the position as below.
~
B
RCK54-75B
RCK54-24B
RCK60-24B
(1) Rear Wheel
Set to center position (A)
Set to outer position (B)
(A) Center
Position
(B)
Outer
Position
17031G00110
G-8
