RCK54-75B' RCK54/60-24B' RCK60/RC72-27B WSM, 17031
GENERAL
17030F00180
17030F00190

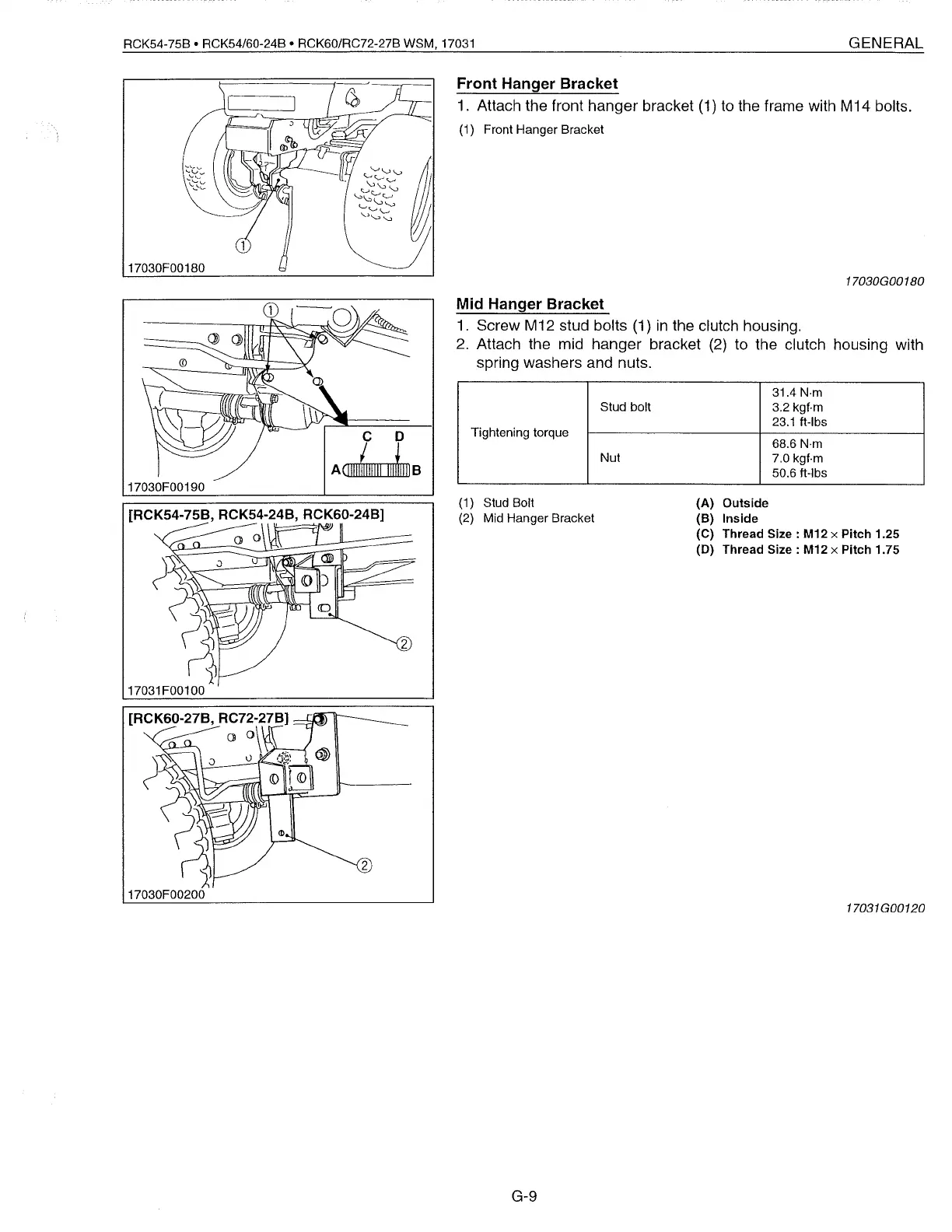

Front Hanger Bracket
1. Attach the front hanger bracket (1) to the frame with M14 bolts.
(1) Front Hanger Bracket
17030GOO 180
Mid Hanger Bracket
1. Screw M12 stud bolts (1) in the clutch housing.
2. Attach the mid hanger bracket
(2) to the clutch housing with
spring washers and nuts.
31.4 N·m
Stud bolt
3.2 kgf·m
23.1 ft-Ibs
Tightening torque
68.6
N·m
Nut
7.0 kgf·m
50.6 ft-Ibs
[RCK54-75B, RCK54-2,4B, RCK60-24B]
2
2
(1) Stud Bolt
(2) Mid Hanger Bracket
G-9
(A) Outside
(8) Inside
(C) Thread
Size: M12 x Pitch 1.25
(0) Thread Size: M12 x Pitch 1.75
17031 G00120
