RCK54-75B· RCK54/60-24B· RCK60/RC72-27B
WSM,
17031
GENERAL
17031F00120
[RCK54-758, RCK54-248, RCK60-248]
®
17031F00130
[RCK60-278, RC72-278]
®
17031F00140

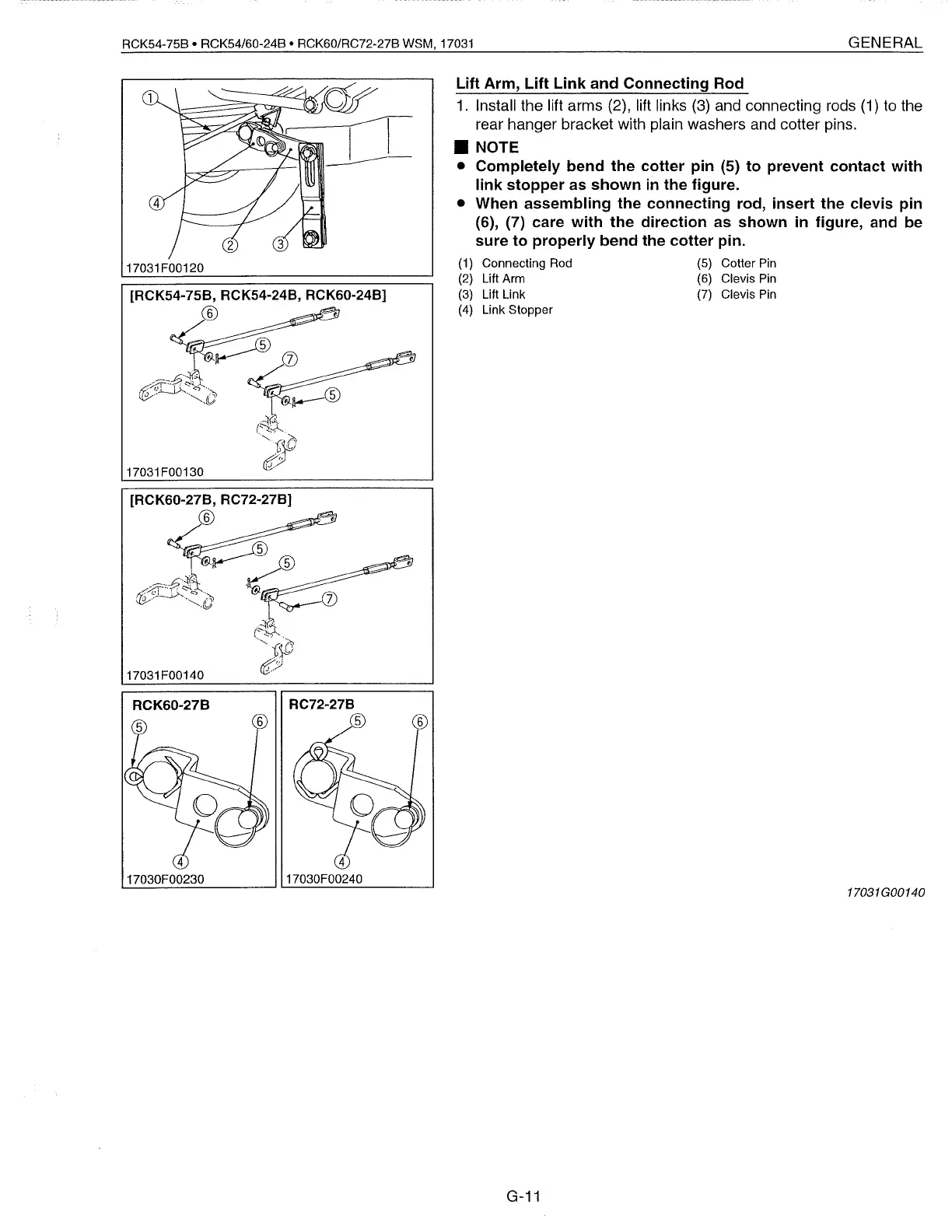

Lift Arm, Lift Link and Connecting Rod
1.
Install the lift arms (2), lift links
(3)
and connecting rods
(1)
to the
rear hanger bracket with plain washers and cotter pins.
• NOTE
• Completely bend the cotter pin (5) to prevent contact with
link stopper
as
shown
in
the figure.
• When assembling the connecting rod, insert the clevis pin
(6), (7) care with the direction as shown
in
figure, and
be
sure to properly bend the cotter pin.
(1)
Connecting
Rod
(5)
Cotter
Pin
(2)
Lift Arm
(6)
Clevis
Pin
(3)
Lift Link
(7)
Clevis
Pin
(4)
Link Stopper
RCK60-278
5
4
17030F00230
RC72-278
®
4
17030F00240
®
17031G00140
G-11
