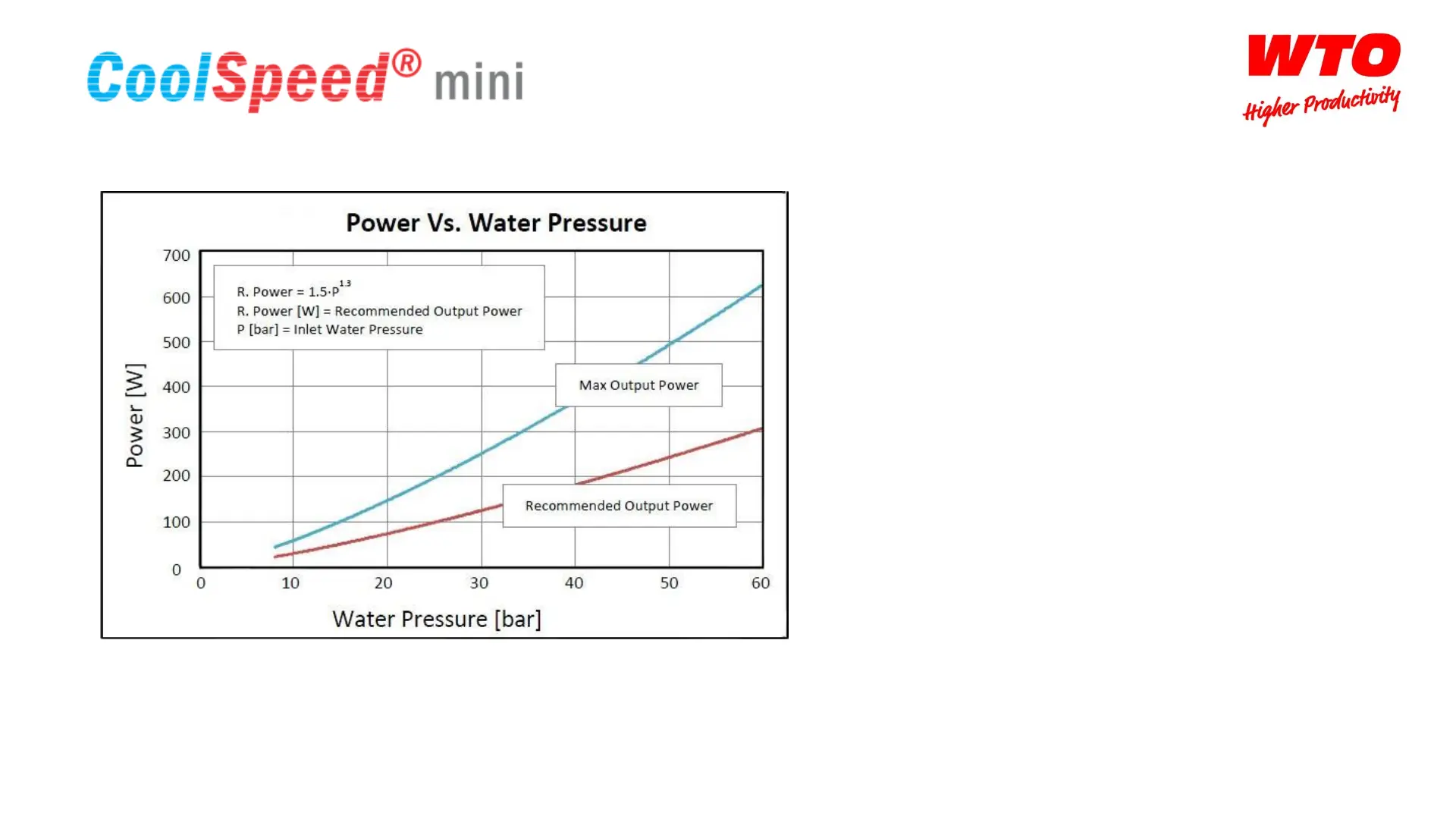

• This chart illustrates maximum and
recommended output power levels
measured at different pressure levels.
• The formula displayed within the chart can be
used to calculate the output
power at any pressure level.
• The max output power curve is meant as a
reference only and should not be
used for an actual job. Working near this curve
will put the spindle at risk of
operating failure and damages may result.
• It is suggested to locate the job’s required
output power close to or below the
“Recommended Output Power” curve,
resulting in improved speed stability.
