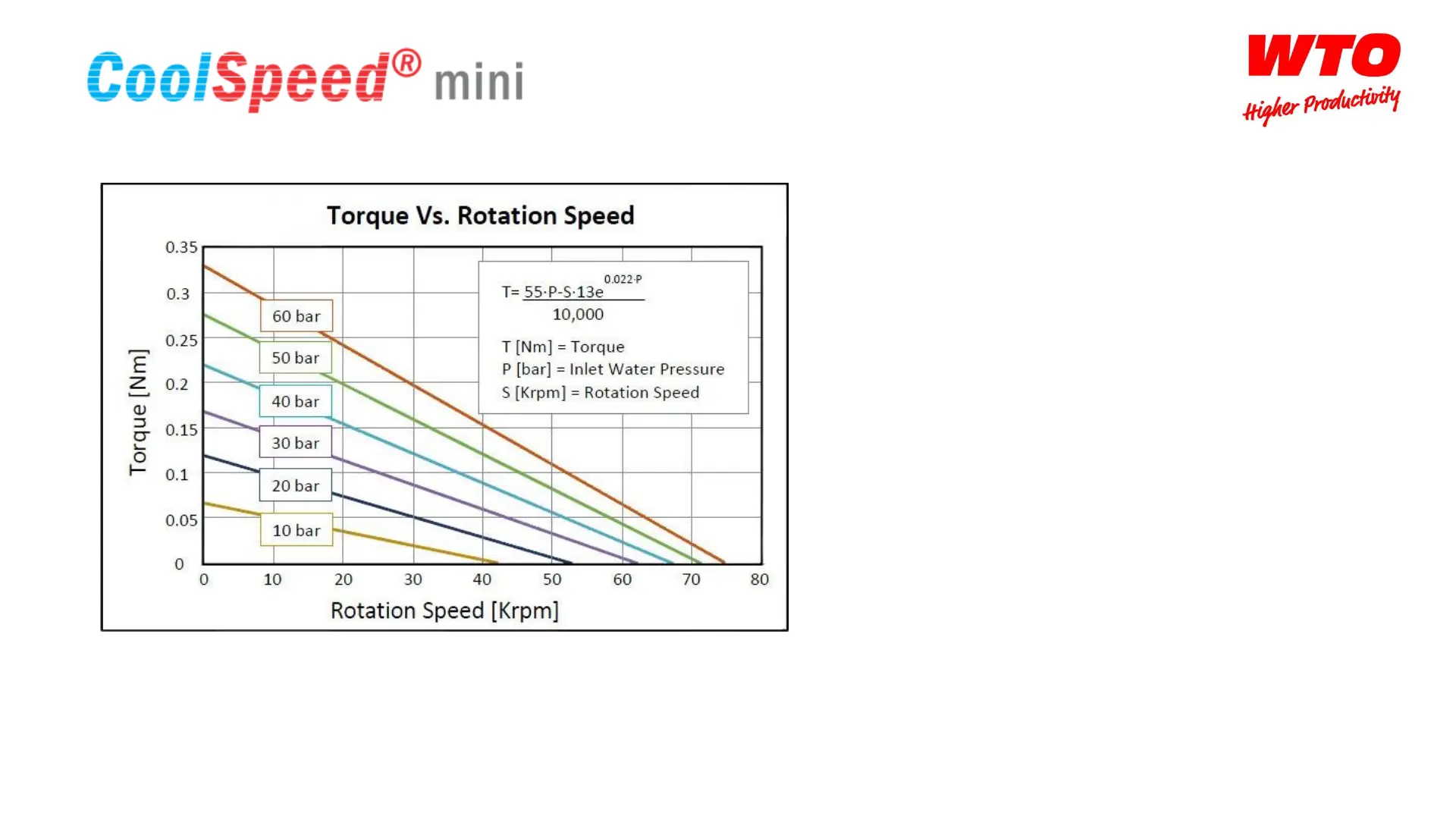

• This chart illustrates the relationship between
the torque and the actual rotation speed.
• The formula displayed within the chart can be
used to calculate the torque at any rotation
speed. Notice that by definition, maximum
torque occurs at zero rotation speed resulting
in no power. Likewise, at maximum rotation
speed there is no available torque, therefore
producing zero power.
