Safe working with the unit is only possible if you
read the operating and safety instructions fully,
and strictly follow the directions that they con-
tain.
• Before working on pressurised parts of the tyre filler,
disconnect it from the compressed air line
• Do not open the casing, as this would render void the
operating permit in accordance with the calibration
law.
• Before each use, check that the unit is fully functional.
If functional capability (e.g. battery display) is not
guaranteed or if damage is found (e.g. cracks), the
unit may not be used or made ready.
• Use only original Würth spare parts.
• Do not make any type-related modifications to the
unit.
! For your safety
Unit elements
Digital tyre filler
Art. No. 0715 54 055
Medium Air and nitrogen
Measuring range 0–12 bar
Smallest display unit 0.05 bar
Max. perm.
operating pressure 15 bar
Temperature range –10 °C – +50 °C
Display accuracy < 0.08 bar from 0–4 bar
< 0.16 bar from 4–10bar
< 0,25 bar > 10 bar
Connection thread 1/4”
Type calibrated
IP protection class 54
Battery life approx. 2 years
with 2 h of measurement daily
Batteries (Art. No. 0827 01)
2 x 1.5 V Micro AAA

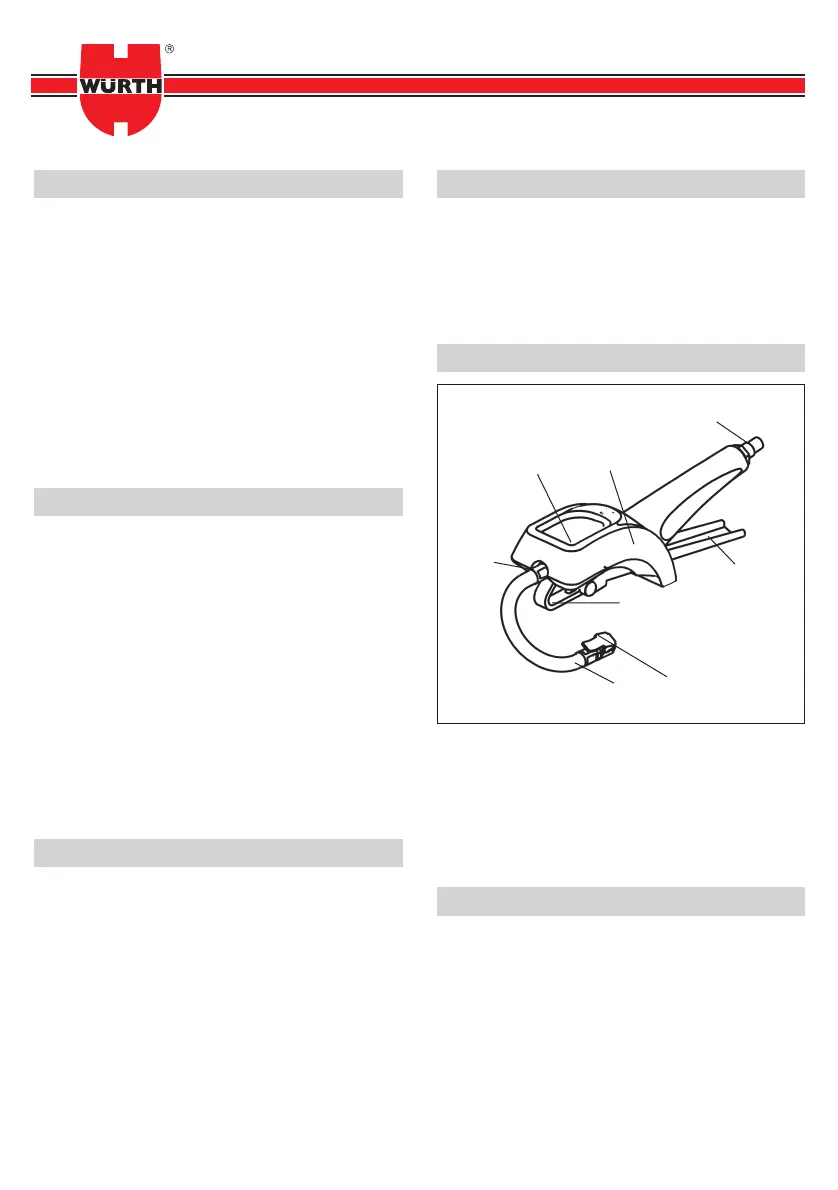

햲 Filling hose
햳 Hose connection
햴 Digital display
햵 Connection nipple
햶 Operating lever
햷 Rubber guard
햸 Suspension eye
햹 Valve adapter
Unit characteristic values
• For safe handling, the tyre filler has an automatic
testing routine. When the tyre filler is connected to
the tyre valve, all the display segments appear for
1 second as a check for the user. If a segment fails,
the unit must be sent to Würth Customer Service
immediately.
Testing routine
The tyre filer is intended only for checking, filling and
deflating tyres. The unit may only be operated on a com-
pressed air mains with a maximum of 15 bar operating
pressure. Any other use or use beyond the specified limit
is incorrect.
The user shall be liable for any damage arising from
incorrect use.
Correct use
• The connection is made via a compressed air hose
(nominal diameter min. 6 mm) with a quick-release
coupling.
• Operate the unit only with clean, condensation-free
compressed air or nitrogen.
• Insert the batteries into the non-pressurised unit as
described in the ”Battery change“ section.
Putting into operation
햲
햹
햳
햸
햴
햷
햶
햵
