Page 6

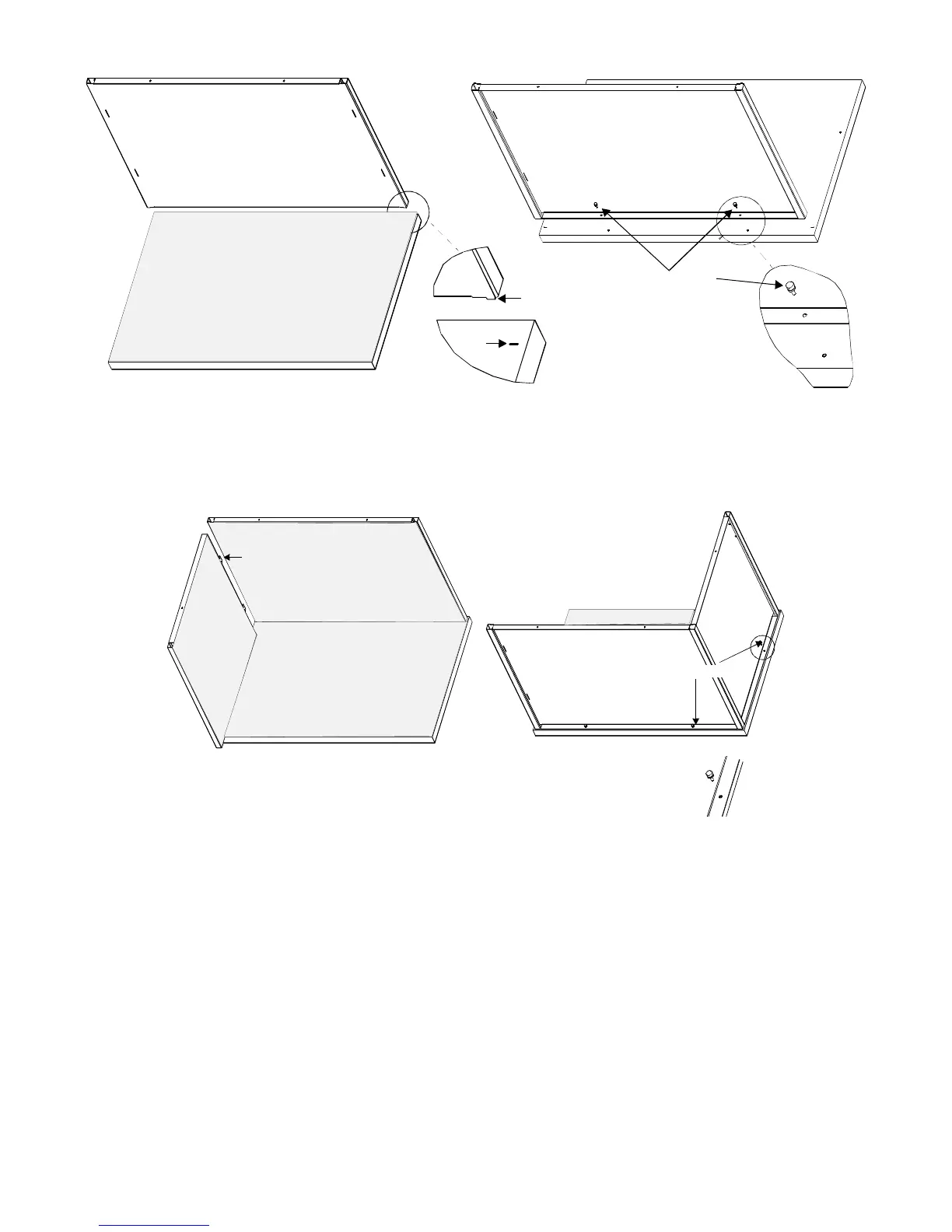

Figure 2. Rear Into Bottom Panel
5. While supporting the Rear Panel, insert the Left Panel (#3) side tabs into the Rear Panel (#2). Fasten the Left Panel
to the Bottom Panel by securing it with the thumbscrew as shown in Figure 3.
Figure 3. Left Panel Into Rear and Bottom Panel
6. Insert the Right Panel (#4) side tabs into the Rear Panel (#2). Fasten the Right Panel to the Bottom Panel by
securing it with the thumbscrew, as shown in Figure 4.
Rear Panel
Bottom Panel
Rear of Unit
Thumbscrews
Notch
Slot
Rear Panel
Bottom Panel
Left
Panel
Side Tabs
Front of Unit
Rear of Unit
Rear Panel
Left
Panel
Thumbscrews
