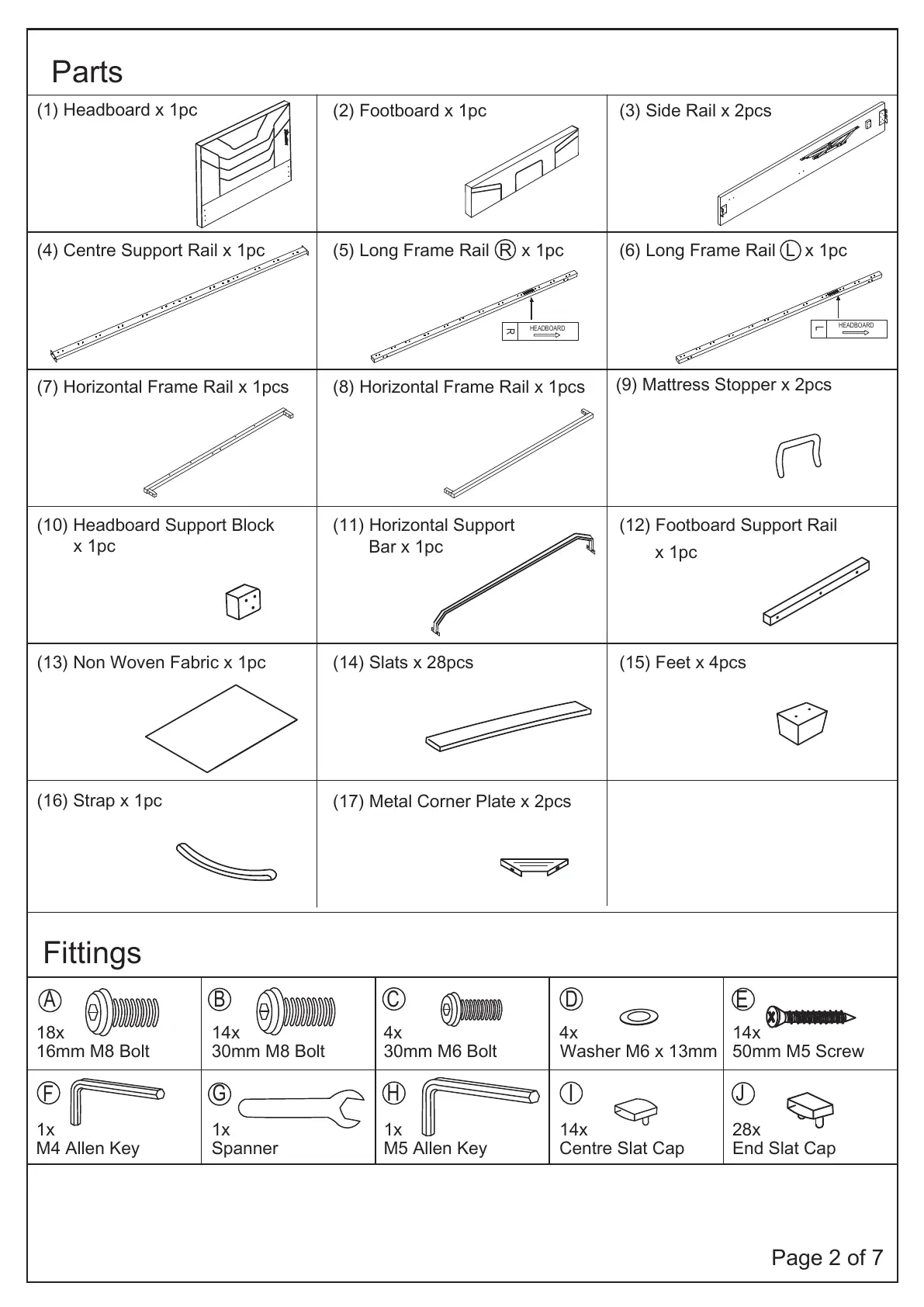

Fittings
Parts
Page 2 of 7
14x
30mm M8 Bolt
B
4x
Washer M6 x 13mm
D
F
G
1x
Spanner
1x
M4 Allen Key
4x
30mm M6 Bolt
C
18x
16mm M8 Bolt
A
E
14x
50mm M5 Screw
J
28x
End Slat Cap
I
14x
Centre Slat Cap
H
1x
M5 Allen Key
(2) Footboard x 1pc
(3) Side Rail x 2pcs
(1) Headboard x 1pc
R
HEADBOARD
L
HEADBOARD
(5) Long Frame Rail R x 1pc
(6) Long Frame Rail L x 1pc
(4) Centre Support Rail x 1pc
(8) Horizontal Frame Rail x 1pcs
(7) Horizontal Frame Rail x 1pcs
(11) Horizontal Support
Bar x 1pc
(12) Footboard Support Rail
(10) Headboard Support Block
x 1pc
x 1pc
(14) Slats x 28pcs
(15) Feet x 4pcs
(13) Non Woven Fabric x 1pc
(17) Metal Corner Plate x 2pcs
(9) Mattress Stopper x 2pcs
(16) Strap x 1pc
