XAL MOVE IT 1.2 - DALI Wiring

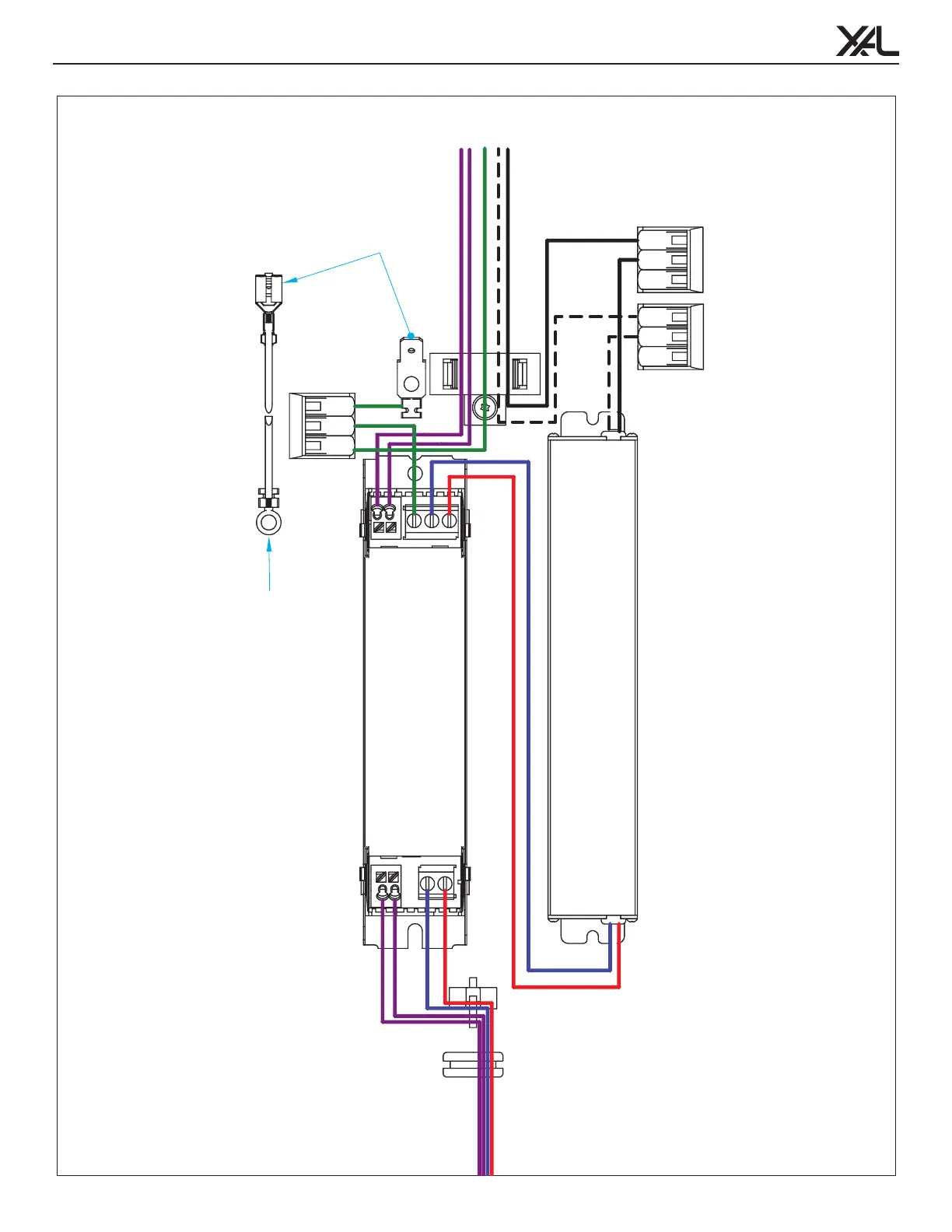

WIRING DIAGRAM
DALI
connect
grounding
attach to cover
(not shown)
DA DA Ground – + IN
DA DA
–
OUT +
MOUNTING INSTRUCTIONS
MOVE IT 1.2 RECESSED
