Xantech XT-CAT-ARC-KIT User Manual

www.xantech.com
®

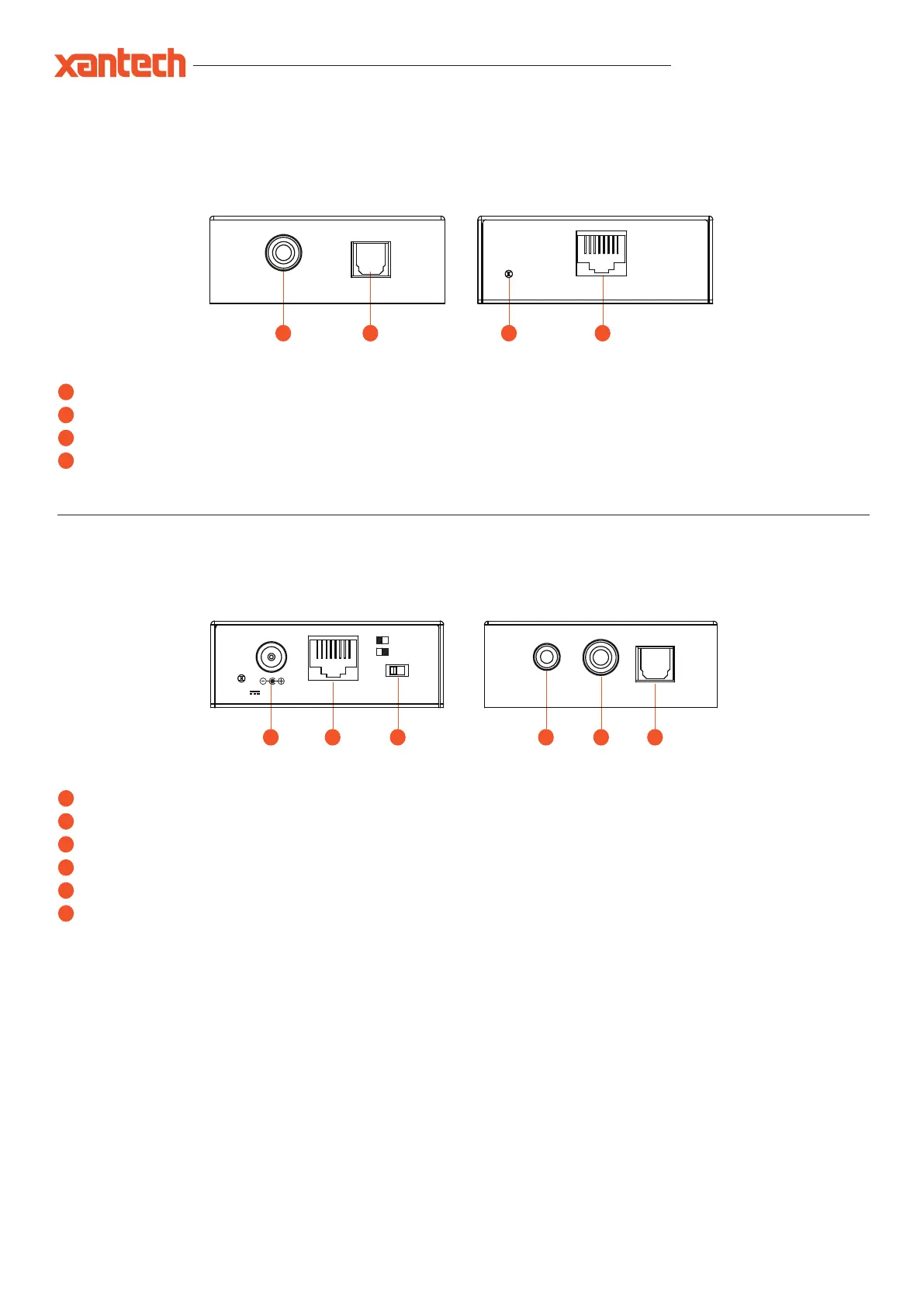

Panel Description
XT-CAT-ARC-TX
Coaxial digital audio input
Optical digital audio input
Power LED indicator displays the power status of the unit
Cat5e/6 RJ45 output
1
2
3
4
4
1 32
XT-CAT-ARC-RX
Power socket – Use Xantech supplied 5V / 1A DC adaptor
Cat5e/6 RJ45 input
DAC input selection – Switch between optical and coaxial digital input to be converted to analog L/R audio output
Analog L/R audio output - 3.5mm stereo audio jack
Coaxial digital audio output
Optical digital audio output
5
6
7
8
9
5 86 7
10
9
10
Optical Out
Coaxial OutL/R Out
Power
Optical
CAT In
Coaxial
L/R Out Select
5V 1A
Optical Out
Coaxial OutL/R Out
Power
Optical
CAT In
Coaxial
L/R Out Select
5V 1A
Power
CAT Out
Optical In
Coaxial In
Power
CAT Out
Optical In
Coaxial In
XT-CAT-ARC-KIT USER MANUAL
