Quick Start Guide
Page 2/2

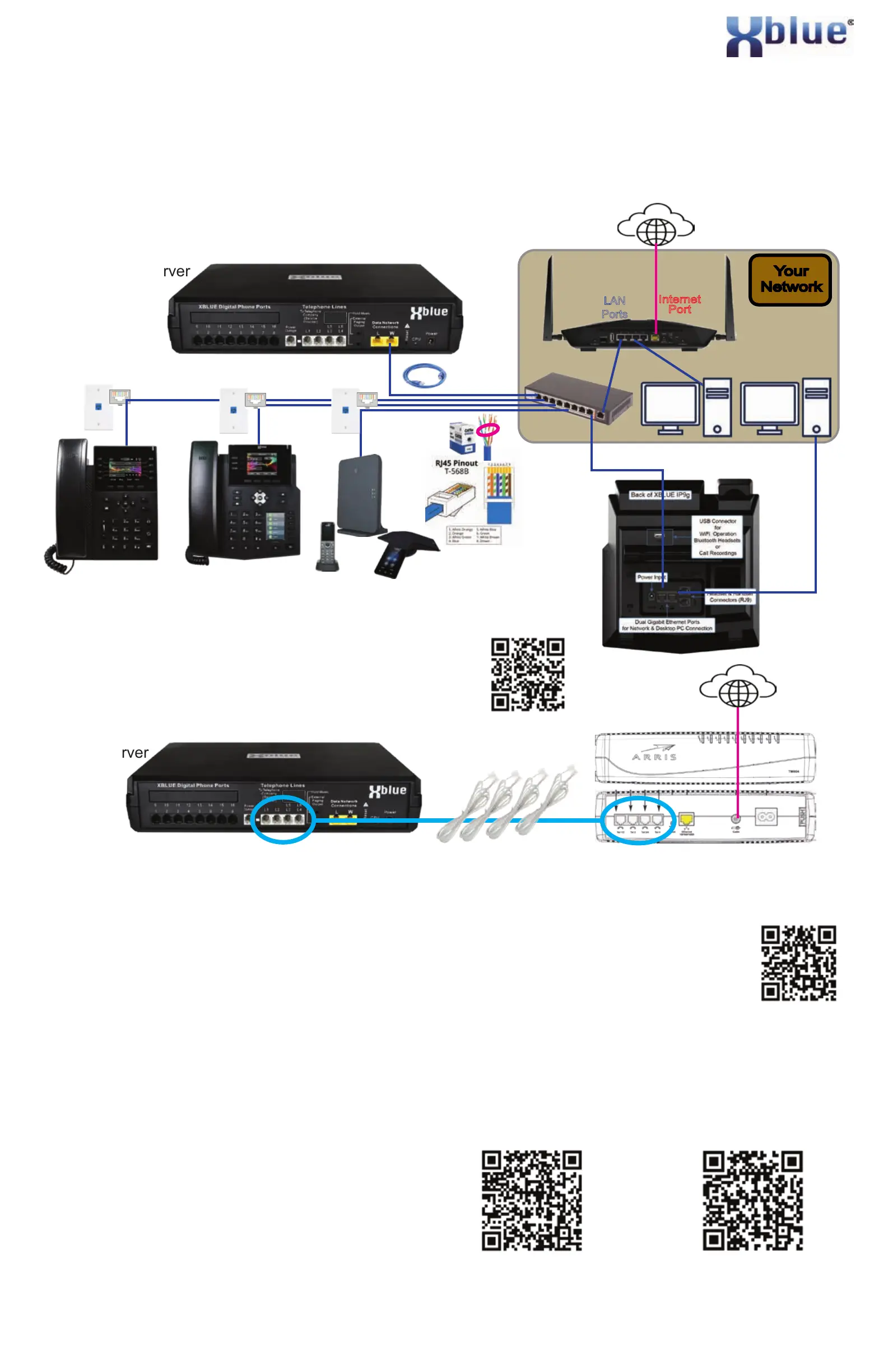

Connect IP Phones (IP8g, IP9g, DECT Cordless Base)
Installation of IP Phones and other IP devices is done using your existing LAN (Local Area Netwrork). These devices use your network. IP Phones are not
connected to the Internet. All IP devices are connected to your router as any other IP device (computers, security systems, cameras, etc.) The optional VOIP
Card is required for VOIP devices.
Your router isolates your LAN from the Internet. It’s very important that all XBLUE voice devices are connected to the same LAN. If you are using more than
one router on your network you have more than one LAN.
You should connect your X16
plus
server “W” port to your LAN regardless of having IP Phones or not. The X16
plus
utilizes services on the Internet via
Internet
WIFI
Router
Data Switch (POE)
(more LAN ports)
LAN
Ports
Internet
Port
X16
plus
Server
IP9g
(back)
• Connect the “W” port of the X16plus server to an available LAN port on the router or data switch.
• Connect the Ethernet Network Port of IP Phone or DECT Base to an available LAN port of the router (via
office Cat5e,6 cabling).
Your
Network
Connect Telephone Lines
X16
plus
Server
Use the telephone line cords provided in your bundle to connect your telephone lines to the X16
plus
server. Only the number of lines you have subscribed to will be
functional. On the Service Provider modem there will be analog line ports. The labeling on the Arris modem shown is Tel 1, Tel 2... ect. From the Service Provider
modem connect from Tel 1 to L1 on the X16
plus
and so on for Tel 2-L2, Tel 3-L3 and Tel 4-L4. Use only the cords provided in the bundle to ensure that there are
NO OTHER devices or terminals on the wires connecting the lines to the X16
plus
server..
An optional analog line expansion card is available with 2 additional telephone line ports. The maximum analog lines capacity of the X16
plus
is 6.
Internet
Telephone Lines from Service Provider
Power Up
1. Connect the X16
plus
server power adapter to an isolated AC power outlet. (Nothing else connected to that same electrical circuit.) Then
connect the power adapter to the X16
plus
server and use the switch on the adapter power cord to turn on the server. It takes approximately 3
minutes for the system to boot up. When boot up is complete the CPU lamp on the server will ash at approximately 1sec ON/1 sec OFF.
2. Now connect telephones. As telephones are connected they will take on the extension number of the port they are connected to (Digital
Phones) or the rst available extension number as they are connected to your network (IP Phones).
your router to update time settings to keep features like Time Mode and the clocks accurate.
The default (factory settings) for phone operation is: all phones
ring when a telephone line is ringing. If no one answers the call it
will be routed to voicemail box of extension 101 to leave a
message. Many features are available for custom settings. Please
refer to the information at the links (QR Code) to learn about:
• Access to the X16plus Administration (PC required)
• Admin settings that can be done at the XD10 phone
• Administrator Guide
• Auto Attendant (IVR) Setup
• Recording Greetings (Auto Attendant / IVR)
• Recording Greeting (Voicemail - each extension)
• Conference Calling
Setup
Administrator Guide
Support Page (all docs)
X16plus-QSG v2
https://xbluephonesystems.com/support/
documentation/x16plus/
x16plus_admin_manual.pdf
https://xblue.com/
customer-support-service/x16plus-support/
Note: it is estimated that 90% of analog lines are now provided via VOIP from your service provider. If you have good internet
service you can alternately use competitive XBLUE Telephone Lines service and eliminate the psuedo analog lines. XBLUE
Telephone Lines are provided over the “W” port connected to your router. You can use both analog and VOIP telephone lines.
8 VOIP Lines are possible however if the analog 2-Line Expansion is installed the maximum VOIP Lines is 6.
https://xblue.com/
telephone-line-services/
• Data Switches can be used to expand the available LAN ports of the router and subnet.
• POE data switches can be used to power the IP Phone and eliminate the power
adpater at the phone.
https://xblue.com/
product/8-port-poe-switch/
