Swapping the inching Knobs side to side

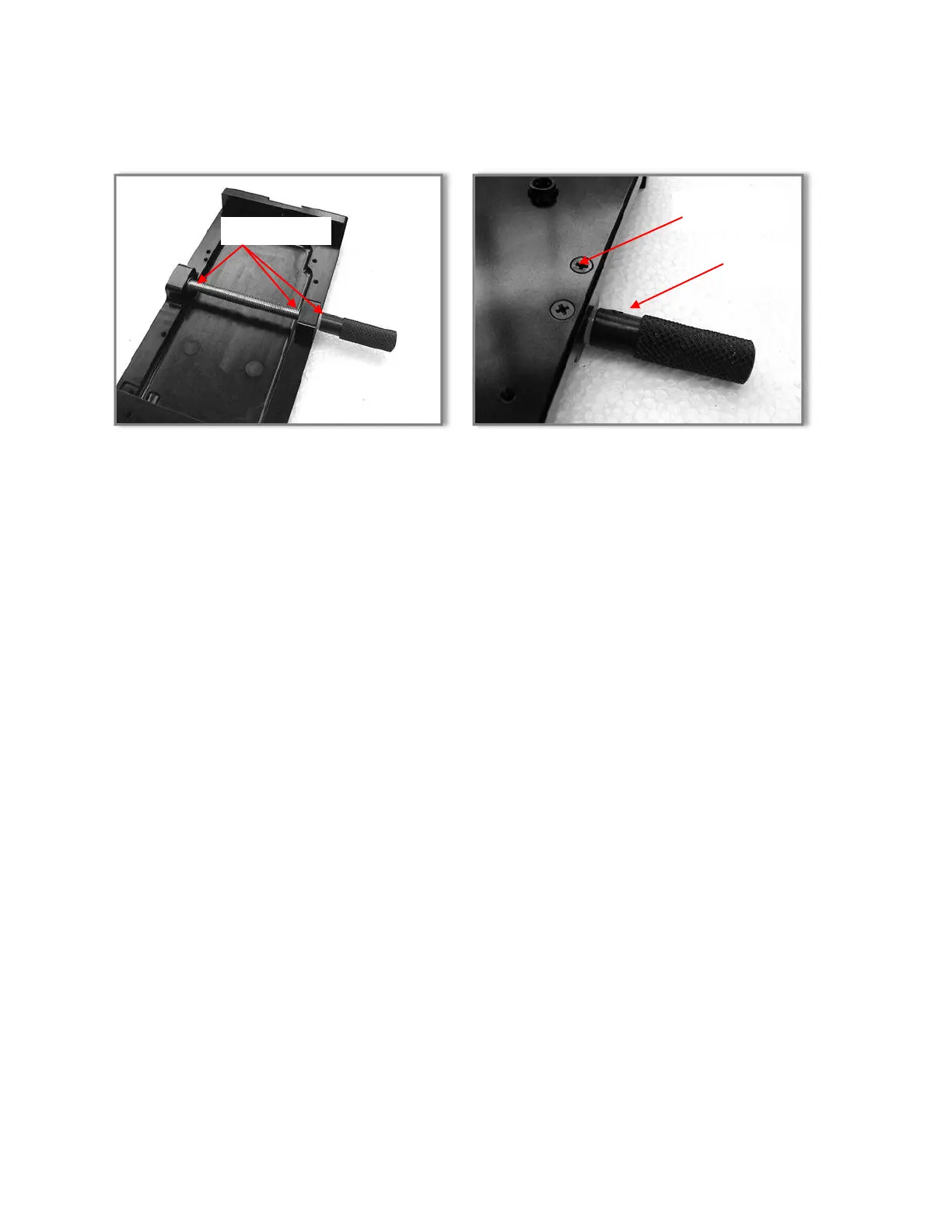

The first photo is a cutaway of the LEH carriage and shows you how the shaft sits. It does screw through
a plastic nut that means you will have to turn out the drive shaft and turn it back in.
There are three spacers on the drive shaft. One on the inside end of the drive shaft, and one under the
knurled inching knob.
Remove the LEH from the post.
.050” hex head wrench removes the set screw on the knurled knob, spin the knob off the shaft.
Remove the two Phillips head screws on the bottom as shown.
Spin out the drive shaft, flip it around and spin it back in.
When you have the drive shaft almost all the way in, place spacer on shaft end, and insert it into
end cap.
Add spacer on other shaft end and add the removable end cap.
Screw in two Phillips head screws.
The Fore and Aft knob is very simple.
Loosen the set screw, and spin out the inching knob.
Remove the plastic cap on opposite side and place the knob on the shaft, tighten set screws.
Replace plastic cover on open hole.
13
Two removable
Phillips screws
