1.
Double shell ZEN BCD;
2.
NX Series diving harness of M or XL size, in simple or
easy-to-unfasten version;
3.
Single tank adaptor.
PARTS OF ZEN SYSTEM

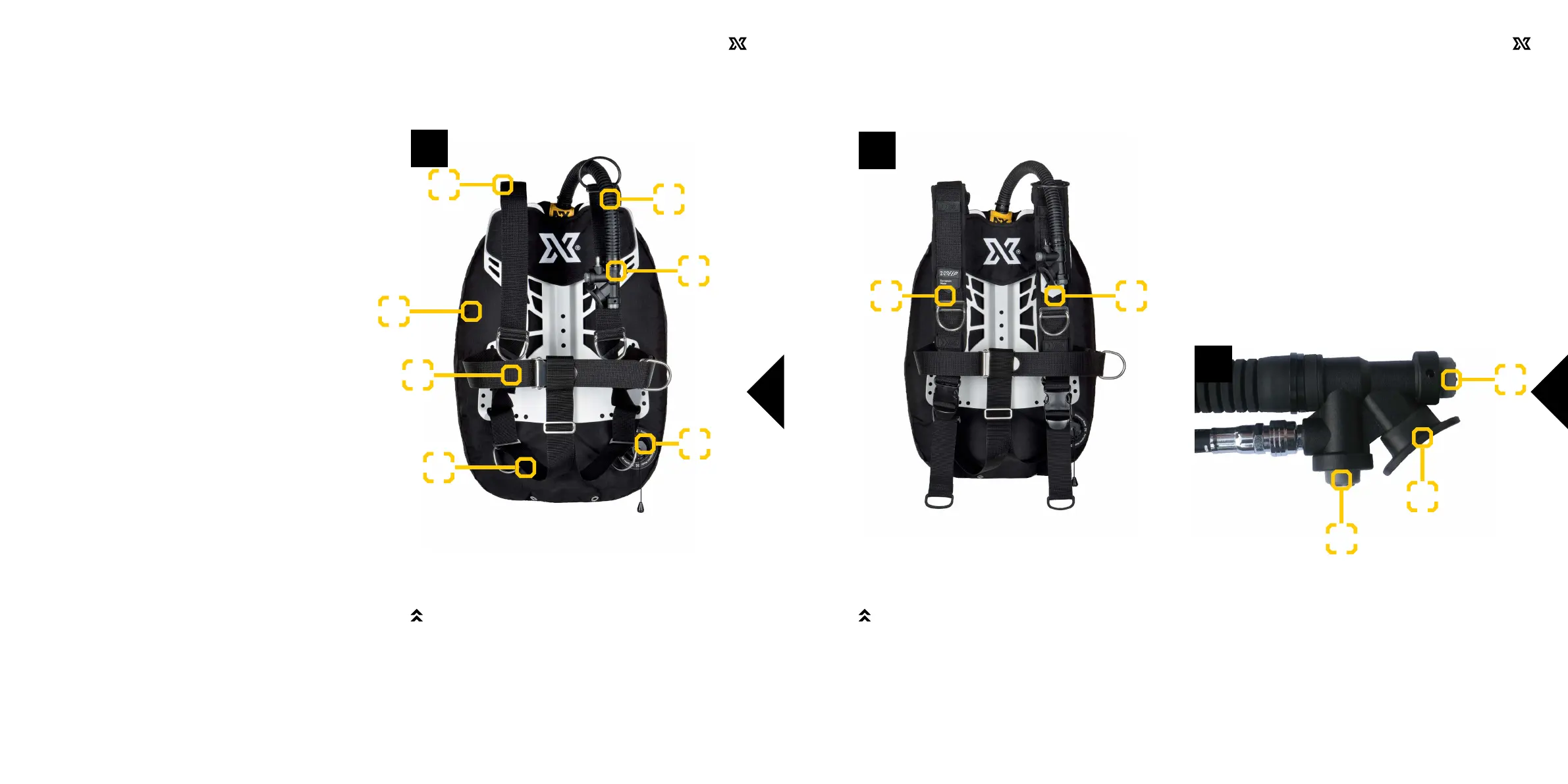

Fig. 1. ZEN System with NX Series STD harness
01
Fig. 2. ZEN System with NX Series QR harness
02
ZEN system consists of three basic
elements:
A K-type inator is a reliable device made of shock-proof
technopolymer which is resistant to environmental condi-
tions. The inator valve is made of metal, which makes
the inator more resistant to freezing and it can be oper-
ated much longer than inators made entirely of plastic.
The inator is equipped with an inator button (1) to
inate the BC with air, a purge button (2) to deate the BC
or inate it orally, and a mouthpiece (3) to release the air
that is deated or inhale the BC orally.
K-type Power Inflator
03
1
2
88
1
2
5
6
7
3
4
3
1. Shoulder strap
2. Compensator bladder
3. Waist strap
4. V-type crotch strap
5. Inator hose
6. K-type inator
7. Over pressure relief valve
8. Buckles for quick adjustment and unfastening of har-
ness (NX Series QR harness only).
ZEN buoyancy compensator may be equipped, as an
option, with two-part weight pockets installed in NX
Series harness (see Chapter 6 – ‘Optional droppable
weights’) or trim pockets.
On the following pages of this manual we described
particular elements of the system and also their congu-
ration and adjustment.
