Xena Networks XenaBay C4-12 - Cover Installation

Xena Networks ApS 2009-11

Page4



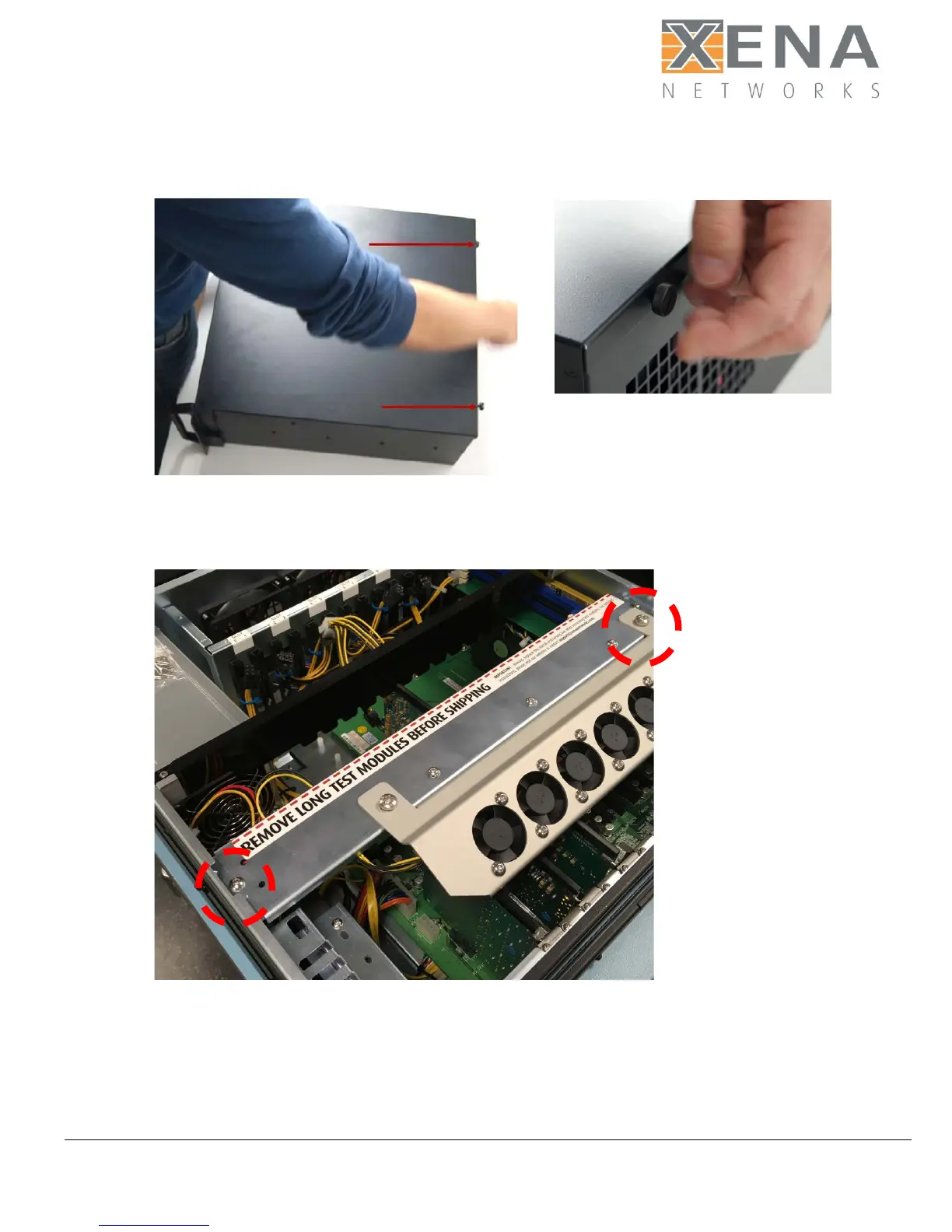

 Figure 6 Lift the Hold-Down Clamp off the
Hold-Down Clamp Securing Hook
STEP4:TESTMODULEINSTALLATION
To install the Test Module please follow the
instructions below:
Step a: Remove the slot cover at the front of
the chassis. To do this, remove the slot
cover retention screw at the top of the slot
cover.
Figure 7 Remove the Test Module Slot
Cover Retention Screw
Step b: Slide the Test Module into the
socket on the backplane reserved for the
Test Module.
 Figure 8 Xena Test Module
Step c: To secure the Test Module, reinsert
the previously removed slot cover retention
screw.
STEP5:HOLD‐DOWNCLAMPAND
COVERINSTALLATION
To re-install the hold-down clamp, please
follow the steps below:
Step a: Slide the end of the hold-down
clamp with 2 holes for the hold-down clamp
hooks into the hold-down clamp securing
hook on the right side of the chassis.
Step b: Align the retention screw holes in
the other end of the hold-down clamp with
two retention screw holes in the clip
stretches out from the internal side HDD
bracket.
Step c: Reinsert the 2 hold-down clamp
retention screws.
 Figure 9 Hold-Down Clamp Retention
Screw Holes in the Clip of the Side HDD
bracket
Step d: Re-install the cover. To do this, slide
the cover back over the chassis and reinsert
the 6 previously removed retention screws.
STEP6:PSUCABLEANDETHERNET
CABLECONNECTIONS
The following cables need to be connected.
Step 1: Connect the PSU connector on the
rear of the chassis.
Step 2: Connect the Ethernet RJ-45
connector on the front of the chassis to your
LAN or PC.
STEP7:TURNONTHECHASSIS
The chassis power-on switch is located
behind the front logo plate. Remote the
magnetic front logo plate, and press the
power-on switch, re-attach the magnetic
front logo plate and boot will take approx 3
minutes.
