Operating the Xerox Production Media Cart (Nuvera)
24 Xerox Nuvera, iGen Production System Production Media Cart
Production Media Cart User Guide

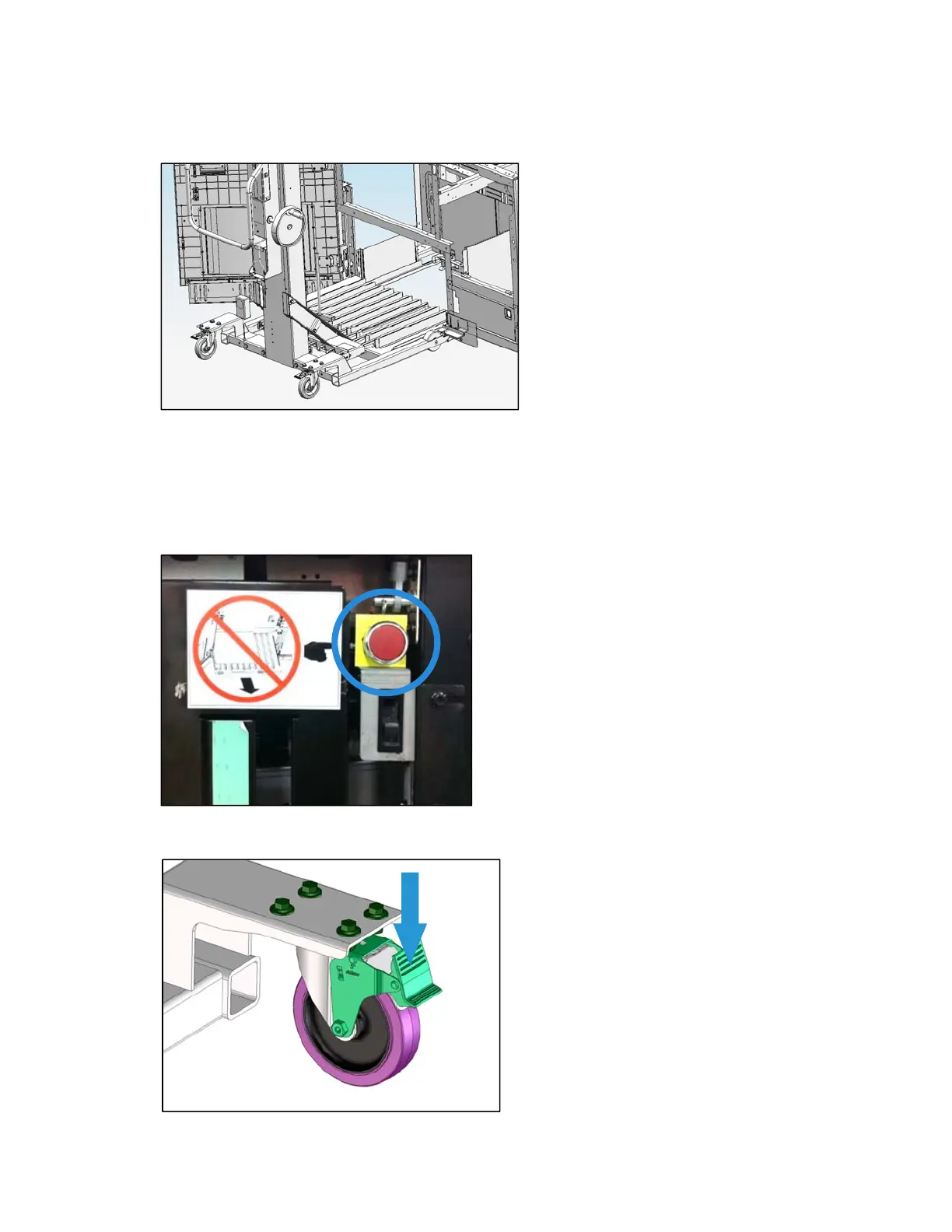

4. Powered eject is triggered to eject 2 seconds after the cart is pushed into the docked
location. Cart with pallet out is shown.
5. A red colored emergency Stop button is mounted on the machine frame for customer
controlled emergency stop. Press button to stop. Press button 2nd time to continue. The
power eject system will reset itself after an emergency stop.
Note
The emergency Stop button is located on the front of the iGen stacker module
6. Press down on the lock tab on the rear casters to stabilize the Cart.
