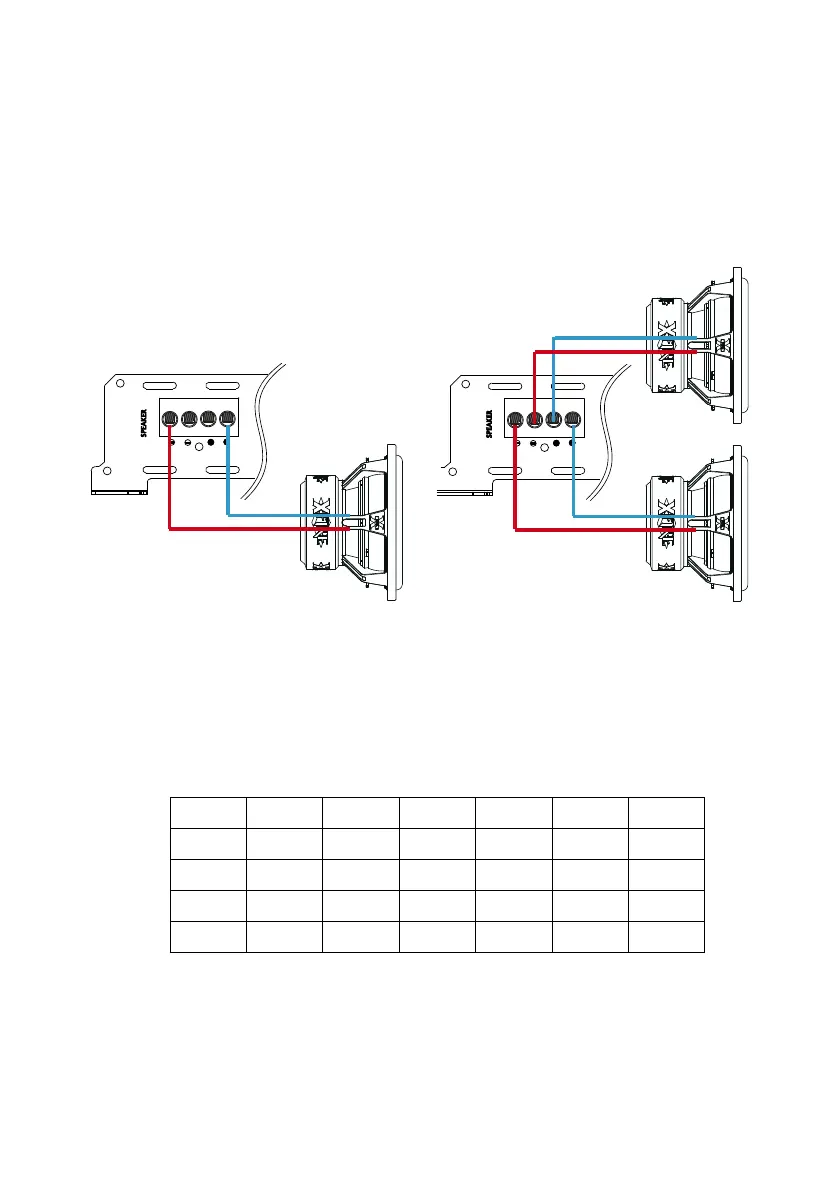

EFX3000D - Subwooferwiring

single subwoofer - dual subwoofer

2 - 4 Ohm Sub

1 - 4 Ohm Sub

2 - 4 Ohm Sub

4 LOUDSPEAKER OUTPUTS This is where you connect your speakers. When connecting loudspeakers to an EFX

ampliﬁer, please be sure to observe proper polarity. Do not load the ampliﬁer with so many speakers that the

minimum impedance capacity is exceeded.

Speaker wiring selection chart: Ouput power to speaker Vs length of speaker wire

Length 80W 100W 150W 200W 300W 500W

5 ft. 14 AWG 12 AWG 12 AWG 10 AWG 10 AWG 8 AWG

10 ft. 12 AWG 12 AWG 10 AWG 10 AWG 10 AWG 8 AWG

15 ft. 12 AWG 12 AWG 10 AWG 10 AWG 10 AWG 8 AWG

20 ft. 12 AWG 12 AWG 10 AWG 10 AWG 8 AWG 8 AWG

MinimumrecommendedAmericanWireGaugesizesforspeakerconnections.
