NVMe Drive Indicators

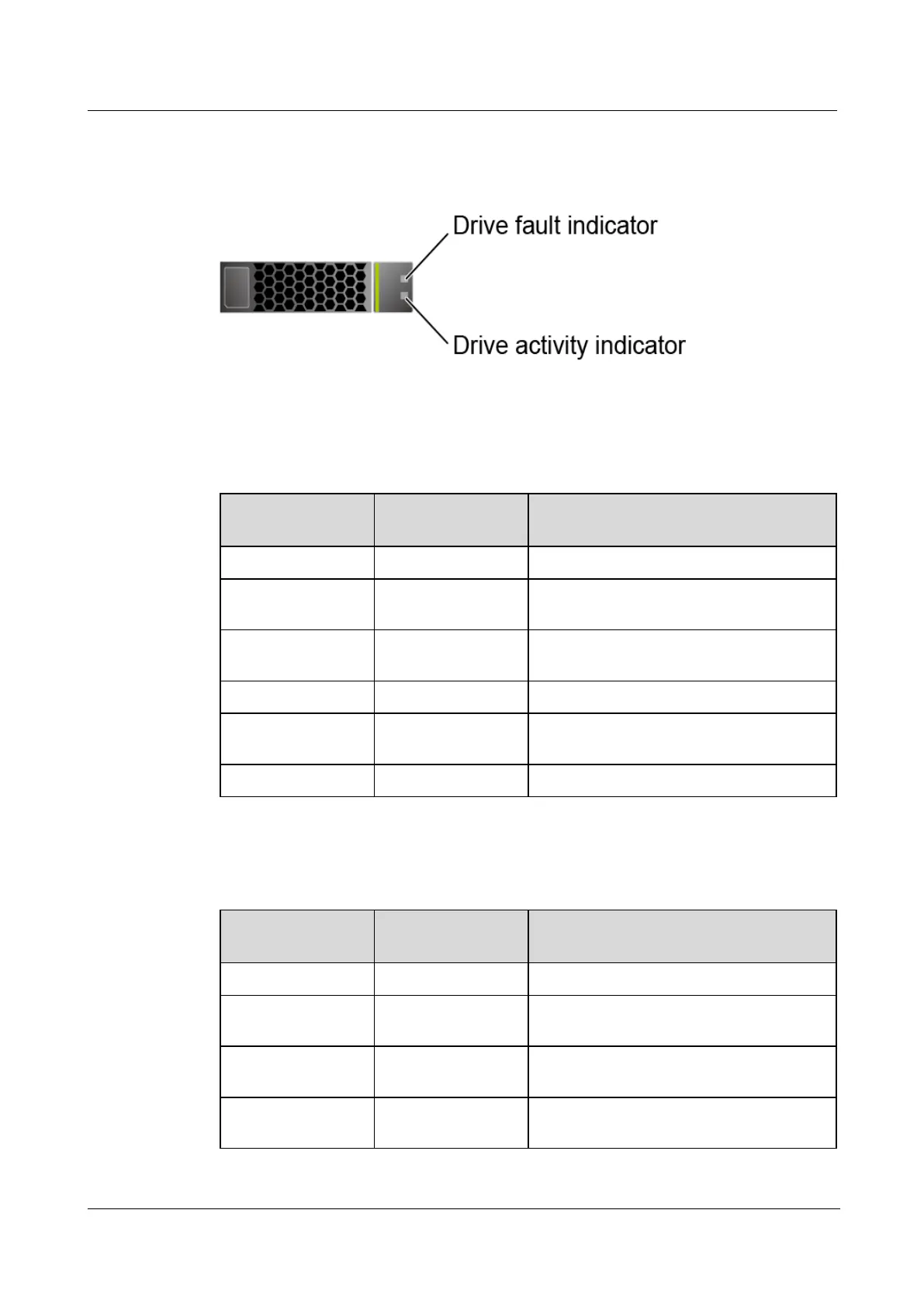

Figure 5-137 NVMe drive indicators
⚫
If the VMD function is enabled and the latest VMD driver is installed, the NVMe drives
support surprise hot swap.
Table 5-71 NVMe drive indicators (VMD enabled)
Activity Indicator
(Green)
Fault Indicator
(Yellow)
Description
Off
Off
The NVMe drive is not detected.
Steady on
Off
The NVMe drive is detected and operating
properly.
Blinking at 2 Hz
Off
Data is being read from or written to the
NVMe drive.
Off
Blinking at 2 Hz
The NVMe drive is being located.
Off
Blinking at 8 Hz
The data on the secondary NVMe drive is
being rebuilt.
Steady on/Off
Steady on
The NVMe drive is faulty.
⚫
If the VMD function is disabled, NVMe drives support only orderly hot swap.
Table 5-72 NVMe drive indicators (VMD disabled)
Activity Indicator
(Green)
Fault Indicator
(Yellow)
Description
Off
Off
The NVMe drive is not detected.
Steady on
Off
The NVMe drive is detected and operating
properly.
Blinking at 2 Hz
Off
Data is being read from or written to the
NVMe drive.
Off
Blinking at 2 Hz
The NVMe drive is being located or
hot-swapped.
