1. Set the phase switch in ① condition , turn off power controlled switch.
2. Access to power supply which is adapt to the conditioner, at this time the voltage meter should
correct indicate.
3. Press down the phase detect touching terminal, detect whether the phase of input power supply
is correct or not.
4. Turn on the power supply controlled switch.
5. Turn on the switch of the power using device.
Max Spike Volt: 3000V
Max Clamping Volt (6X20s): 470V
Max Surge Current (6X20s): 1000A
Noise Filter: -10dB~55dB(2-100MHz)
Rating: AC140V 10A Max.(AC INPUT 110V-120V );
AC250V 10A Max.(AC INPUT 220V/230V)

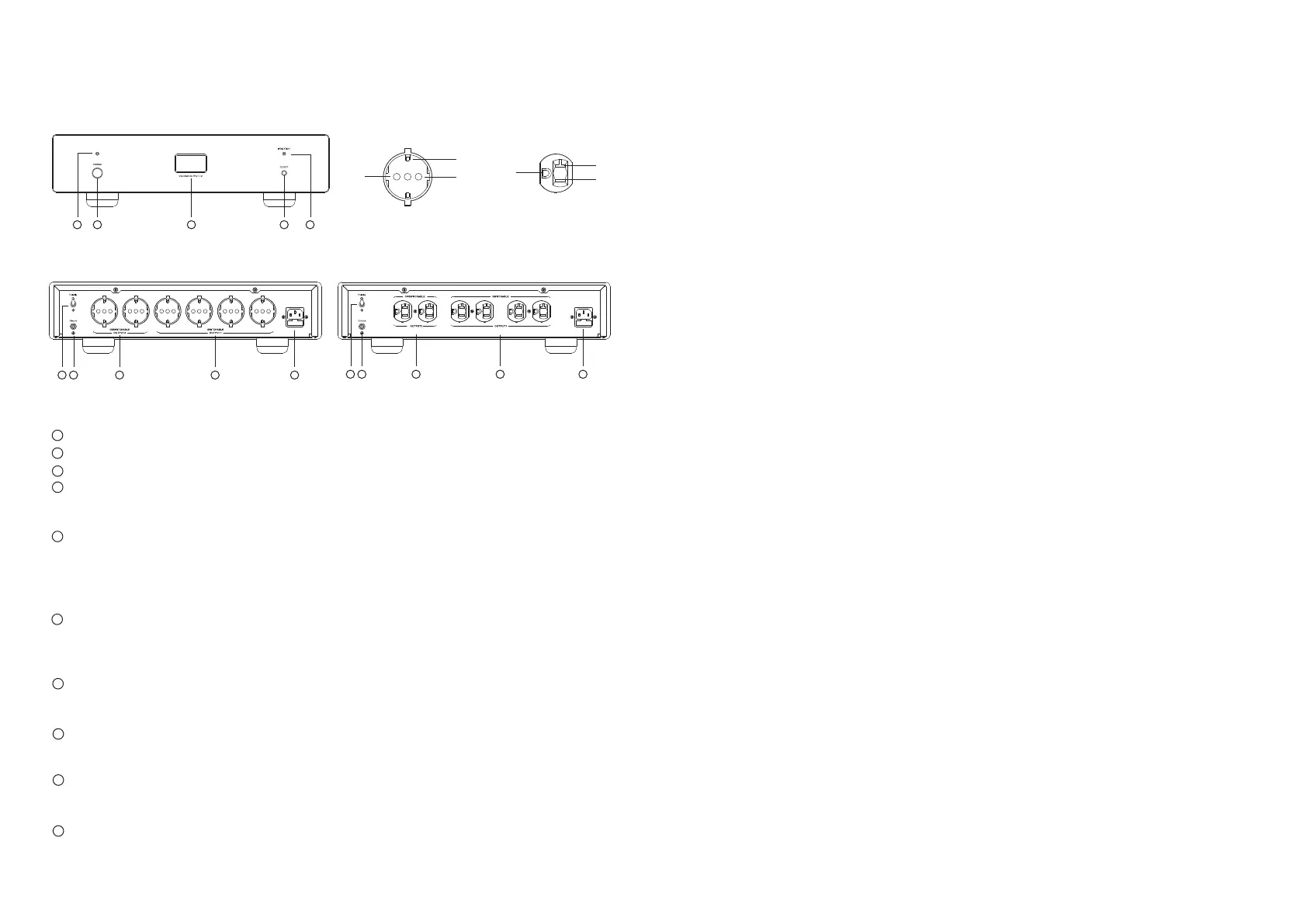

Power Indicator:
Power Switch: .
Voltage Meter: Indicate the voltage of the input power supply, which is only for reference.
Phase detect touching terminal: With this phase swtich, the L wire and N wire inside the
conditioner can be exchanged, in order to fit for nonstandard power supply. When the phase
detect indicator is light, please switch this phase switch once.
Phase Detect Indicator: When the power input socket to access the power supply, please set
the phase switch in ① condition and press down this phase detect touching terminal. If the
indicator is light after that, that means the power supply phase is converse with this power
conditioner, please switch the phase switch once; If the indicator is dead after touching the
terminal, that means the power supply phase is correct.
Phase Switch: With this phase switch, the L wire and N wire inside the conditioner can be
exchanged, in order to fit for nonstandard power supply. When the phase detect indicator is
light, please switch this phase switch once. when change phase switch, please disconnect the
power grid from the device.
Grounding Binding Port: The conditioner adopts single-phase 3-lines input way, when
connect with single-phase 2 lines power supply without grounding, this grounding port is
necessary for grounding.
Output Group 2: This Socket Group supply output power current at most 5A for power devices,
and it’s not controlled by the power switch. When the power input socket to access the power
This indicator will be light on when power on.
This button connects and disconnects the power of output group 1
Output Group 1: This sockets group is especially for sound source or preamplifier, which with
insulation transformer inside. Please do not connect any equipment with power more than
600W to this group. This group can be controlled by the power switch.
Power supply input socket: Power supply input socket is the interface for the conditioner and
with fuse itself.
1 . Please ensure the phase have been connect properly before using (by the phase detect
function). Please do not connect the grounding wire with Natural wire as replacement of
single-phase 3-lines power supply with grounding. Do connect the enclosure to the
ground with the grounding binding port.
2.When leaving the factory, the phase switch is set at the position 1, the output plug phase
as schematic diagram: Schuko standard please follow schematic diagram 1, while US
standard follow schematic diagram 2 .
3. Never attempt to dismantle this appliance by yourself because of the high voltage and
heavy current inside. If there is any fault, please cut off the power supply and send it to
examine and repair.
4. Always disconnect your entire system from the AC mains before connecting or
disconnecting any cable, or when cleaning any component.
1
2
3
4
5
1
2
3
4
5
6
8
9
10
7
6
8
9
10
7
6 8
9
10
7
N
L
G
G
N
L
Schematic diagram 1 Schematic diagram 2
Important Safety Instruction
Operation
Appearance
Specifications
NOTE
Specification and design subject to change without notice for improvements.
