Xinje XD Series Manual

3

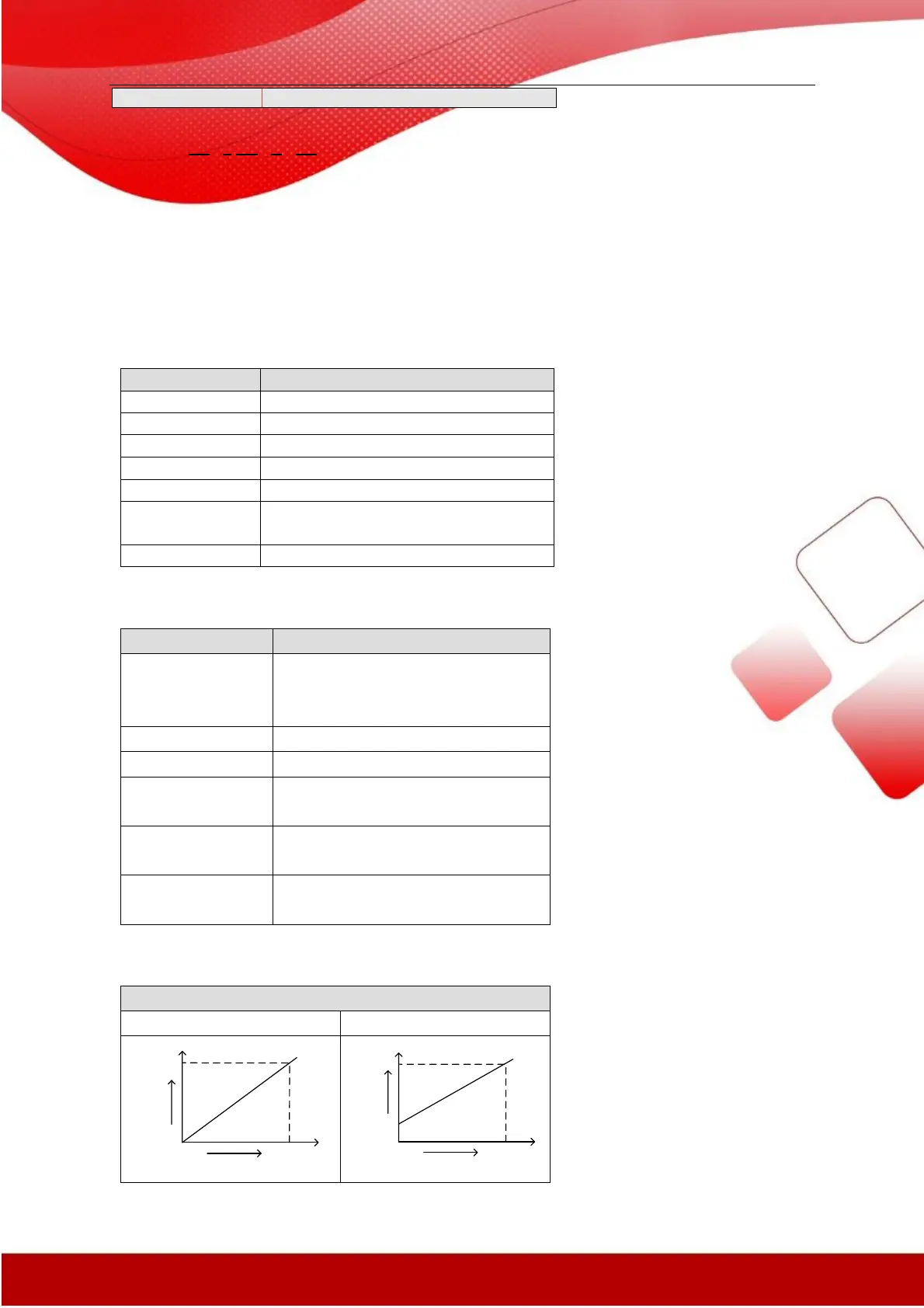

Product information
◼ Naming rule
XD– 4 DA - A - ED
① ② ③ ④ ⑤
① Product series XD: XD series extension module
② Analog output channel: 4: 4 channels
③ Analog output DA: analog output
④ I/O type A: current type for input and output
⑤ Module type ED: left extension ED module
◼ Basic parameters
XD series PLC can connect 1 extension ED module, the type is not limited.
Table 1: analog extension module XD-4DA-A-ED general specifications
Item
Specifications
Using
environment
No corrosive gas
Environment
temperature
0℃~60℃
Storage
temperature
-20~70℃
Environment
humidity
5~95%RH
Storage humidity
5~95%RH
Installation
Fix with M3 screw or install on the rail
DIN46277(width 35mm)
的导轨上
Dimension
100.0mm×18.0mm×90.0mm
Table 2: analog extension module XD-4DA-A-ED I/O precision
Item
Analog current output (mA)
Analog output
range
0~20, 4~20mA
External load resistor is less than
500Ω
Digital input range
10-bit binary number (0~1023)
Resolution
1/1023(10Bit)
integrated
precision
1%
Transformation
speed
2ms/1 channel
Power supply for
analog
DC24V±10%, 150mA
Table 3: analog extension module XD-4DA-A-ED AD transformation diagram
The relationship between analog output and digital input
0~20mA analog output
4~20mA analog output
20mA
+10230
analog
digital
20mA
4mA
+1023
0
analog
digital
