4
Note: when the input data is over K1023, DA transformed analog output will keep 20mA.

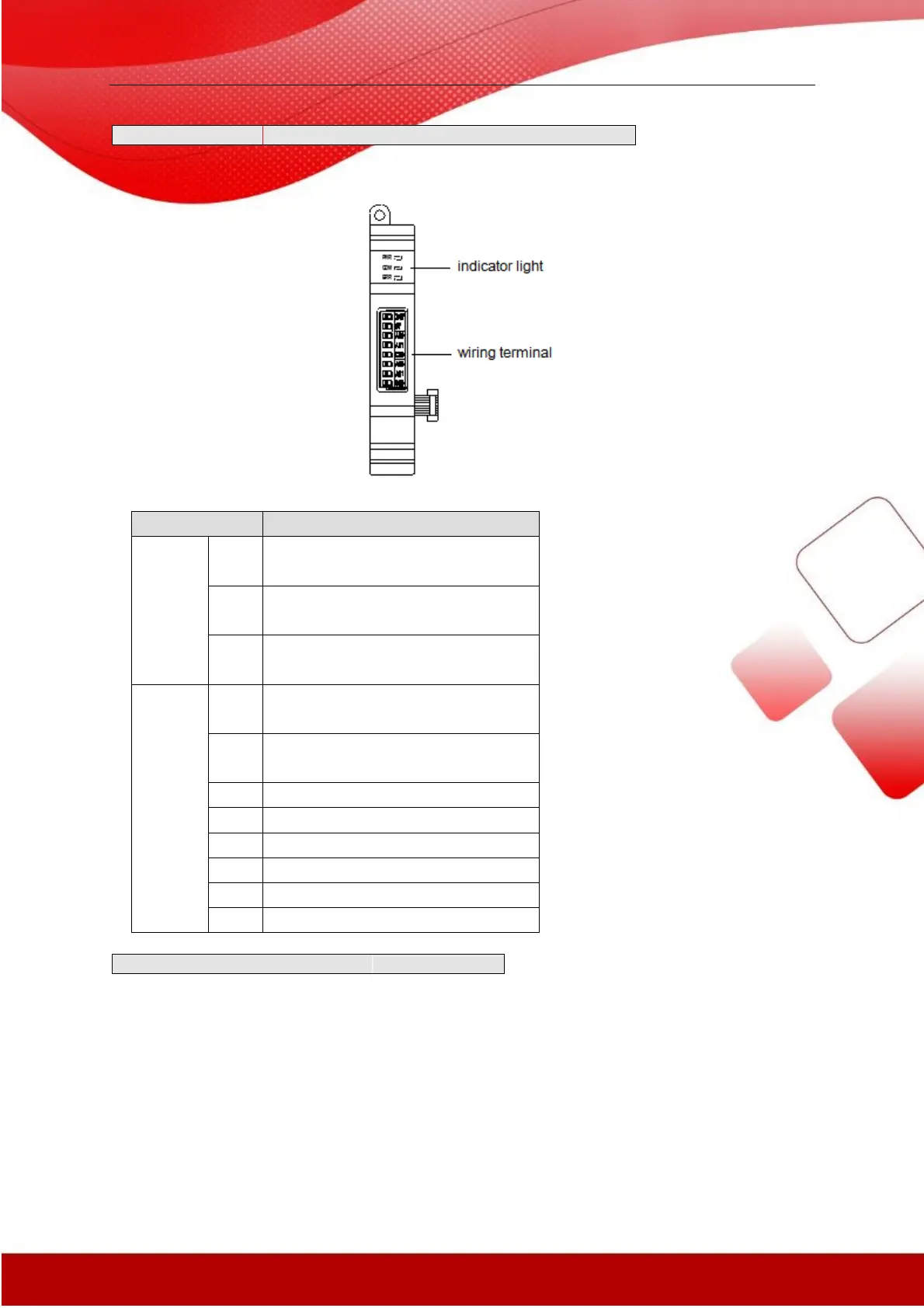

Product appearance
Here listed I/O terminal configurations of XD series extension module XD-4DA-A-ED.
◼ Product structure
Each part name:
Name
Function
Indicator
light
PWR
The LED lights when the ED module
has power supply
COM
The LED lights when the ED module
communication port works well
ERR
The LED lights when the ED module
has error
Wiring
terminal
24V
ED module external power supply 24V
+
0V
ED module external power supply 24V
-
AO0
Channel 1 analog output
AO1
Channel 2 analog output
CO0
AO0, AO1 ground
AO2
Channel 3 analog output
AO3
Channel 4 analog output
CO1
AO2, AO3 ground
Product dimension and installation
◼ Installation
Do not install the module in below environment:
• Direct sunlight
• Environment temperature out of range 0-50℃
• Environment humidity out of range 35%-85% RH
• Condensation as severe changes in temperature
• Corrosive gas and flammable gas
• Dust, iron filing, salt, fume
• Vibration and impact
• Spray oil, water and medicine
• Strong magnetic field and strong electric field

Xinje XD Series Specifications

General

Input Voltage	24V DC
Storage Temperature	-20°C to 70°C
Protection Class	IP20
Type	PLC
Series	XD
Programming Language	Ladder Logic, Instruction List
Communication Interface	RS232, RS485
Power Supply	24V DC
Digital Inputs	Available (number varies by model)
Digital Outputs	Available (number varies by model)
Analog Inputs	Available (number varies by model)
Analog Outputs	Available (number varies by model)
Output Type	Relay, Transistor
Number of Inputs	Varies by model (see Digital Inputs and Analog Inputs)
Number of Outputs	Varies by model (see Digital Outputs and Analog Outputs)
Operating Temperature	0°C to 50°C
Humidity	5% to 95% (non-condensing)
