Xinje XD Series Manual

5
XD series extension ED module can be installed in com3 port of XD series PLC.
Note: please cut off the power before operation!

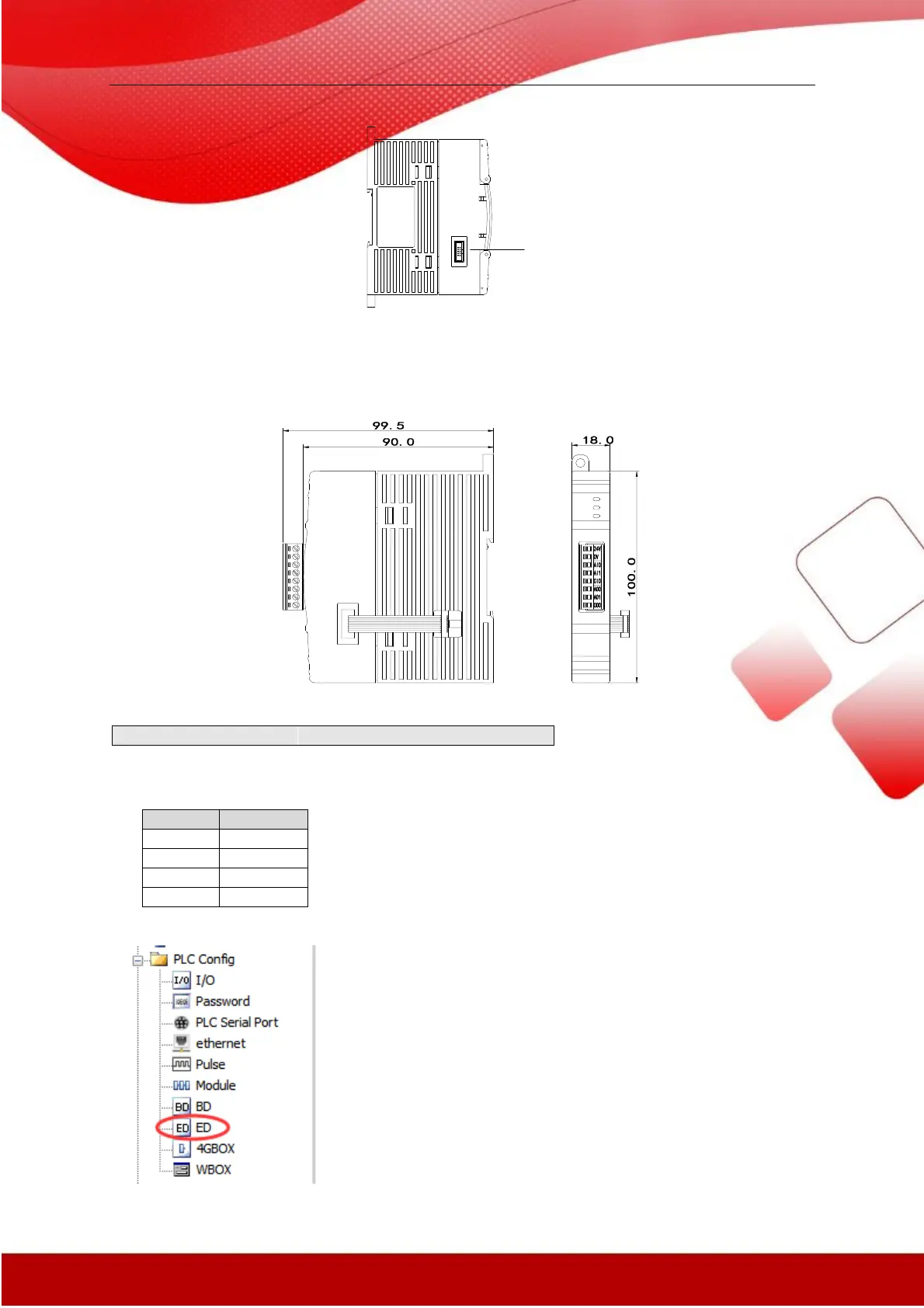

◼ Product dimension (Unit: mm)
XD series extension ED module dimension is shown as below:
Electric design reference
◼ I/O address
XD series extension ED module will not occupy I/O unit, the transformed value is stored in PLC register.
The following is the PLC register corresponding to each channel.
Channel
DA signal
0CH
QD30000
1CH
QD30001
2CH
QD30002
3CH
QD30003
◼ Working mode setting
TYPE:XDM-32T4-E
DATE:20120701
SN:201207011525
Xinje Electronic Co.,Ltd
COM3
PWR
COM
ERR

Xinje XD Series Specifications

General

Input Voltage	24V DC
Storage Temperature	-20°C to 70°C
Protection Class	IP20
Type	PLC
Series	XD
Programming Language	Ladder Logic, Instruction List
Communication Interface	RS232, RS485
Power Supply	24V DC
Digital Inputs	Available (number varies by model)
Digital Outputs	Available (number varies by model)
Analog Inputs	Available (number varies by model)
Analog Outputs	Available (number varies by model)
Output Type	Relay, Transistor
Number of Inputs	Varies by model (see Digital Inputs and Analog Inputs)
Number of Outputs	Varies by model (see Digital Outputs and Analog Outputs)
Operating Temperature	0°C to 50°C
Humidity	5% to 95% (non-condensing)
