Electronicchartsystem
positive,Pin2isnegative)!

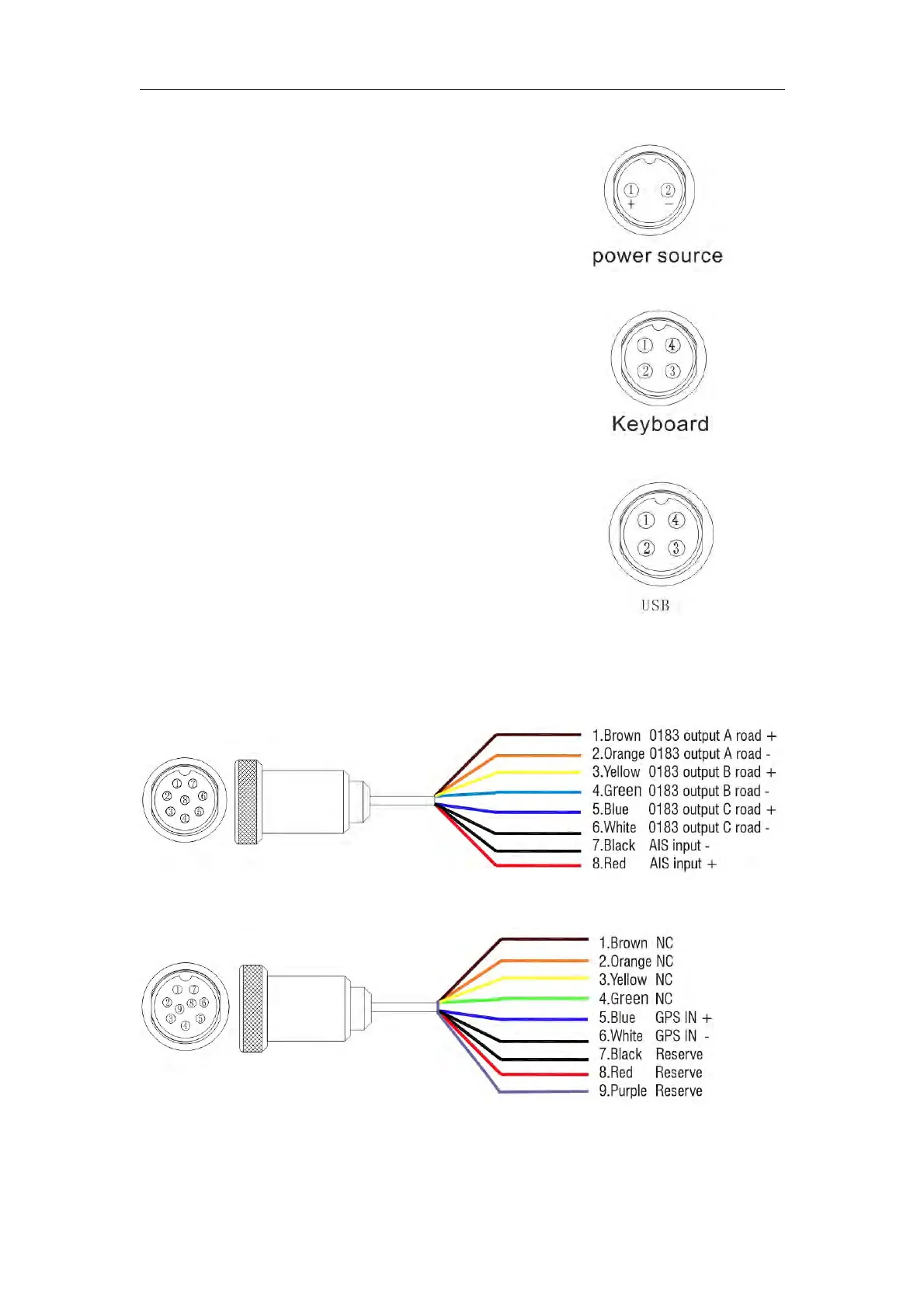

PowerInterfacedefinitionsasshownright:
1. Thepowerofpositiveelectrode
2. Thepowerofnegativeelectrode
Thekeyboardinterfacedefinitionsasshownright:
1.VCC
2.KB—DATA
3.GND
4.KB—CLK
USB interfacedefinitionsasshownright：
1.VCC
2.DATA+
3.GND
4.DATA-
Data1asshownbelow:
Data2asshownbelow:
Data3asshownbelow:
