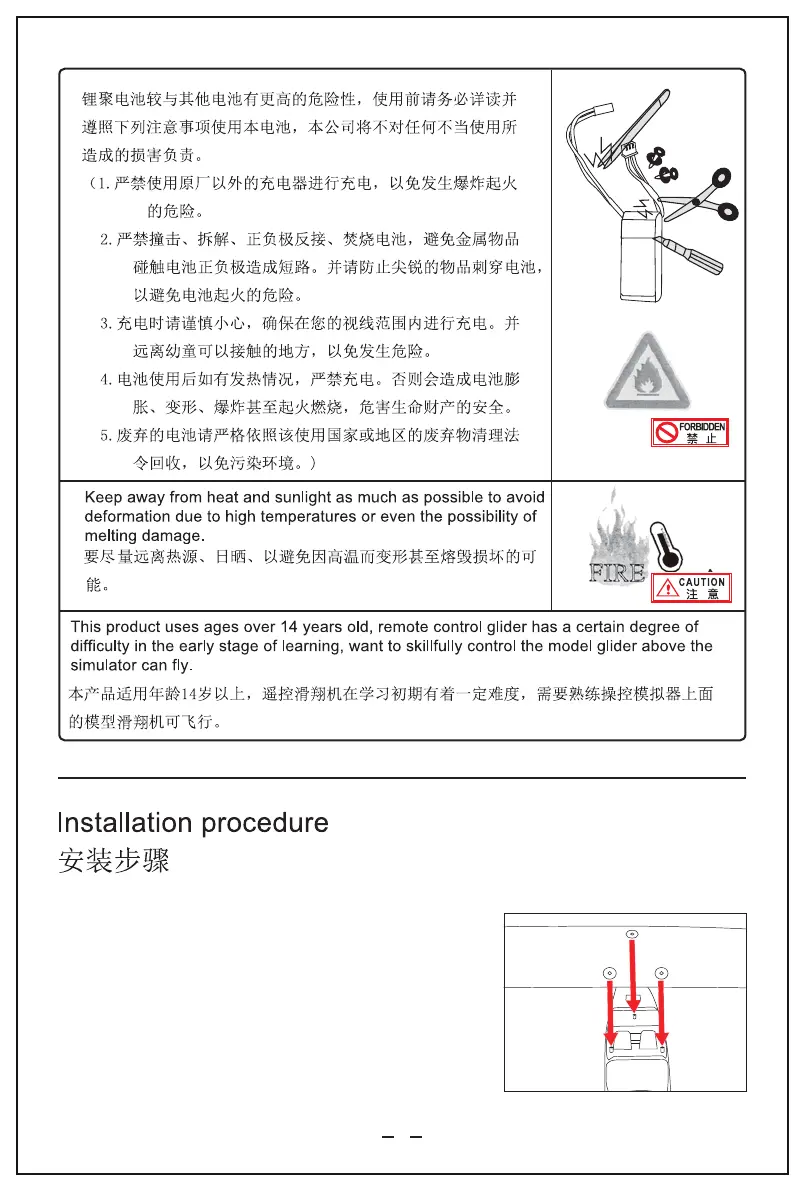

1.Install the upper wing
1.安装上机翼
Align the upper wing with the three locating posts on
the upper fuselage and install them in place, and then
lock three 1.7 * 8PB screws with a cross screwdriver.
将上机翼对准上机身三个定位柱装到位,然后用十字螺丝
刀锁上3颗1.7*8PB螺丝。
