4. Install the left and right wing trim
4.安装机翼左右装饰件
5. Install the front and rear landing gear
5.安装前后起落架

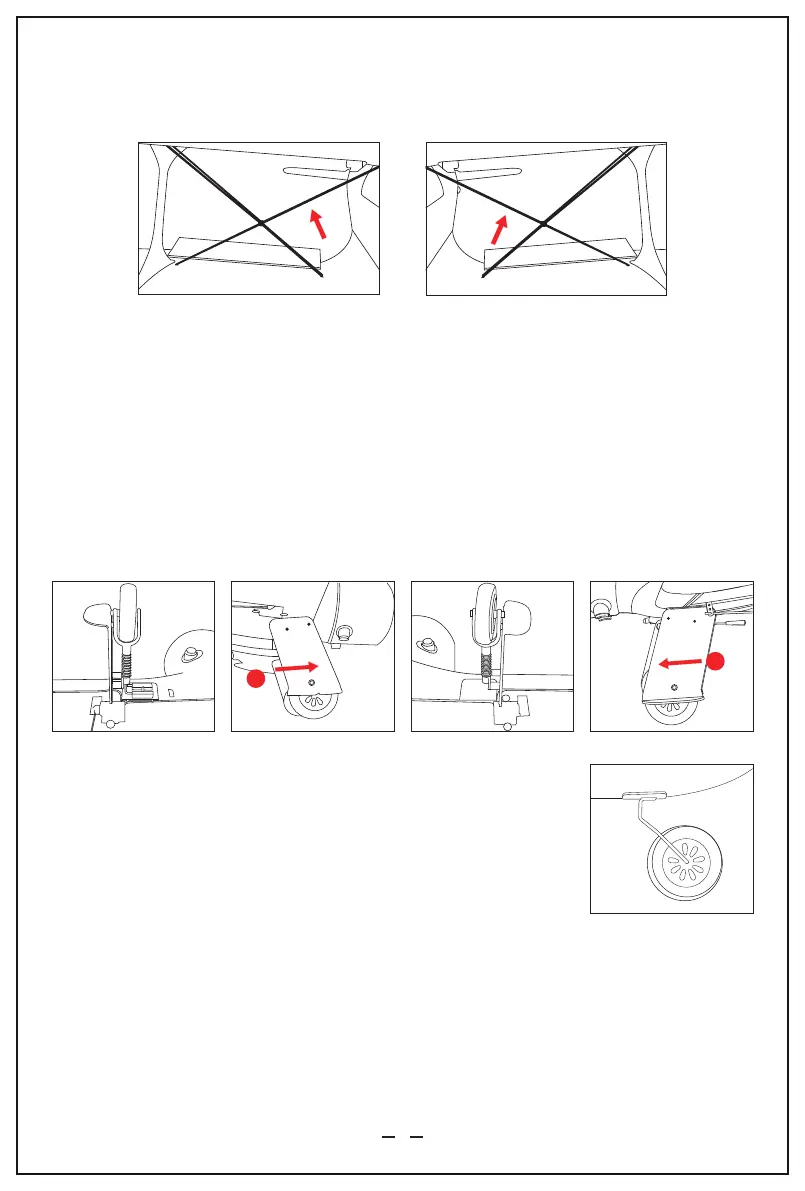

Figure 1. Install the left trim in the middle of the left upper and lower wings as shown in thefigure, and
align the upper and lower hole positions. The long column is installed upwards and towards the fuselage.
Figure 2. Install the right trim in the middle of the rightupper and lower wings as shown in the figure, and
align the upper and lower hole positions. The long column is installed upwards and towards the fuselage.
图1.将左装饰件按图所示装到左边上下机翼中间，对好上下孔位装好。长的柱子朝上、朝机身安装。
图2.将右装饰件按图所示装到右边上下机翼中间，对好上下孔位装好。长的柱子朝上、朝机身安装。
Figure 1. Install the right landing gear into the right landing gear slotof the
wing as shown in the figure.
Figure 2. Note that there is R letter on the landing gear baffle, with the baffle
facing outward andthe oblique angle facing the fuselage head.
Figure 3. Install the left landing gear into the left landing gear slot of the wing
as shown in the figure.
Figure 4. Note that there is an L letter on the landing gear baffle, with the baffle
facing outward and the oblique angle facing the fuselage head.
Figure 5. Install the rear landing gear into the rubber clip slot at the rear of the fuselage, and pay attention to
the steel wire bevel facing back.
图1.将右起落架按图所示装到机翼右边起落架卡槽。
图2.注意起落架挡板上有R字母，挡板朝外、斜角朝机身头。
图3.将左起落架按图所示装到机翼左边起落架卡槽。
图4.注意起落架挡板上有L字母，挡板朝外、斜角朝机身头部。
图5.将后起落架装到机身尾部胶件卡槽，注意钢丝斜角朝后。
图1（ Figure 1）
图2（ Figure 2）
图1（ Figure 1） 图2（ Figure 2）
R
图3（Figure 3） 图4（Figure 4）
图5（Figure 5）
L
