XO CARE A/S YB-672 Ver 1.10
Page 4 of 6

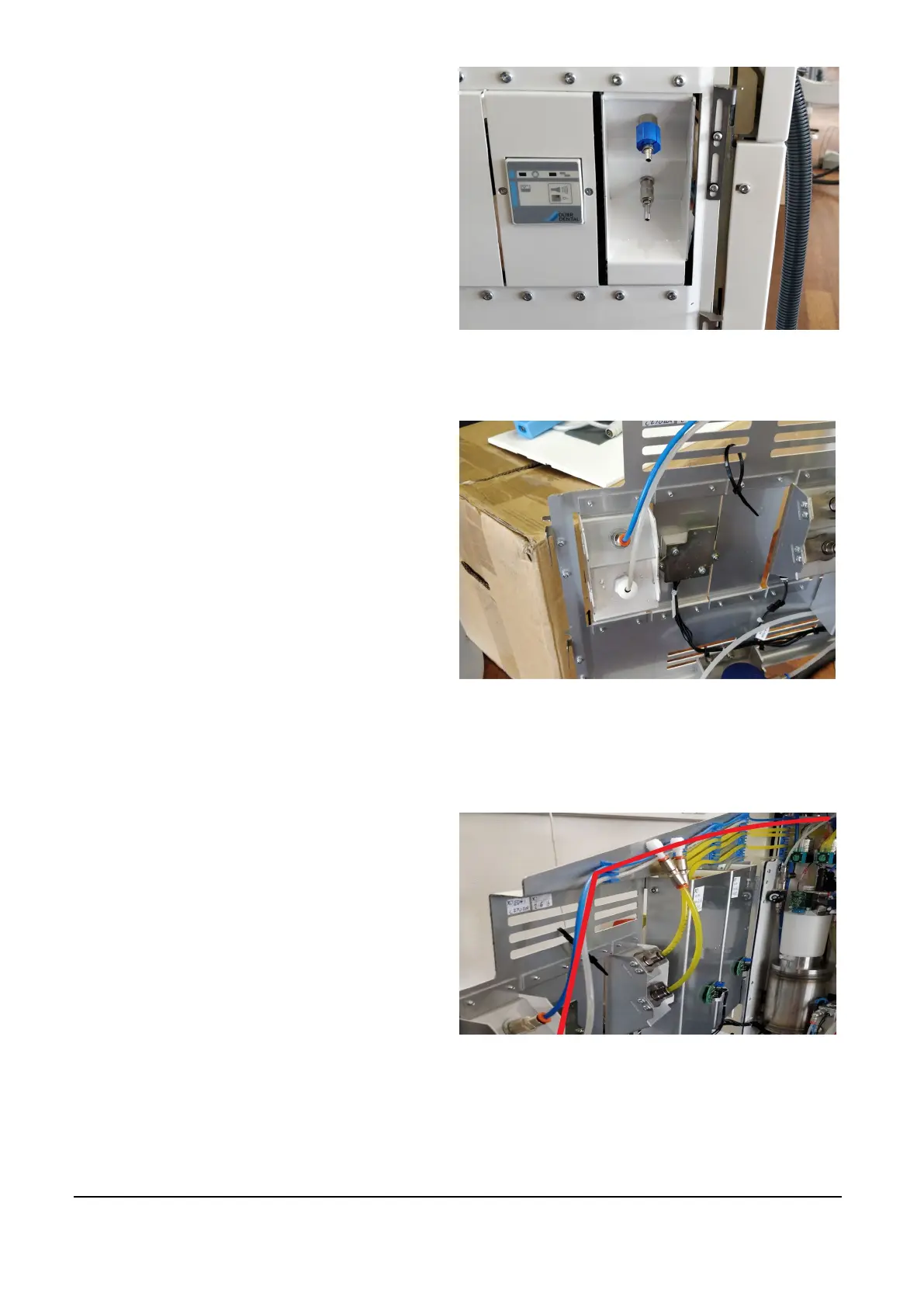

Fit the new panel with the quick
connections on the service hatch.
Connect the supplied 4mm air and
water hose to the quick connectors.
Top (Blue): Air
Bottom (White): Water
Route the 4mm water and air hose as
illustrated.
