INSTALLING THE XOUIM1565SP with DRAIN PUMP.
Position the ice maker in front of the opening.
Level the unit using the leveling legs.
Wash and flush the water supply tube and connect the unit to the cold water isolation valve.
Cut the 3/8” diameter drain hose to the required length. Immerse the hose in warm water to make
installation easie
(9’ of 3/8” ID drain hose is included with pump models)
r, then connect the drain hose to the drain using hose clamps.
IMPORTANT: Check local codes to determine if an air gap is required between the drain and the pump.
Turn the water supply on and check to ensure there are no leaks.
If there are no leaks, plug the unit into the electrical outlet.
Fill the ice container with clean tap water approximately 3/4 full. The drain pump should turn on and pump
the water out. Check again for leakage.
Press the switch to the “ICE” position. The compressor will run approximately 3 - 5 minutes.
Fill the ice container to 3/4 full once more. Block the drain tube while the pump is running.
The pump should continue to run.
Slide the unit back into it’s final position and re-check to ensure it is level.
REMEMBER to adhere to all local building codes and regulations
with drain pump

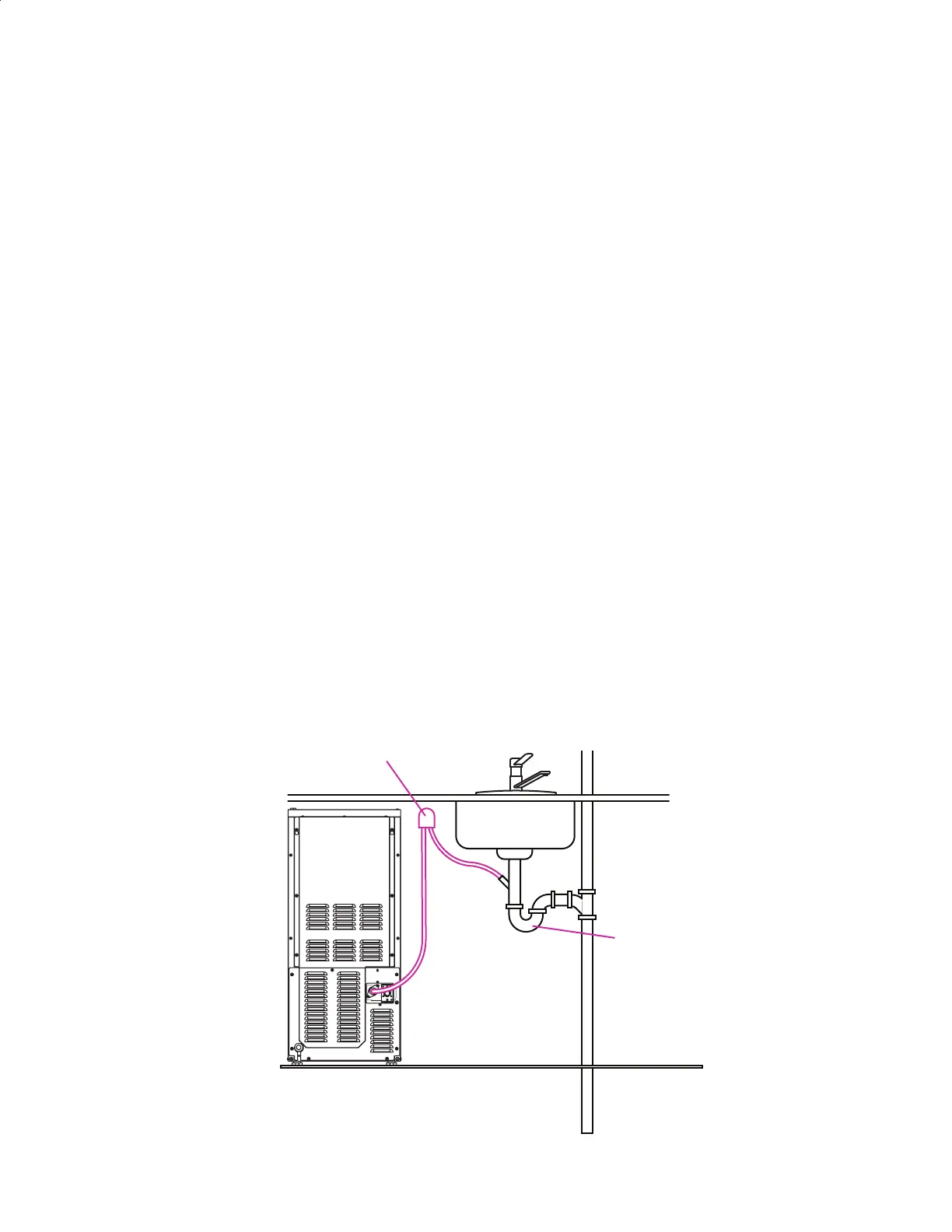

DRAIN VENT
THE DRAIN POINT
MAY BE HIGHER
THAN THE DRAIN
OUTLET OF THE
ICE MAKER
SANITARY TRAP
AIR GAP DEVICE
