Connection schedule – Cinch multicore
11
EN

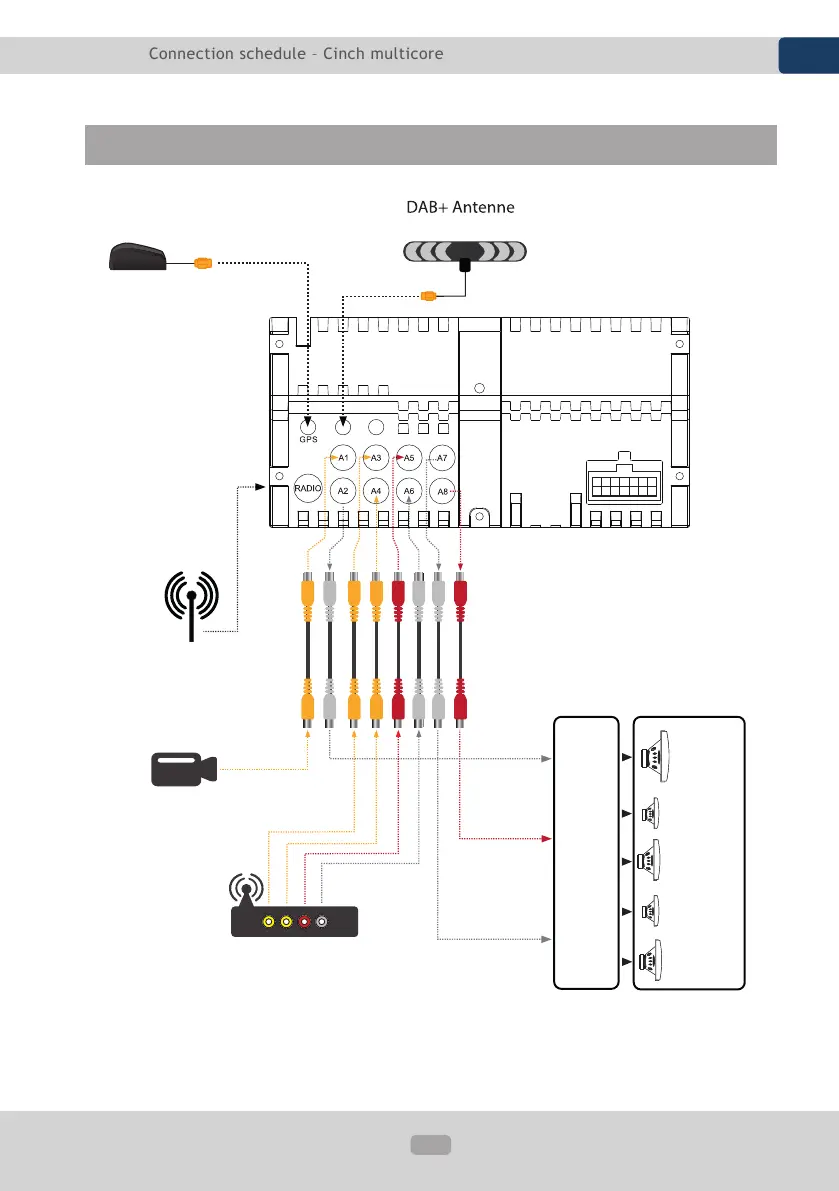

Connection schedule – Cinch multicore
Radio aerial
passiv
Rear view camera
(optional)
Subwoofer
Audio-Out right
Audio-Out left
AUX-IN Audio
AUX-IN Video
GPS aerial
e.g.
amplifer
(optional)
Subwoofer
(optional)
active amplied
Rear left
Front right
Front left
Rear right
External audio-/video source
e.g. DVB-T receiver (optional),
MP3- or video player (optional)
Speakers
(only for models with DAB+ radio)
