Xray GTX8 User Manual

42
#104005
HUDY AIR VAC - VACUUM PUMP
- 1/8 OFF-ROAD
#358163
GT SHOCK SHAFT 43MM (2)
BAG
11
352460 PIVOT BALL 5.8 - V3 (10)
358018 COMPOSITE SET OF SHIMS FOR SHOCKS - (2)
358020 COMPOSITE SHOCK PARTS
358032 SHOCK PISTON SET 8-HOLE (1.2; 1.3) 10-H. (1.1MM) - DELRIN - V2
358033 COMPOSITE SHOCK 6-HOLE PISTON SET (1.2; 1.3; 1.4MM) - DELRIN - V2
358040 HARDENED SHOCK SHIMS (4)
358041 STEEL SHOCK BUSHING (2)
358043 COMPOSITE SHOCK BUSHING & SHIM (2+2)
358055 ALU SHOCK CAP NUT - BLACK COATED (2)
358087-S SHOCK RUBBER MEMBRANE CELL - SOFT (4)
358130 GT ALU SHOCK BODY - V2 (2)
358142 ALU SHOCK BODY NUT FOR SHOCK BOOT (2)

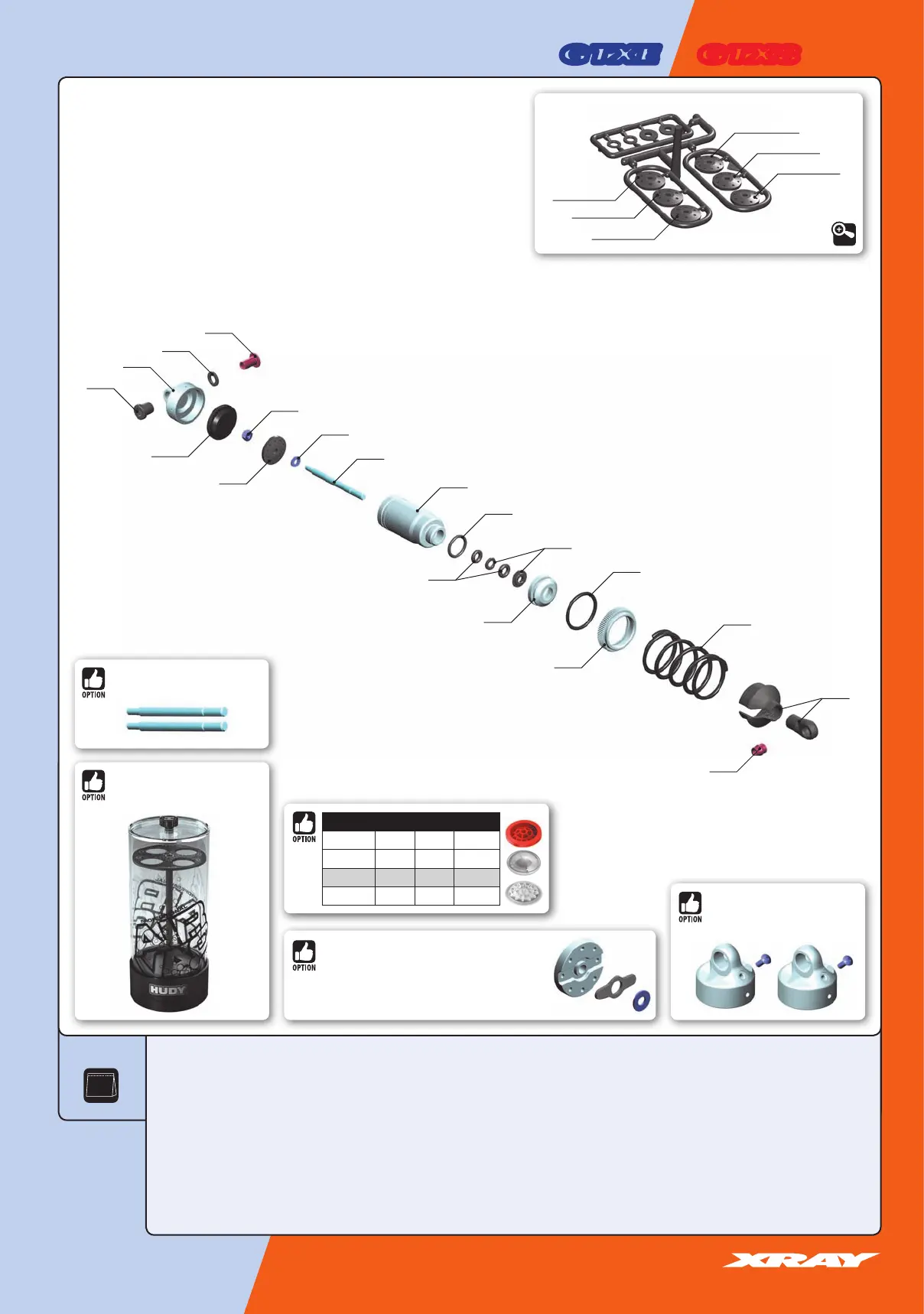

11. SHOCK ABSORBERS
358150 ALU SHOCK BODY ADJ. NUT (2)
358166 GT SHOCK SHAFT 46MM (2)
358196 XRAY GT SPRING - 3 DOTS (2)
960026 NUT M2.5 - SHORT (10)
970100 O-RING 10 x 1.5 (10)
970180 O-RING 18 x 1.8 (10)
971034 SILICONE O-RING 3.5x2 (10)
358041
358166
352460
358043
358043
358087-S
960026
358040
358130
970100
971034
970180
358018
358142
358150
358196
358055
358032
358033
358020
10 holes/ø1.1mm
6 holes/ø1.2mm
8 holes/ø1.2mm
6 holes/ø1.4mm
8 holes/ø1.3mm
6 holes/ø1.3mm
DETAIL
PISTONS
GTX8GTXE
#358027 PISTON 5-HOLE (1.5mm) & 2-HOLE (1.0mm) (4)
#358028 PISTON 6-HOLE (1.3mm) & 2-HOLE (1.1mm) (4)
#308029 PISTON 6-HOLE (1.4mm) & 2-HOLE (1.1mm) (4)
#358030 PISTON 8-HOLE (1.2mm) & 2-HOLE (1.2mm) (4)
#358031 PISTON 8-HOLE (1.3mm) & 2-HOLE (1.2mm) (4)
#358054
XB8 ALU SHOCK CAP NUT WITH
VENT HOLE - BLACK COATED (2)
SHOCK RUBBER MEMBRANE (4)
#358084 RIBBED MEDIUM OPTION
#358084-S BRIBBED SOFT OPTION
#358087-S CELL SOFT INCLUDED
#358087-M CELL MEDIUM OPTION

Xray GTX8 Specifications

General

Width	300mm
Weight	~2080g
Drive Type	4WD
Chassis Material	Aluminum
Terrain	Off-Road
Remote Control Frequency	2.4GHz
Body Material	Polycarbonate
Tire Material	Rubber
Class	Off-road
