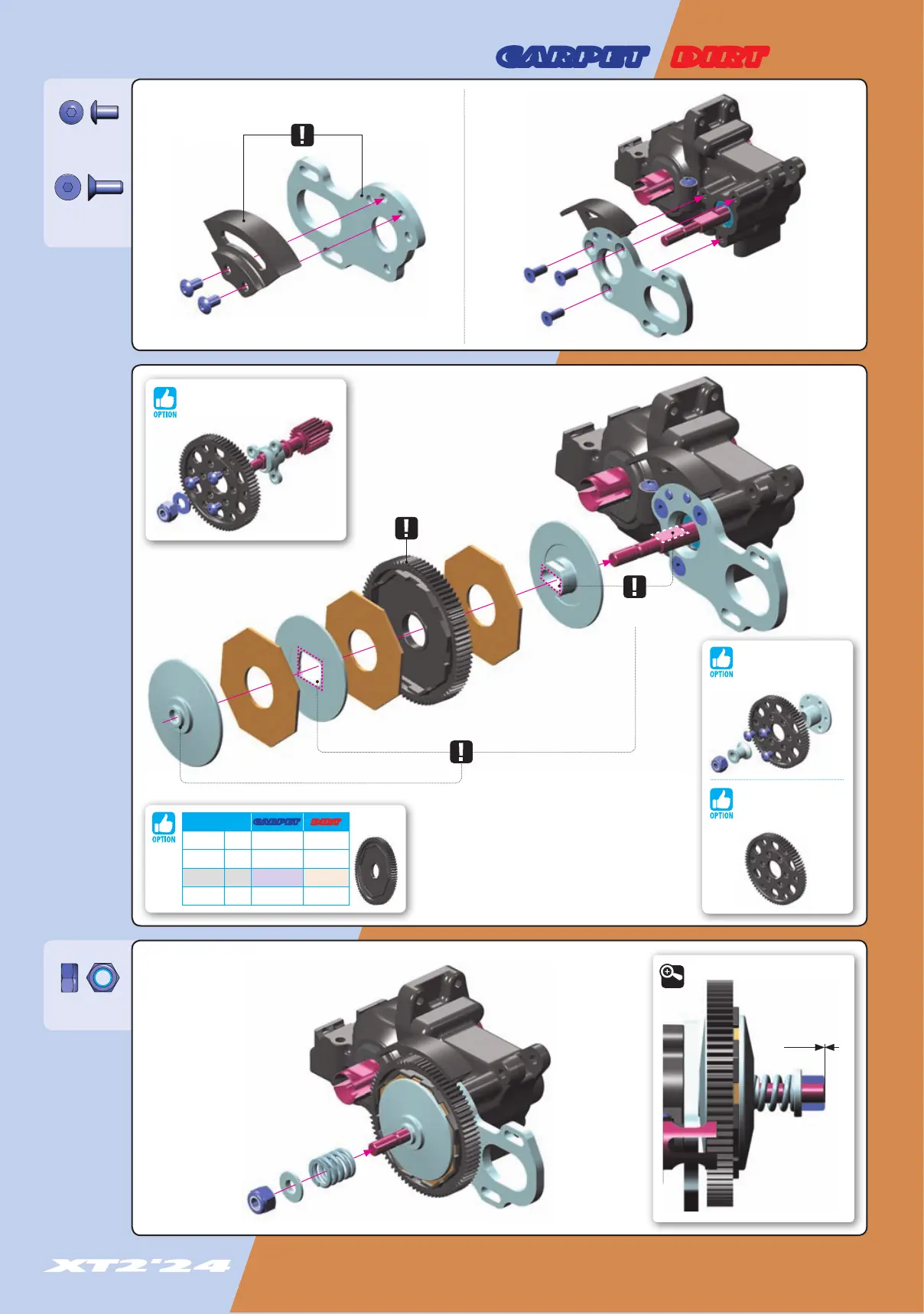

2. REAR TRANSMISSION
NOTE ORIENTATION
13
3x5mm
3x8mm
960040
N M4
NOTE
ORIENTATION
NOTE
ORIENTATION
NOTE
ORIENTATION
DETAIL
INITIAL SETTING
Flush with end
of shaft
902305
SH M3x5
903308
SFH M3x8
DIRTCARPET
2x
3x
1x
#324102
SOLID AXLE - LCG - LIGHTWEIGHT - SET
#324101
SLIPPER ELIMINATOR - SET
(69T / 48 SPUR GEAR)
#325872
SLIPPER ELIMINATOR
SPUR GEAR 72T / 48
SPUR GEARS
#365872 75T OPTION OPTION
#365875 75T OPTION OPTION
#365878 78T INCLUDED INCLUDED
#365881 81T OPTION OPTION
DIRT
CARPET
