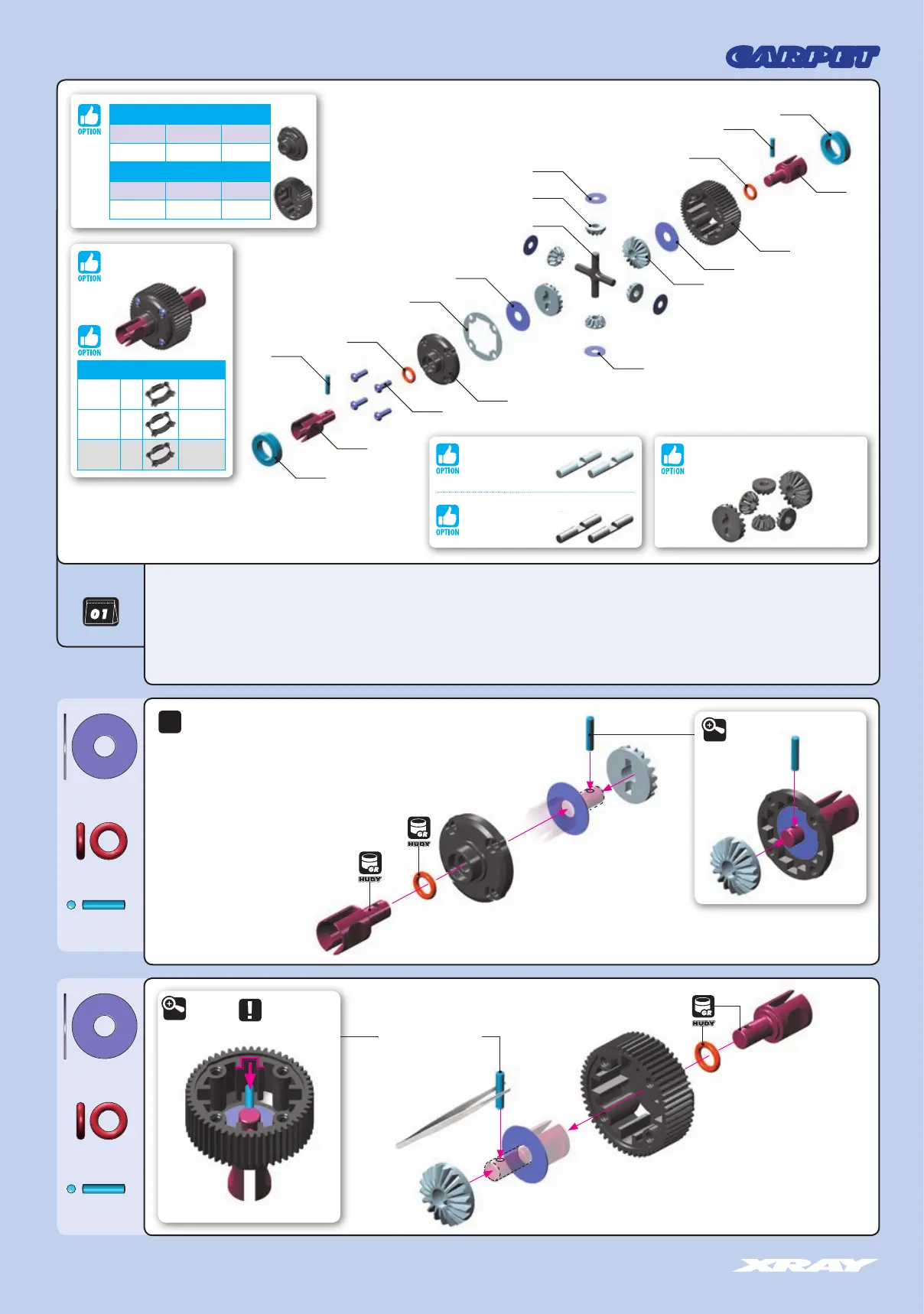

1. GEAR DIFFERENTIAL
2x
Use tweezer to insert pin
➊
➊
➋
➌
➍
304980 COMPOSITE GEAR DIFF CROSS PIN
324990 DIFF GASKET (4)
324903 GEAR DIFFERENTIAL - LCG - NARROW - SET
324912 COMPOSITE GEAR DIFFERENTIAL COVER - LCG - NARROW
324955 COMPOSITE GEAR DIFFERENTIAL CASE WITH PULLEY 53T - LCG - NARROW
324963 GEAR DIFF OUTDRIVE ADAPTER - LCG - FOR NARROW DIFF - HSS™ (2)
335030 STEEL DIFF BEVEL & SATELLITE GEARS (2+4)
902258 HEX SCREW SH M2.5x8 (10)
941014 BALL-BEARING 10x15x4 RUBBER SEALED - GREASE (2)
964031 WASHER S 3.5x10x0.2 (10)
964050 WASHER S 5x15x0.3 (10)
971050 SILICONE O-RING 5x1.5 (10)
981210 PIN 2x10 (10)
BAG
324963
324955
964050
964031
324912
902258
324963
335030
941014
981210
971050
971050
964031
964050
324990
981210
335030
304980
971050
O 5x1.5
971050
O 5x1.5
964050
S 5x15x0.3
964050
S 5x15x0.3
981210
P 2x10
981210
P 2x10
NOTE ORIENTATION
DETAIL
STEP
➍
➎
➍➎
DETAIL
➎
➋
➌
➍
➎
CARPET
941014
#325101 XRAY XB2 ACTIVE
DIFF - NARROW - SET
ACTIVE DIFF SEGMENTS
#325123 60º
OPTION
#325125 90º
OPTION
#325127 120º
INCLUDED
1x
#304932
GRAPHITE GEAR DIFF BEVEL & SATELLITE
GEARS (2+4)
#335081
ALU DIFFERENTIAL PIN
HARDCOATED (2)
#335080
STEEL DIFFERENTIAL PIN
HARDCOATED (2)
GEAR DIFF. CASES
#324912 HARD INCLUDED
#324912-G GRAPHITE OPTION
GEAR DIFF. PULLEYS
#324955 HARD INCLUDED
#324955-G GRAPHITE OPTION
1x
1x
1x
1x
1x
