ERG160 Rower
9

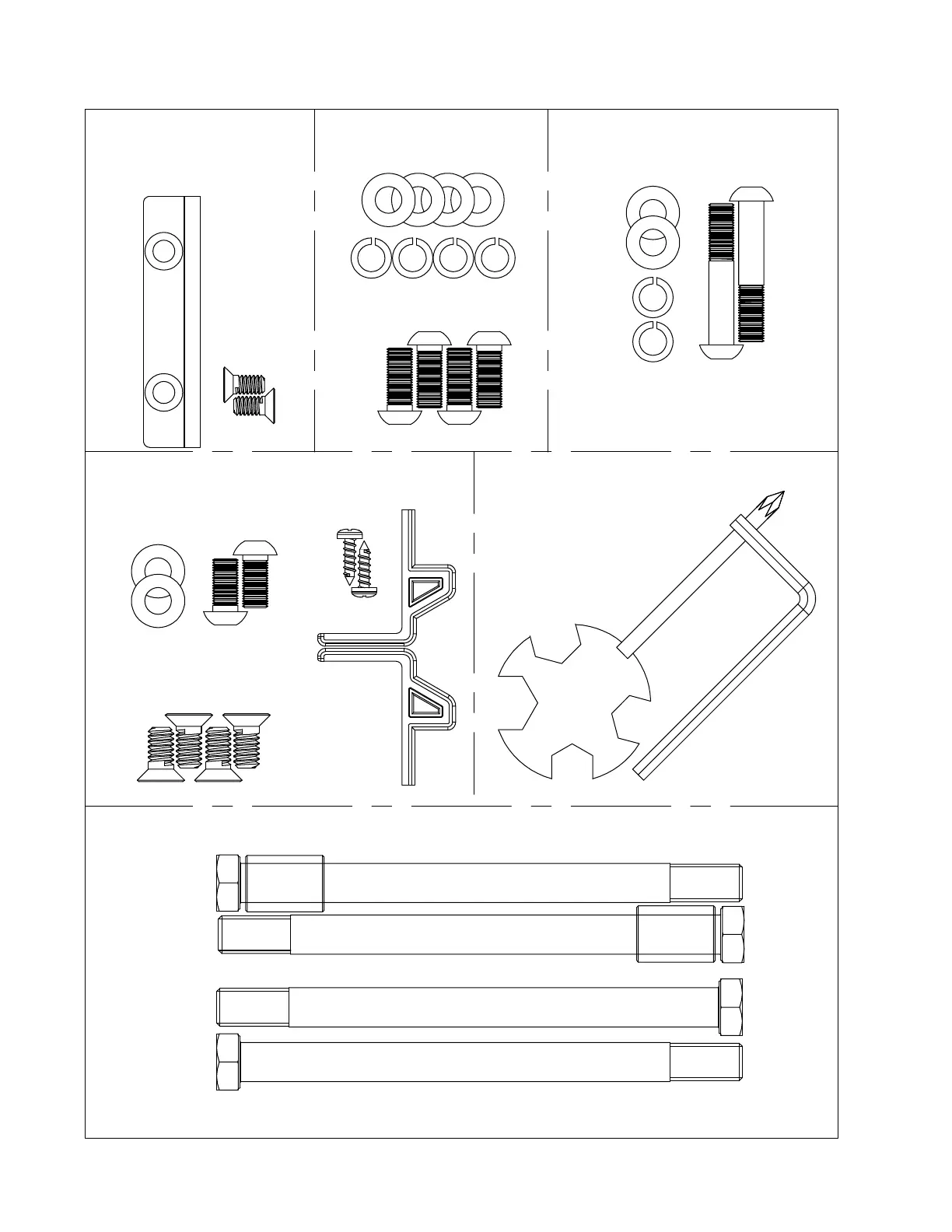

ERG160 Assembly Pack Checklist
STEP-1 STEP-3
#52 ID8.5 4PCS
#55 OD16*ID8.5*1.5 4PCS
#81 M8*20 4PCS
#44 OD16×ID8.5×1.5 2PCS
#92 M8*15 4PCS
STEP-5
#64 Φ18*Φ13*26 2PCS
#50 M12*160 4pcs
#34 1PC
#62 2PCS
# 100 S13-14-19 1PC
TOOL
# 99 S5 1PCS
#55 OD16*ID8.5*1.5 2PCS
STEP-4
#52 ID8.5 2PCS
# 45 M8*45 2PCS
STEP-2
# 46 M8*15 2PCS
#11 1PC
#15 1PC
#59 2PCS
